> Passive elements>Switches/keys>Rocker switch>Shin Chin rocker switches, round, for Ø 20.2mm panel cut-out, 1-pole, R13-112 series>WNX 36

Manufacturers

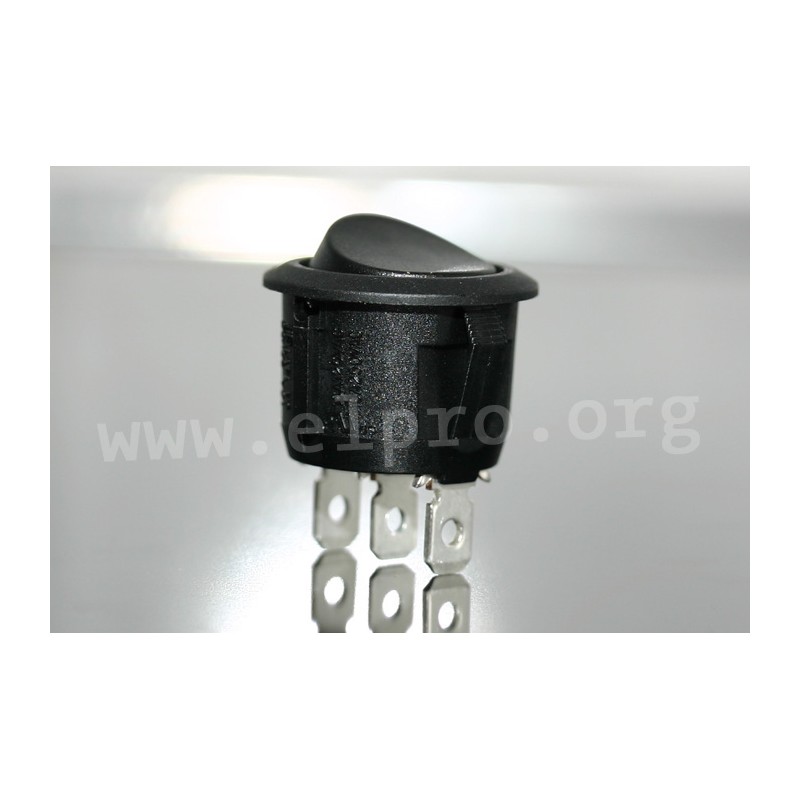

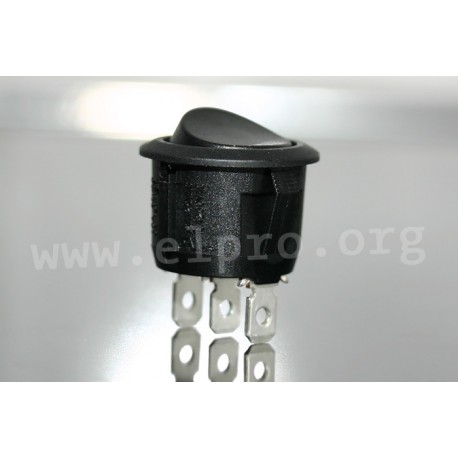

WNX 36

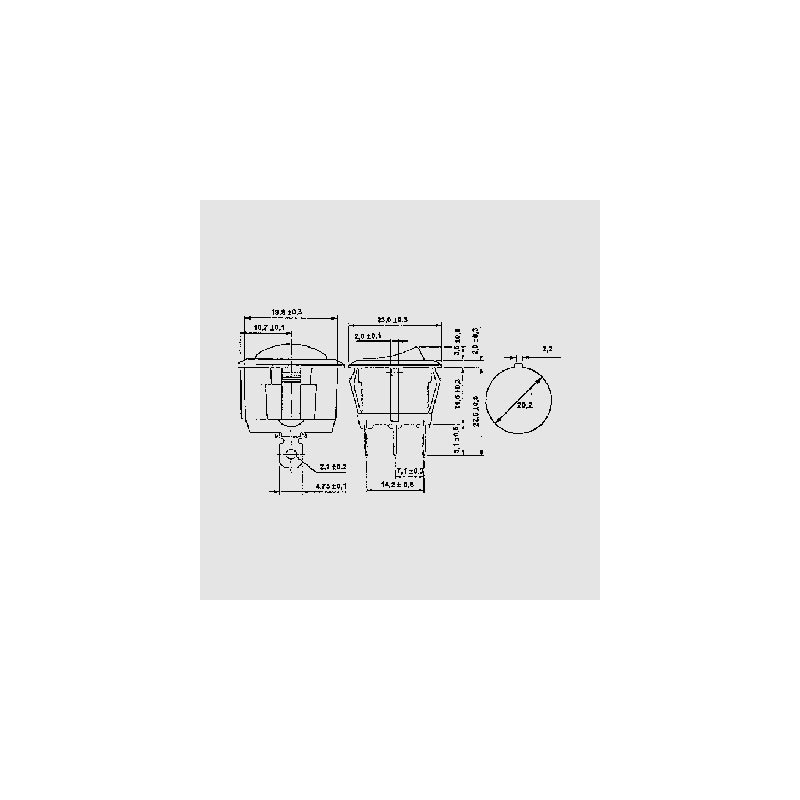

for Ø20.2mm panel cutout

* operating voltage, max.: 250V AC
* switching current, max.: 10A (4)/250V AC
* insulation resistance (500V DC): 100MΩ
* LED Voltage range
red/green: 2...2.2V DC
blue: 3.6...4V DC
* materials
shell and rocker: nylon 6.6/UL94-V2
illuminated rocker: polycarbonate
terminals: silver-plated
* connector: 4.8x0.8mm
WNX 36

WNX 36

13386 WNX 36 R13112CAAA R13112CAAA for Ø20.2mm panel cutout. * operating voltage, max.: 250V AC* switching current, max.: 10A (4)/250V AC* insulation resistance (500V DC): 100MΩ* LED Voltage rangered/green: 2...2.2V DCblue: 3.6...4V DC* materialsshell and rocker: nylon 6.6/UL94-V2illuminated rocker: polycarbonateterminals: silver-plated* connector: 4.8x0.8mm

Specifications

manufacturer
Manufacturer's name R13112CAAA
Switch positions ON - ON
Case colour black
Rocker black
Illuminated -
Rocker imprint -
Switching current [A] 6
Panel cut-out [mm] Ø 20,2

Unit price

0,851 €

Stock: 266
Next incoming goods:
CW 11/2027
1000 units

Further delivery:
CW 12/2027

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
