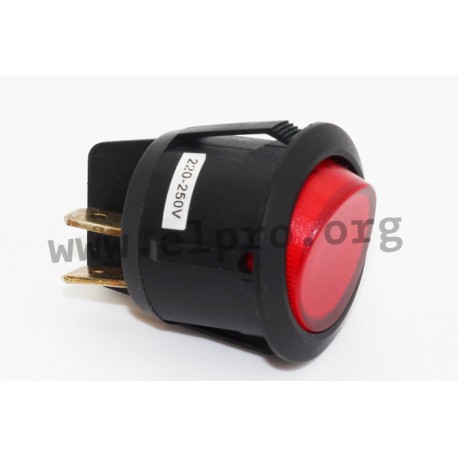

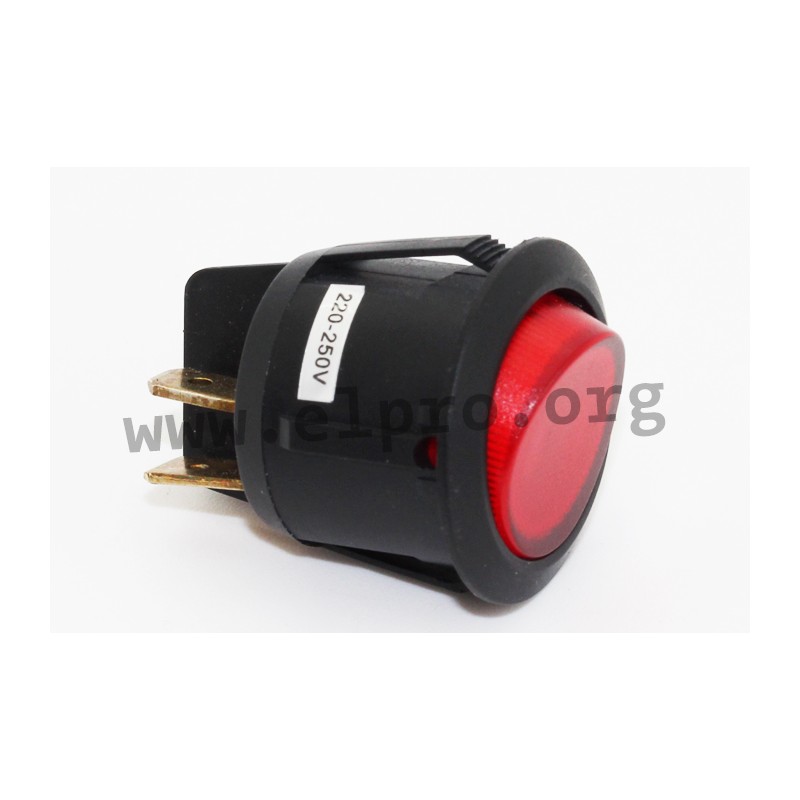

WNX 48

for Ø20.2mm panel cutout, 2-pole version

* operating voltage max.: 250V AC
* switching current, max.: 10A/250V AC
* switching current at inductive load, max.: 4A
* insulation resistance (500V DC): >100MΩ
* materials
shell and rocker: nylon 6.6/UL94V2
illuminated rocker: polycarbonate
terminals: silver-plated
* connector: 4.8x0.8mm
WNX 48

WNX 48

13399 WNX 48 R13-244B-02-BR R13-244B-02-BR for Ø20.2mm panel cutout, 2-pole version. * operating voltage max.: 250V AC* switching current, max.: 10A/250V AC* switching current at inductive load, max.: 4A* insulation resistance (500V DC): >100MΩ* materialsshell and rocker: nylon 6.6/UL94V2illuminated rocker: polycarbonateterminals: silver-plated* connector: 4.8x0.8mm

Specifications

manufacturer
Manufacturer's name R13-244B-02-BR
Switch positions 2x ON-OFF
Case colour black
Rocker red
Illuminated 240 V
Rocker imprint -
Switching current [A] 10
Panel cut-out [mm] Ø 20,2

Unit price

1,55 €

Stock: 190
Next incoming goods:
CW 21/2024
200 units

Further delivery:
CW 36/2024

Minimum order quantity 10 units or
multiples of 10.
