KSV T 3,15 A

Siba SMD fuse series 160000

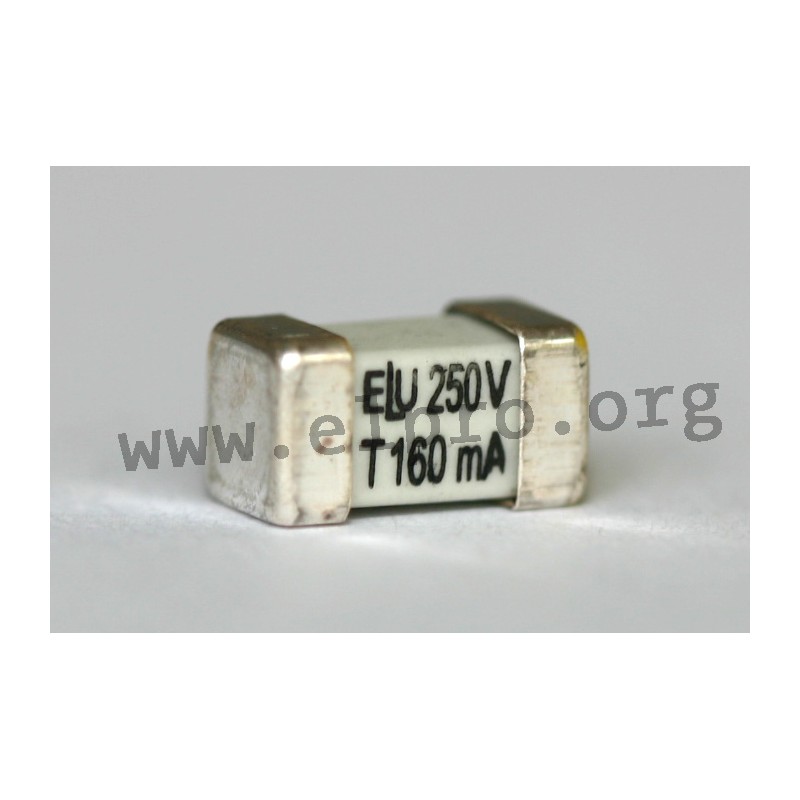

SMD fuses in a 8x4,5x4,5mm ceramic housing with silver-plated brass contacts. These fuses have a time lag characteristic and are suitable for direct PCB mounting. They have a rated voltage of 250V and a soldering heat resistance of 260°C for 10 seconds. We offer various types of this Siba series.

  • rated voltage: 250V
  • characteristic: time lag

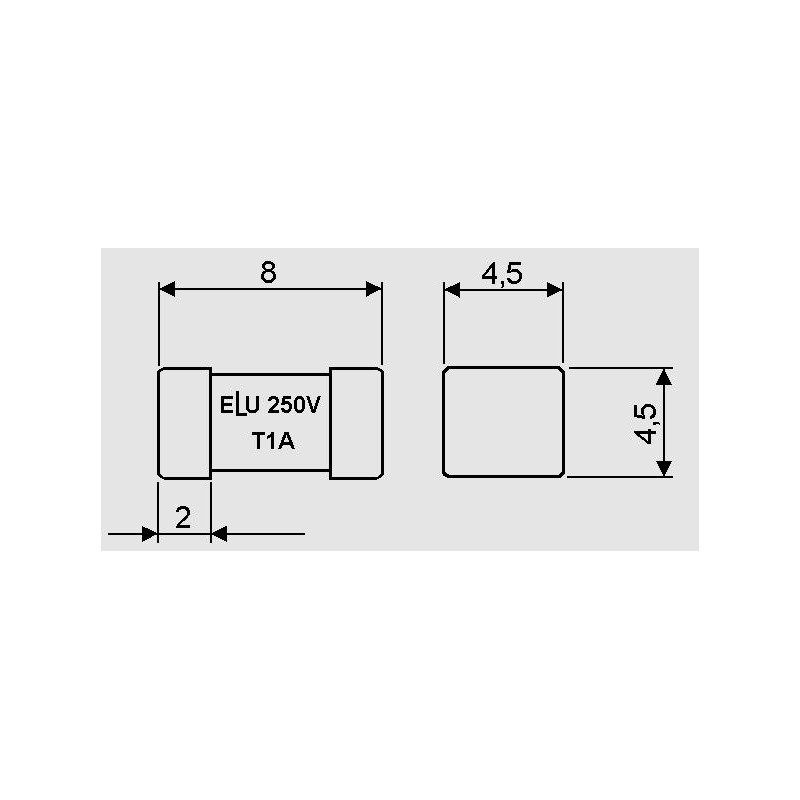

  • housing: 8x4,5x4,5
  • taped
KSV T 0,16 A

KSV T 3,15 A

4156 KSV T 3,15 A 160000.3,15GT 160000.3,15GT Siba SMD fuse series 160000. SMD fuses in a 8x4,5x4,5mm ceramic housing with silver-plated brass contacts. These fuses have a time lag characteristic and are suitable for direct PCB mounting. They have a rated voltage of 250V and a soldering heat resistance of 260°C for 10 seconds. We offer various types of this Siba series. rated voltage: 250V characteristic: time lag housing: 8x4,5x4,5 taped

Specifications

manufacturer
Manufacturer's name 160000.3,15GT
Design time lag
Rated current [mA] 3150
Data Sheet

Unit price

0,472 €

Stock: 2500
Further delivery:
CW 24/2024

Minimum order quantity 100 units or
multiples of 100.
