KSN T 1 A

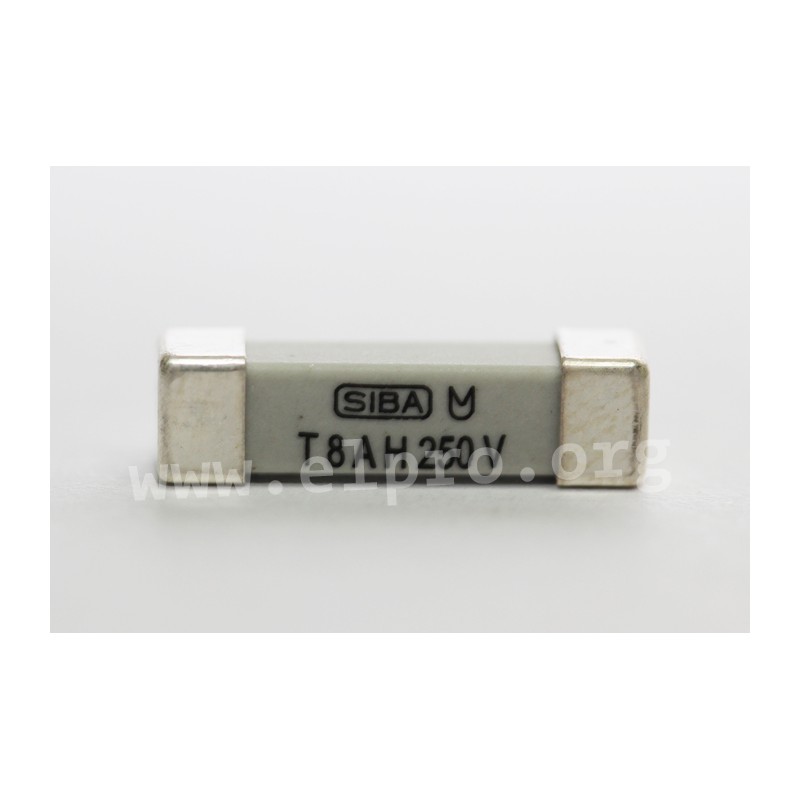

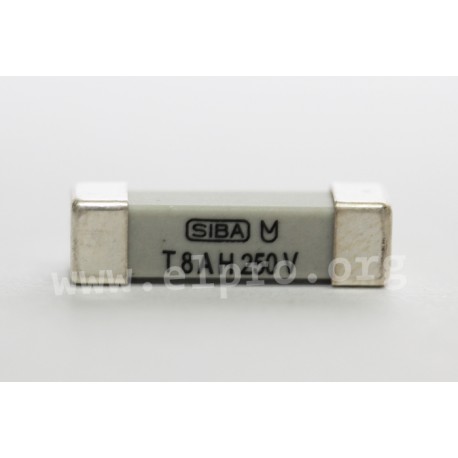

Siba SMD fuse series 160016

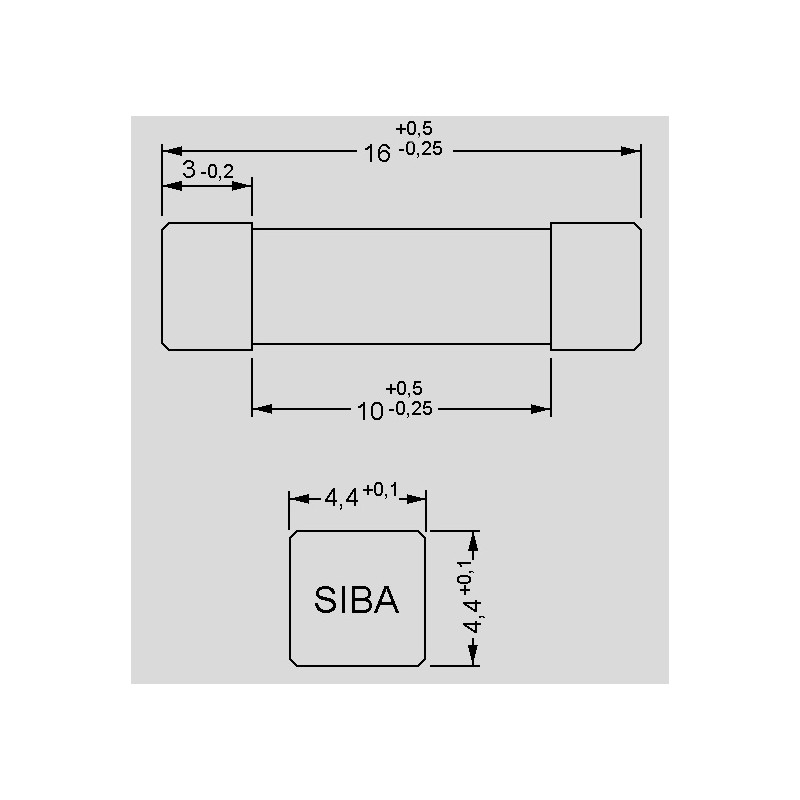

  • time lag SMD fuses in a compact size (16x4,4x4,4mm)
  • insulator is made of a ceramic tube with filling
  • contact caps are made of silver-plated copper-alloy
  • suitable for a soldering heat of up to 260°C/10s (IEC60068)
  • rated breaking capacity: 1500A
  • rated voltage: 250V
  • taped

KSN T 1 A

44670 KSN T 1 A 160016.1GT 160016.1GT Siba SMD fuse series 160016. time lag SMD fuses in a compact size (16x4,4x4,4mm) insulator is made of a ceramic tube with filling contact caps are made of silver-plated copper-alloy suitable for a soldering heat of up to 260°C/10s (IEC60068) rated breaking capacity: 1500A rated voltage: 250V taped

Specifications

manufacturer
Manufacturer's name 160016.1GT
Voltage drop, max. [mV] 380
Melting integral [A²s] 4,5
Rated current [A] 1
Data Sheet

Unit price

0,768 €

Stock: 860
Further delivery:
CW 31/2024

Minimum order quantity 10 units or
multiples of 10.
