ML 10 G

multiple connectors

• straight
• colour: grey
• without locking lever
• pitch: 2.54mm
• PBT 20% glass fibre
• contacts: copper alloy
• contact surface: gold over nickel
• rated current: 1A
• contact resistance: 20mΩ
• insulation resistance (500V DC), min: 5000MΩ
• temperature range: -25...+85°C

ML 10 G

ML 10 G

11732 ML 10 G SPMH10S-3000 SPMH10S-3000 multiple connectors. • straight• colour: grey• without locking lever• pitch: 2.54mm• PBT 20% glass fibre• contacts: copper alloy• contact surface: gold over nickel• rated current: 1A• contact resistance: 20mΩ• insulation resistance (500V DC), min: 5000MΩ• temperature range: -25...+85°C

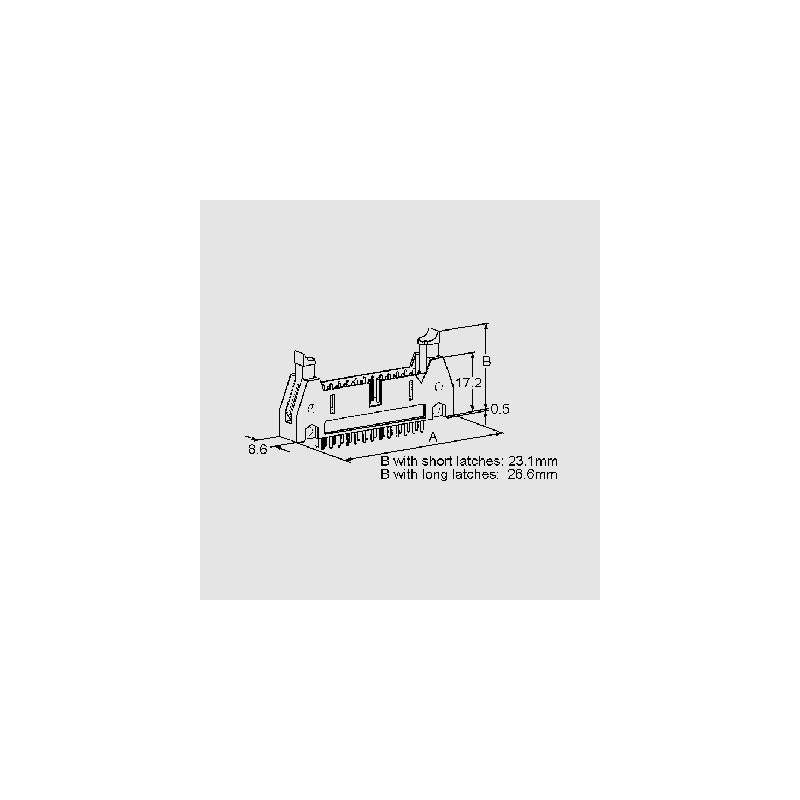

Specifications

manufacturer
Manufacturer's name SPMH10S-3000
Number of poles 10
A [mm] 32,2
Width [mm] 27,9

Unit price

0,503 €

Stock: 7041
Next incoming goods:
CW 17/2024
245 units

Further delivery:
CW 28/2024

Minimum order quantity 1 to 6 units or multiples of 10 plus 0 to 6 .
