> Passive elements>Relays>Reed relays>Standex Meder reed relays, DIL housing, 2 normally open contacts, DIP series>RR B 12 V

Manufacturers

RR B 12 V

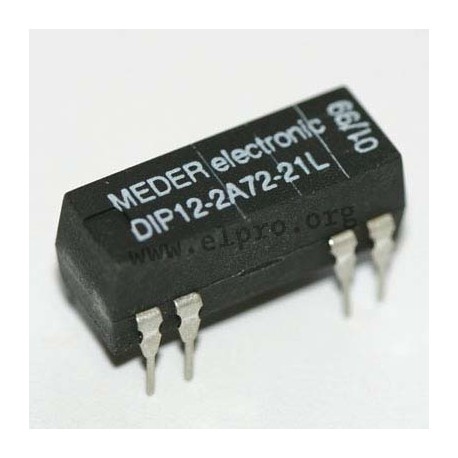

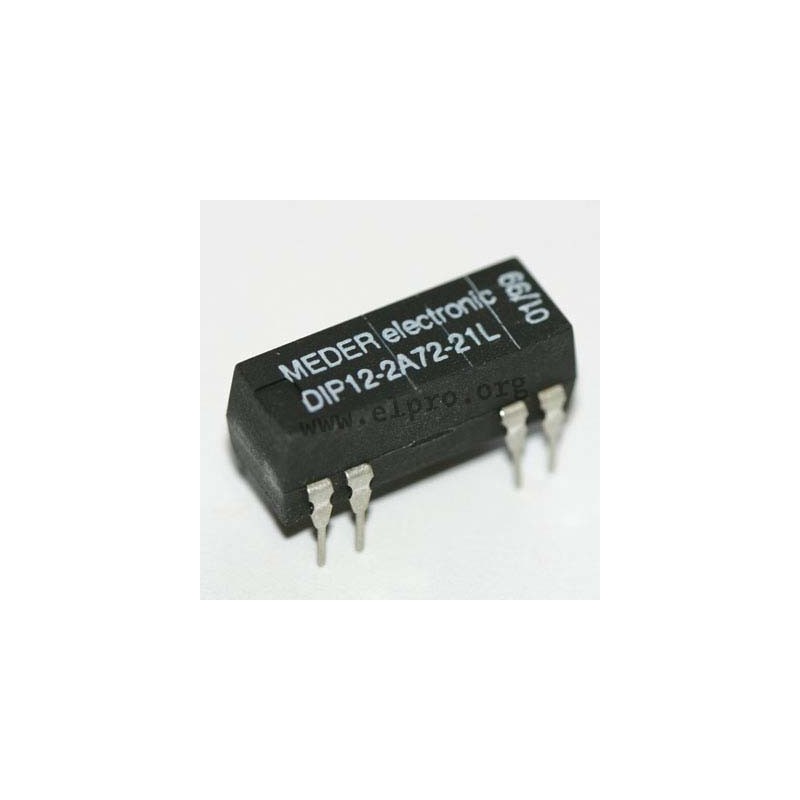

Standex Meder reed relay series DIP

  • reed relays in a flux sealed DIL14 housing
  • with (RRDP_) or without a diode (RR B_ / DIP24_-21D)
  • fully encapsulated
  • contact: DPST-NO
  • switching current: 0,5A
RR B 12 V

RR B 12 V

11790 RR B 12 V DIP12-2A72-21L DIP12-2A72-21L Standex Meder reed relay series DIP. reed relays in a flux sealed DIL14 housing with (RRDP_) or without a diode (RR B_ / DIP24_-21D) fully encapsulated contact: DPST-NO switching current: 0,5A

Specifications

manufacturer
Manufacturer's name DIP12-2A72-21L
Rated current [mA] 24
Nominal voltage [V] 12
Nominal resistance [Ω] 500
Response voltage [V] 8,4
Max. switching voltage [V] 200
Max. switching power [W] 10
Data Sheet

Unit price

4,49 €

Stock: 251
Further delivery:
CW 02/2026

Minimum order quantity 1 unit or multiples of 25 plus 0 to 1 .
