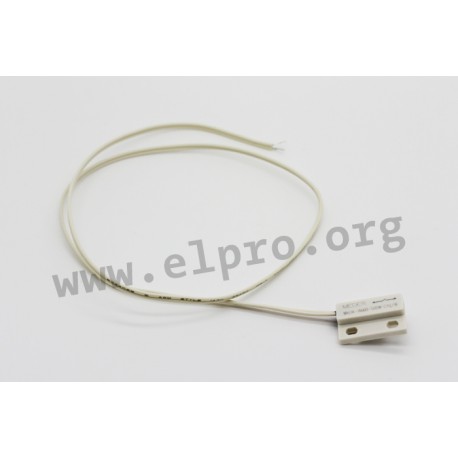

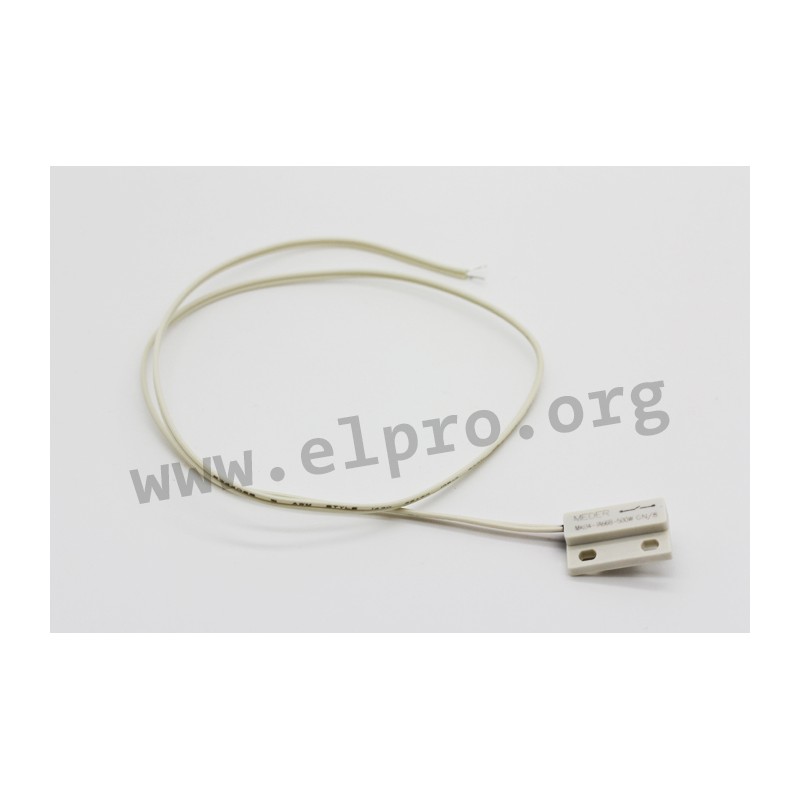

MK4-1A66B-500W

Standex Meder reed sensor series MK

  • magnetically operated reed proximity switches with contacts made of ferromagnetic contact blades
  • the contact is closed resp. opened by removing resp. approximating the reed switch and the permanent magnet
  • contact: SPST-NO
  • switching current: 0,5A
  • switched power: 10W
MK4-1A66B-500W

MK4-1A66B-500W

40906 MK4-1A66B-500W MK04-1A66B-500W MK04-1A66B-500W Standex Meder reed sensor series MK. magnetically operated reed proximity switches with contacts made of ferromagnetic contact blades the contact is closed resp. opened by removing resp. approximating the reed switch and the permanent magnet contact: SPST-NO switching current: 0,5A switched power: 10W

Specifications

manufacturer
Manufacturer's name MK04-1A66B-500W
Switching current, max. [A] 0,5
Carry current, max. [A] 1,25
Switching voltage, max [V] 180
Contact resistance, max. [mΩ] 150
Breakdown voltage, min. [V DC] 225
Switching capacity, max. [W] 10
Data Sheet

Unit price

3,99 €

Stock: 755
Further delivery:
CW 12/2026

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
