Kristall 611 TSC305 0,7mm 250g

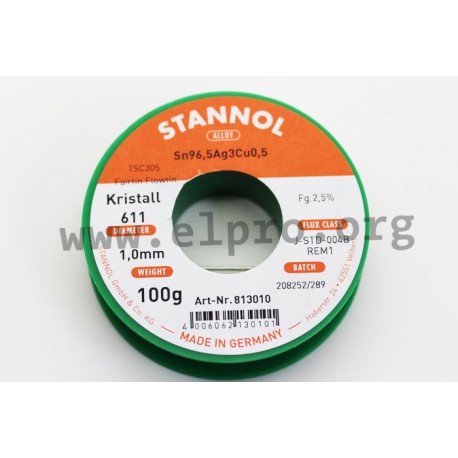

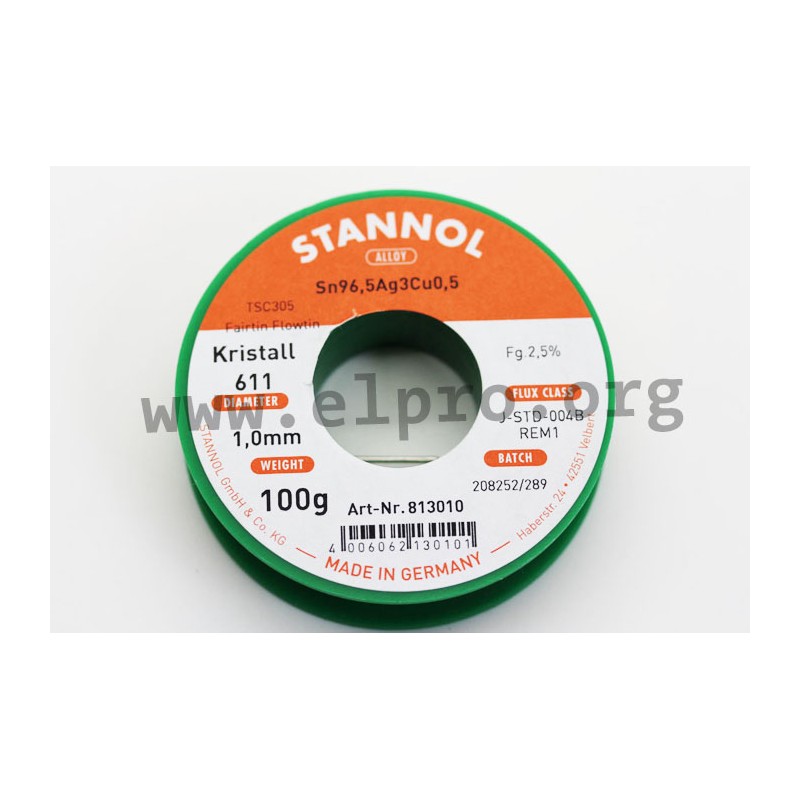

Stannol soldering wire series Kristall 611 TSC305

Halogen-activated and colophony-free soldering wires with high activity and good flow characteristics. They allow fast soldering, have a good wetting behavior on poorly solderable surfaces as well as very low flux splitting and leave slightly colored residues. These soldering wires are designed for automated and manual soldering.

  • melting range: 217 to 222°C
  • flux type (J-STD-004): REM1
  • flux content (EN 12224): 2,5%
  • halogen content: 1,1%
  • corrosive effects (DIN EN 61190-1-1): low
  • alloy (Flowtin TSC305): Sn96,5 Ag3,0 Cu0,5
  • flux core: 1 core

Kristall 611 TSC305 0,7mm 250g

114213 Kristall 611 TSC305 0,7mm 250g 813012 813012 Stannol soldering wire series Kristall 611 TSC305. Halogen-activated and colophony-free soldering wires with high activity and good flow characteristics. They allow fast soldering, have a good wetting behavior on poorly solderable surfaces as well as very low flux splitting and leave slightly colored residues. These soldering wires are designed for automated and manual soldering. melting range: 217 to 222°C flux type (J-STD-004): REM1 flux content (EN 12224): 2,5% halogen content: 1,1% corrosive effects (DIN EN 61190-1-1): low alloy (Flowtin TSC305): Sn96,5 Ag3,0 Cu0,5 flux core: 1 core

Specifications

manufacturer
Manufacturer's name 813012
Data Sheet

Unit price

35,59 €

Stock: 10
Further delivery:
CW 18/2024
