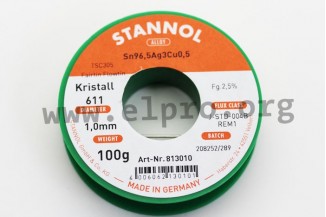

Stannol soldering wire series Kristall 611 TSC305

Halogen-activated and colophony-free soldering wires with high activity and good flow characteristics. They allow fast soldering, have a good wetting behavior on poorly solderable surfaces as well ...

Stannol soldering wire series Kristall 611 TSC305

Halogen-activated and colophony-free soldering wires with high activity and good flow characteristics. They allow fast soldering, have a good wetting behavior on poorly solderable surfaces as well as very low flux splitting and leave slightly colored residues. These soldering wires are designed for automated and manual soldering.

  • melting range: 217 to 222°C
  • flux type (J-STD-004): REM1
  • flux content (EN 12224): 2,5%
  • halogen content: 1,1%
  • corrosive effects (DIN EN 61190-1-1): low
  • alloy (Flowtin TSC305): Sn96,5 Ag3,0 Cu0,5
  • flux core: 1 core
> More
Data Sheet
