STGB 7 NC 60 HDT4

STMicroelectronics SMD IGBT series STGB

  • insulated-gate bipolar transistors (SMD)
  • in a D²Pak housing
  • taped

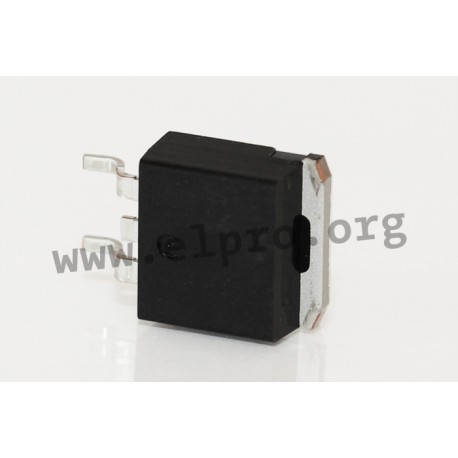

D²Pak

STGB 7 NC 60 HDT4

106995 STGB 7 NC 60 HDT4 STGB7NC60HDT4 STGB7NC60HDT4 STMicroelectronics SMD IGBT series STGB. insulated-gate bipolar transistors (SMD) in a D²Pak housing taped

Specifications

manufacturer
Manufacturer's name STGB7NC60HDT4

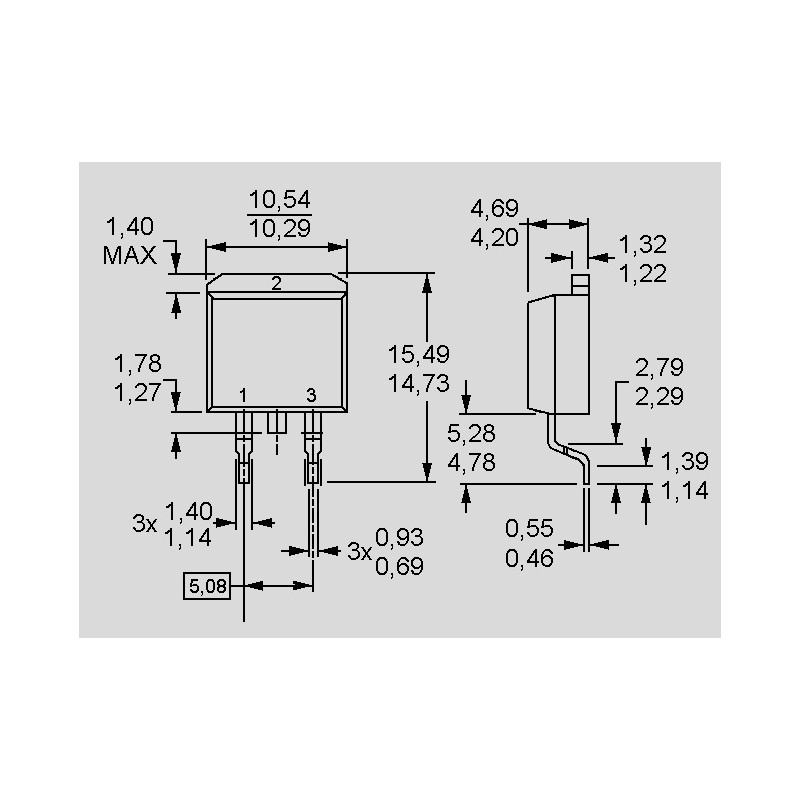

Case D²Pak
Design taped
Power dissipation [W] 80
Turn-on delay time [ns] 18,5
Max. collector-emitter breakdown voltage [V] 600
Min. gate threshold voltage [V] 3,75
Max. collector current, pulsed [A] 50
Turn-off delay time [ns] 72
Max. continuous collector current at TC = 25°C 25
Data Sheet

Unit price

1,54 €

Stock: 907
Further delivery:
CW 12/2026

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
