STGB 10 NC 60 KDT4

STMicroelectronics SMD IGBT series STGB

  • insulated-gate bipolar transistors (SMD)
  • in a D²Pak housing
  • taped

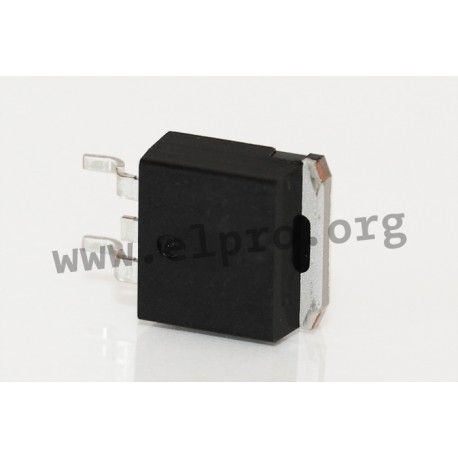

D²Pak

STGB 10 NC 60 KDT4

106997 STGB 10 NC 60 KDT4 STGB10NC60KDT4 STGB10NC60KDT4 STMicroelectronics SMD IGBT series STGB. insulated-gate bipolar transistors (SMD) in a D²Pak housing taped

Specifications

manufacturer
Manufacturer's name STGB10NC60KDT4
Case D²Pak
Design taped
Power dissipation [W] 65
Turn-on delay time [ns] 17
Max. collector-emitter breakdown voltage [V] 600
Min. gate threshold voltage [V] 4,5
Max. collector current, pulsed [A] 30
Turn-off delay time [ns] 72
Max. continuous collector current at TC = 25°C 20
Data Sheet

Unit price

1,07 €

Stock: 660
Further delivery:
CW 40/2025

Minimum order quantity 10 units or
multiples of 10.
