A 2179HBT TC.GN

fan 230V AC, series A by Sunon

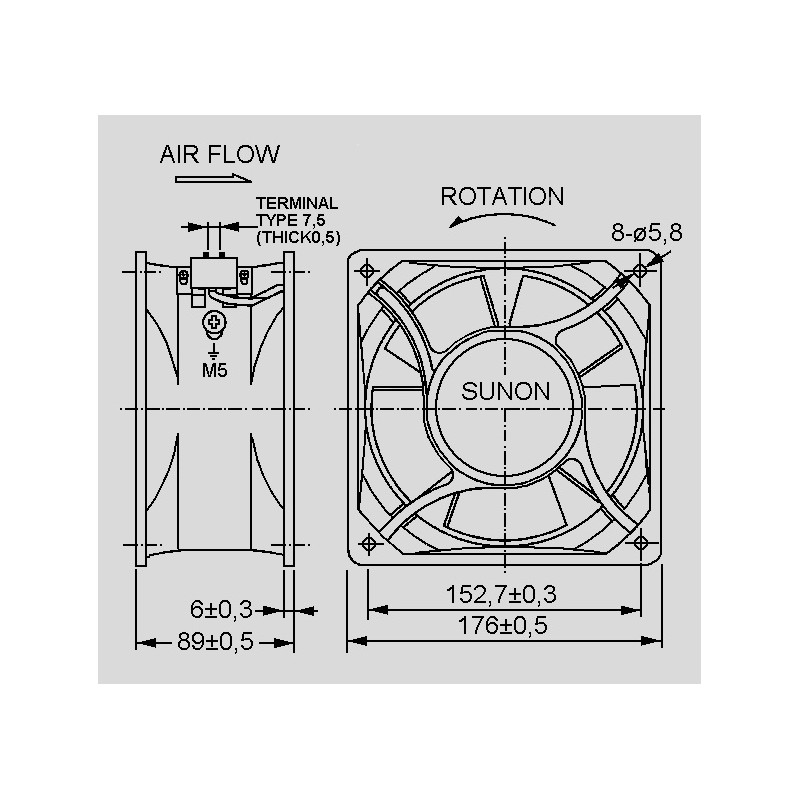

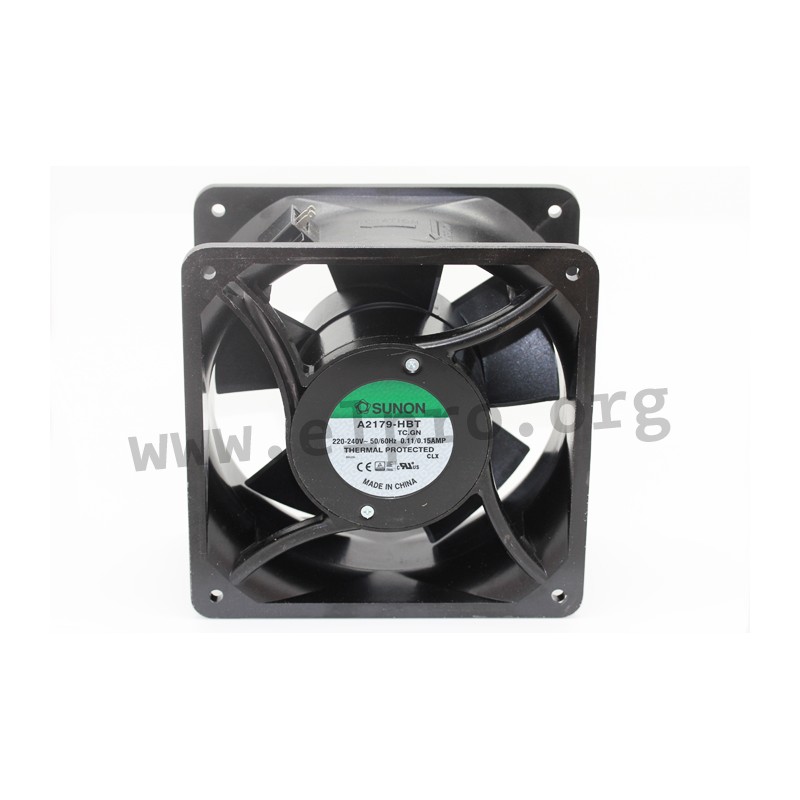

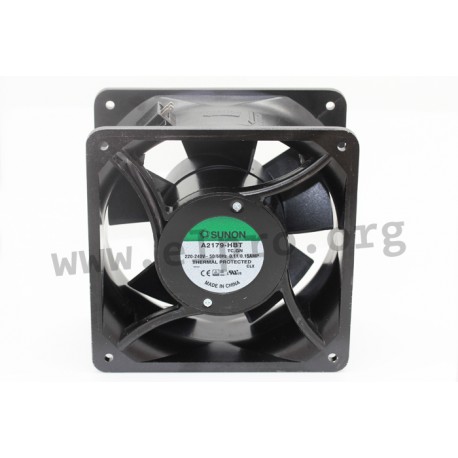

AC fans with ball bearing system and dimensions of 176x176x89mm are available from Sunon. These fans feature an alveolate motor that is thermal protected, along with a frame made of aluminium spray cast. The impeller is filled thermoplastic PBT (UL94V-0) and the connection type is an integrated terminal plug (2,8x0,3mm). Rated voltage for these AC axial fans ranges between 220 to 240V AC 50/60Hz while operating voltage falls within the range of 150 to 250V AC. Dielectric strength at a relative humidity of 65% is an impressive 1800V AC for 1s whereas insulation resistance at 500 V DC exceeds >500MΩ. Operating temperature varies between -10 to +70°C and reversible temperature protection stands at 110°C/90°C respectively.

A 2179HBT TC.GN

39445 A 2179HBT TC.GN A2179-HBT.TC.GN A2179-HBT.TC.GN fan 230V AC, series A by Sunon. AC fans with ball bearing system and dimensions of 176x176x89mm are available from Sunon. These fans feature an alveolate motor that is thermal protected, along with a frame made of aluminium spray cast. The impeller is filled thermoplastic PBT (UL94V-0) and the connection type is an integrated terminal plug (2,8x0,3mm). Rated voltage for these AC axial fans ranges between 220 to 240V AC 50/60Hz while operating voltage falls within the range of 150 to 250V AC. Dielectric strength at a relative humidity of 65% is an impressive 1800V AC for 1s whereas insulation resistance at 500 V DC exceeds >500MΩ. Operating temperature varies between -10 to +70°C and reversible temperature protection stands at 110°C/90°C respectively.

Specifications

manufacturer
Manufacturer's name A2179-HBT.TC.GN
Current [A] 0,11
Dimensions 176x176x89mm
Electric power [W] 23
Noise [dBA] 62
Air performance [m3/h] 535,05
Number of revolutions [U/min] 2800
Data Sheet

Unit price

64,79 €

Stock: 125
Further delivery:
CW 32/2024
