EB 60201 S1-000U-999

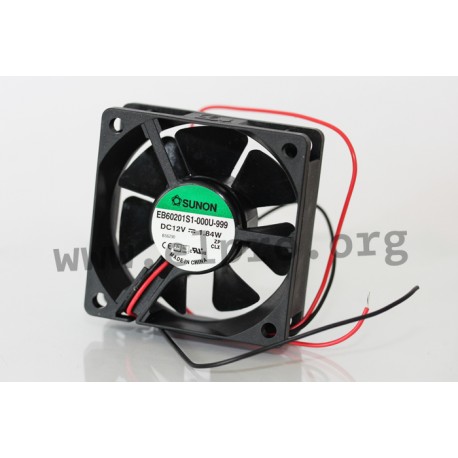

Sunon fan 12V DC series EB/EE/MB/MF

DC fans with either a sleeve, denoted by E_, or vapo bearing system, denoted by M_, are available as 4-pole DC axial fans. The impellers and frames of these fans are made using filled thermoplastic PBT (UL94V-0). This material ensures that the fans have high durability and can resist harsh environmental conditions. To ensure low noise levels during operation, the use of magnetic levitation systems is employed to reduce friction between moving parts. The connection for these DC fans is established through stranded wires AWG26 which allows for secure connections that can withstand mechanical stress while in operation. These DC axial Fans come in standardized dimensions measuring 60x60x25mm providing compatibility with multiple applications. They operate at an optimal voltage rating of 12VDC providing both efficient performance and reliable service life. With their impressive features such as long life-span they offer a cost-effective solution to meet various cooling requirements across industries including but not limited to telecommunication equipment's, computers among others where effective cooling needs become more paramount than ever before.

EB 60201 S1-000U-999

36616 EB 60201 S1-000U-999 EB60201S1-000U-999 EB60201S1-000U-999 Sunon fan 12V DC series EB/EE/MB/MF. DC fans with either a sleeve, denoted by E_, or vapo bearing system, denoted by M_, are available as 4-pole DC axial fans. The impellers and frames of these fans are made using filled thermoplastic PBT (UL94V-0). This material ensures that the fans have high durability and can resist harsh environmental conditions. To ensure low noise levels during operation, the use of magnetic levitation systems is employed to reduce friction between moving parts. The connection for these DC fans is established through stranded wires AWG26 which allows for secure connections that can withstand mechanical stress while in operation. These DC axial Fans come in standardized dimensions measuring 60x60x25mm providing compatibility with multiple applications. They operate at an optimal voltage rating of 12VDC providing both efficient performance and reliable service life. With their impressive features such as long life-span they offer a cost-effective solution to meet various cooling requirements across industries including but not limited to telecommunication equipment's, computers among others where effective cooling needs become more paramount than ever before.

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name EB60201S1-000U-999
Current [A] 0,153
Voltage 12V DC

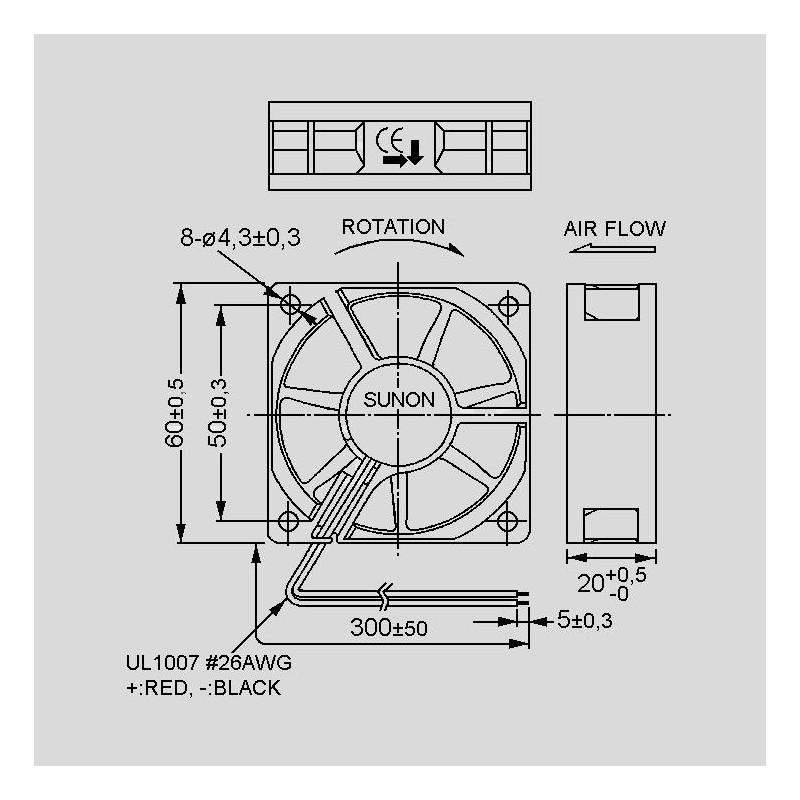

Dimensions 60x60x20mm
Electric power [W] 1,84
Noise [dBA] 33,5
Air performance [m3/h] 39,06
Number of revolutions [U/min] 4500
Data Sheet

Unit price

2,59 €

Stock: 2
