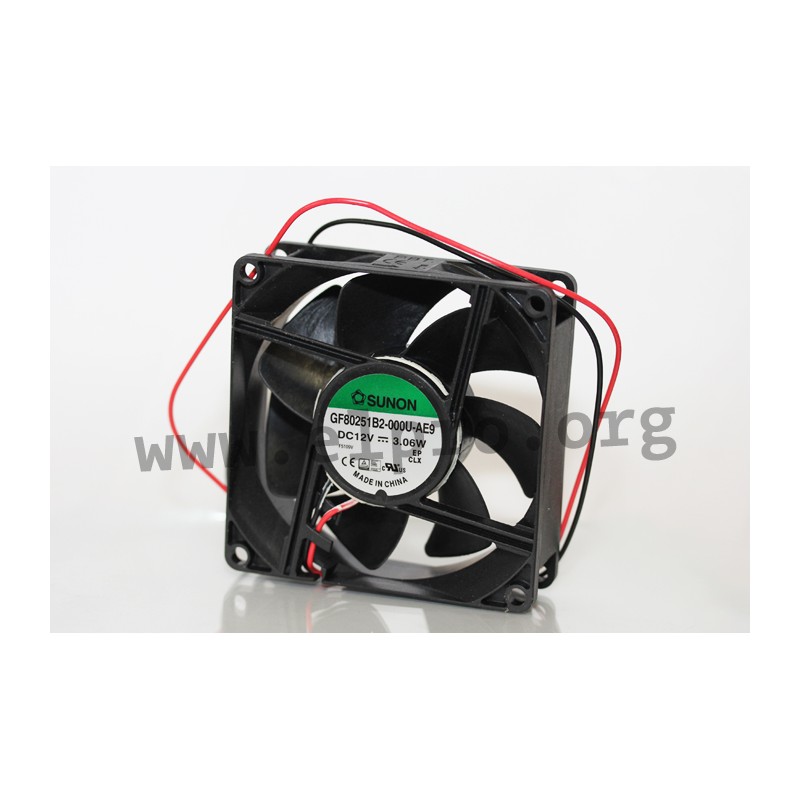

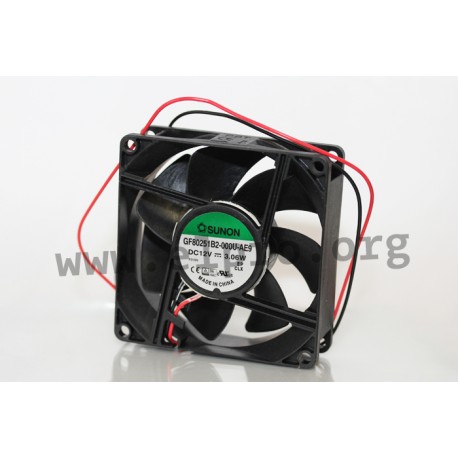

GF 80251 B2-000U-AE9

Sunon fan 12V DC series EE/EF/ME/MF/HA/GF/PF

4-pole DC fans with a ball bearing (E_B_), a sleeve bearing (E_S_), a vapo bearing (M_V_/HA 80251_/PF_) or a two ball bearing (GF 80251_) system. These fans have frame and impeller made of thermoplastic PBT (UL94V-0). The dielectric strength is 500V AC for 1min, while the insulation resistance at 500V DC is rated at 10MΩ. With an operating temperature range of -10 to +70°C, these fans come in a compact size of 80x80x25mm and run on a rated voltage of 12V DC.

GF 80251 B2-000U-AE9

GF 80251 B2-000U-AE9

45199 GF 80251 B2-000U-AE9 GF80251B2-000U-AE9 GF80251B2-000U-AE9 Sunon fan 12V DC series EE/EF/ME/MF/HA/GF/PF. 4-pole DC fans with a ball bearing (E_B_), a sleeve bearing (E_S_), a vapo bearing (M_V_/HA 80251_/PF_) or a two ball bearing (GF 80251_) system. These fans have frame and impeller made of thermoplastic PBT (UL94V-0). The dielectric strength is 500V AC for 1min, while the insulation resistance at 500V DC is rated at 10MΩ. With an operating temperature range of -10 to +70°C, these fans come in a compact size of 80x80x25mm and run on a rated voltage of 12V DC.

Specifications

manufacturer
Manufacturer's name GF80251B2-000U-AE9
Current [A] 0,255
Voltage 12V DC

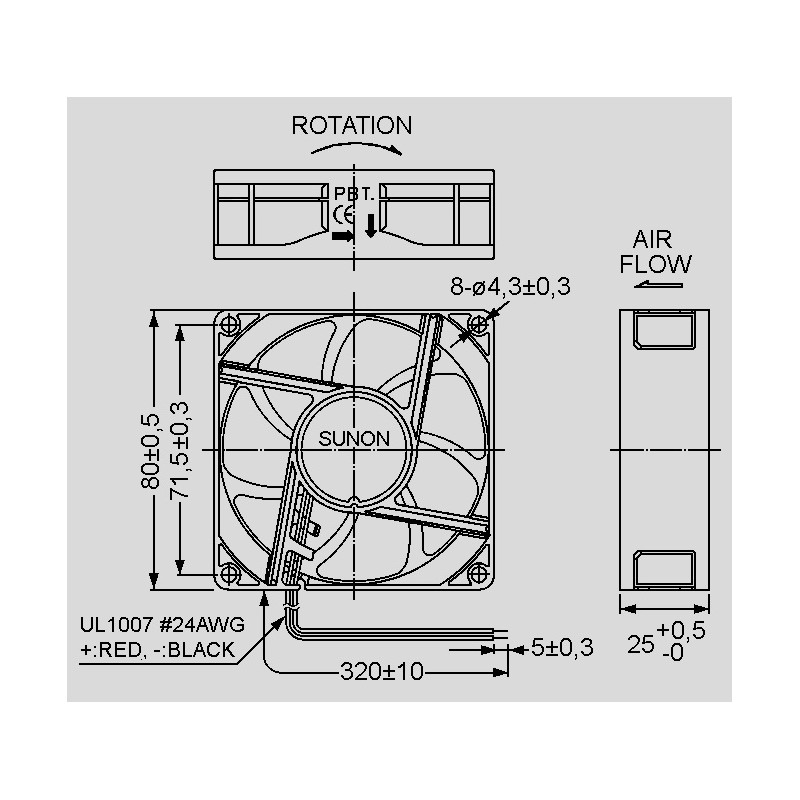

Dimensions 80x80x25mm
Electric power [W] 3,06
Noise [dBA] 46
Air performance [m3/h] 96,82
Number of revolutions [U/min] 4500
Data Sheet

Unit price

19,89 €

Stock: 100
Further delivery:
CW 37/2024
