Manufacturers

MEC 0381 V2-0000-A99

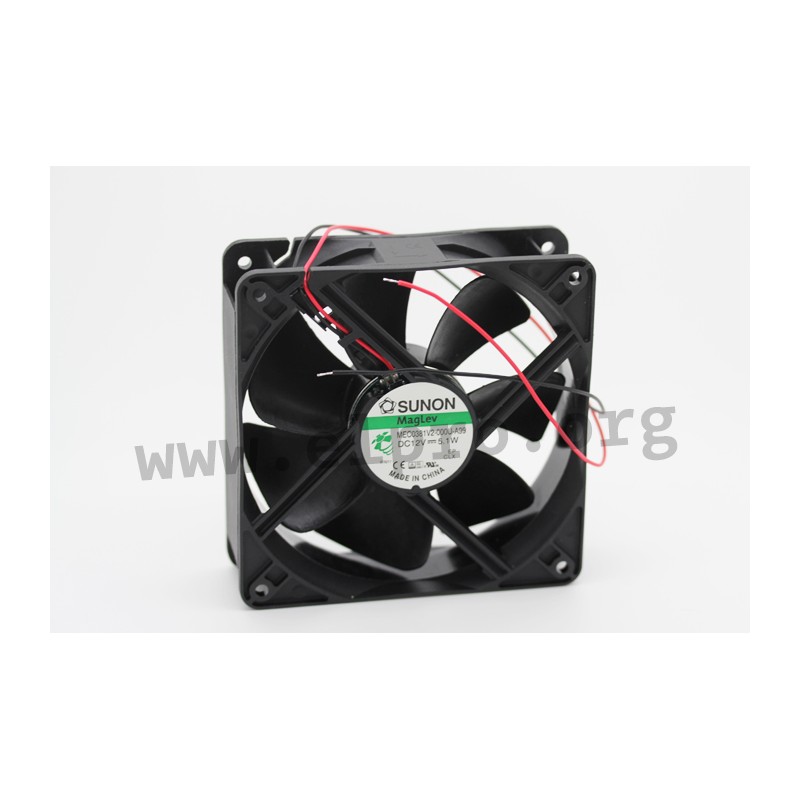

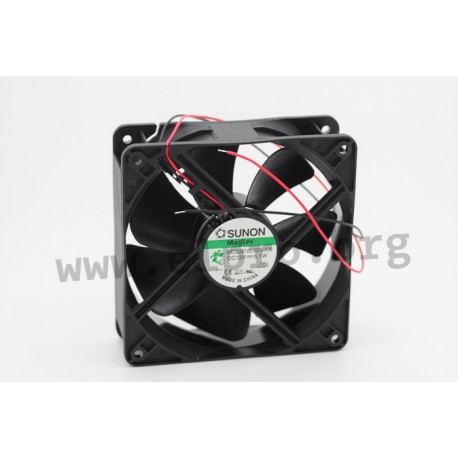

Sunon fan series EEC and MEC

4-pole DC fans with either a vapo bearing system (MEC) or a two ball bearing system (EEC_) are available. These fans feature impellers and frames made of filled thermoplastic that meet UL94V-0 standards, ensuring high safety levels. Connection is established through stranded wires UL1007 AWG24 for easy installation. The Magnetic Levitation System ensures quiet operation while maintaining stable performance even under heavy loads. With dimensions of 120x120x38mm and rated voltage of 12V DC, these fans can be used in various applications requiring efficient cooling solutions without compromising on noise reduction capabilities.

MEC 0381 V2-0000-A99

34121 MEC 0381 V2-0000-A99 MEC0381V2-000U-A99 MEC0381V2-000U-A99 Sunon fan series EEC and MEC. 4-pole DC fans with either a vapo bearing system (MEC) or a two ball bearing system (EEC_) are available. These fans feature impellers and frames made of filled thermoplastic that meet UL94V-0 standards, ensuring high safety levels. Connection is established through stranded wires UL1007 AWG24 for easy installation. The Magnetic Levitation System ensures quiet operation while maintaining stable performance even under heavy loads. With dimensions of 120x120x38mm and rated voltage of 12V DC, these fans can be used in various applications requiring efficient cooling solutions without compromising on noise reduction capabilities.

Specifications

manufacturer
Manufacturer's name MEC0381V2-000U-A99
Current [A] 0,5
Voltage 12V DC

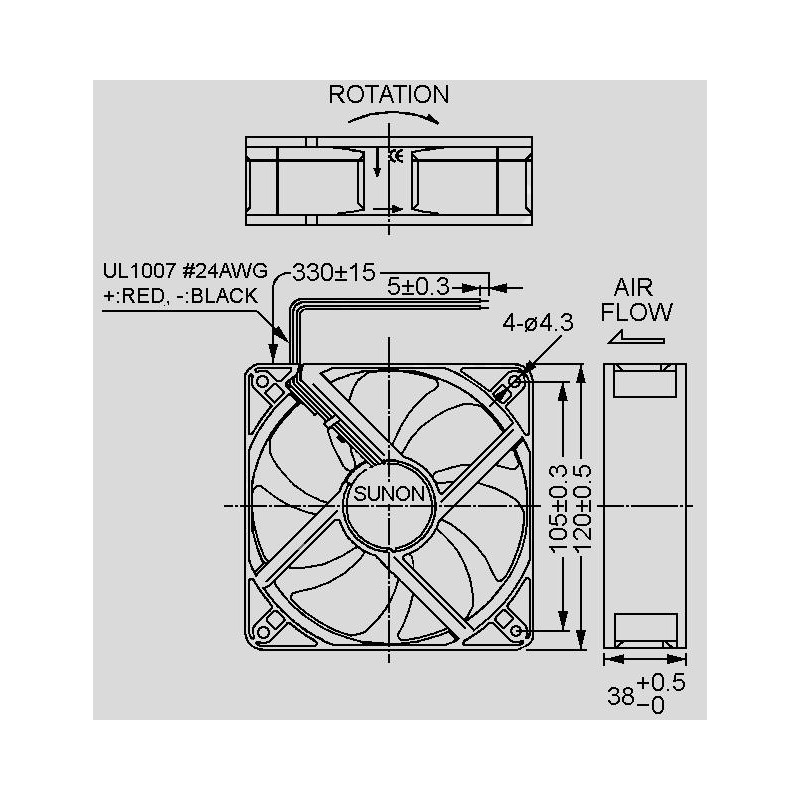

Dimensions 120x120x38mm
Electric power [W] 6
Noise [dBA] 44
Air performance [m3/h] 197,04
Number of revolutions [U/min] 2600
Data Sheet

Unit price

6,49 €

Stock: 3375
Further delivery:
CW 38/2024
