EEC 0381 B1-0000-A99

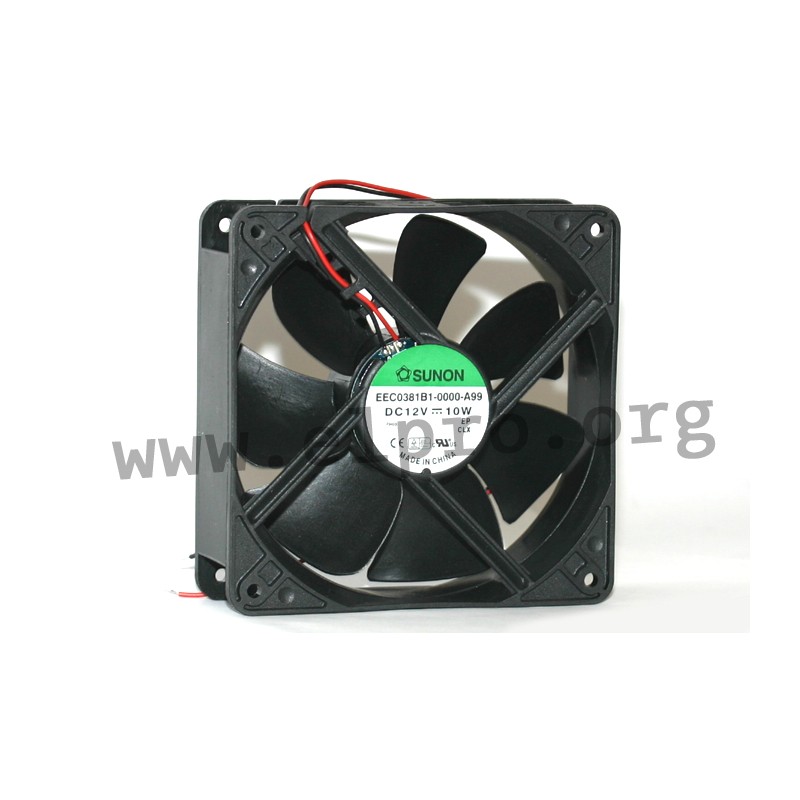

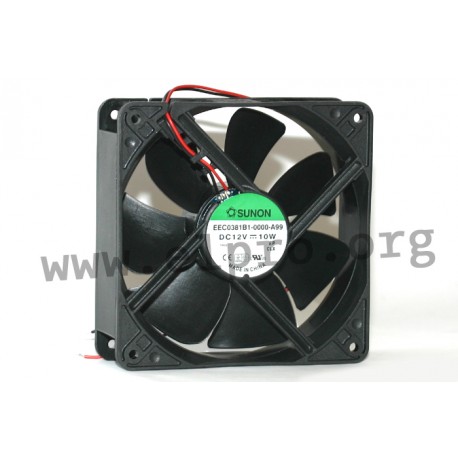

Sunon fan series EEC and MEC

4-pole DC fans with either a vapo bearing system (MEC) or a two ball bearing system (EEC_) are available. These fans feature impellers and frames made of filled thermoplastic that meet UL94V-0 standards, ensuring high safety levels. Connection is established through stranded wires UL1007 AWG24 for easy installation. The Magnetic Levitation System ensures quiet operation while maintaining stable performance even under heavy loads. With dimensions of 120x120x38mm and rated voltage of 12V DC, these fans can be used in various applications requiring efficient cooling solutions without compromising on noise reduction capabilities.

EEC 0381 B1-0000-A99

34128 EEC 0381 B1-0000-A99 EEC0381B1-000U-A99 EEC0381B1-000U-A99 Sunon fan series EEC and MEC. 4-pole DC fans with either a vapo bearing system (MEC) or a two ball bearing system (EEC_) are available. These fans feature impellers and frames made of filled thermoplastic that meet UL94V-0 standards, ensuring high safety levels. Connection is established through stranded wires UL1007 AWG24 for easy installation. The Magnetic Levitation System ensures quiet operation while maintaining stable performance even under heavy loads. With dimensions of 120x120x38mm and rated voltage of 12V DC, these fans can be used in various applications requiring efficient cooling solutions without compromising on noise reduction capabilities.

Specifications

manufacturer
Manufacturer's name EEC0381B1-000U-A99
Current [A] 0,8
Voltage 12V DC

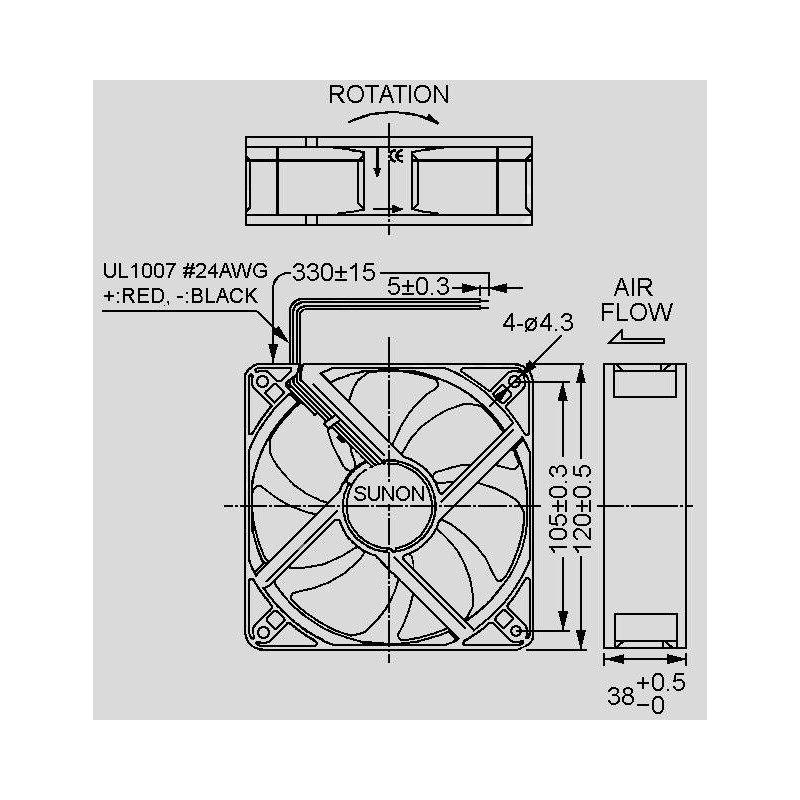

Dimensions 120x120x38mm
Electric power [W] 9,6
Noise [dBA] 48
Air performance [m3/h] 234,41
Number of revolutions [U/min] 3100
Data Sheet

Unit price

7,49 €

Stock: 2143
Further delivery:
CW 32/2024
