CF 2082 HVL-1000U-999

Sunon fan series MA/SF/CF

AC fans with either a 4 pole brushless motor (MA_/CF_) or a shaded-pole motor (LFA_) are available. These fans have impedance protection and come equipped with either sleeve bearings (LFA 220V G), ball bearings (LFA 220V K) or vapo bearing systems (MA_/CF_). The impellers of these fans are made from thermoplastic PBT(UL94V-0). Connection to the power supply is through wires, while their operating temperature ranges between -10°C to +70°C. Their dimensions measure at 80x80x25mm and they operate on rated voltage of 230V AC.

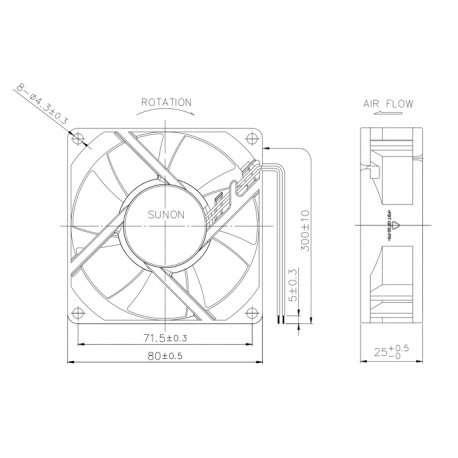

CF2082HVL-1000U-999, Sunon fans, 80x80x25mm, 230V AC, MA/SF/CF series

CF 2082 HVL-1000U-999

242231 CF 2082 HVL-1000U-999 CF2082HVL-1000U-999 CF2082HVL-1000U-999 Sunon fan series MA/SF/CF. AC fans with either a 4 pole brushless motor (MA_/CF_) or a shaded-pole motor (LFA_) are available. These fans have impedance protection and come equipped with either sleeve bearings (LFA 220V G), ball bearings (LFA 220V K) or vapo bearing systems (MA_/CF_). The impellers of these fans are made from thermoplastic PBT(UL94V-0). Connection to the power supply is through wires, while their operating temperature ranges between -10°C to +70°C. Their dimensions measure at 80x80x25mm and they operate on rated voltage of 230V AC.

Specifications

manufacturer
Manufacturer's name CF2082HVL-10...
Current [A] 0,17
Dimensions 80x80x25
Nominal voltage [V] 230V AC
Electric power [W] 3,2
Noise [dBA] 32
Air performance [m3/h] 67,94
Number of revolutions [U/min] 3100
Data Sheet

Unit price

9,69 €

Stock: 235
Further delivery:
CW 35/2024
