1,5 KE A 36 V

Taiwan Semiconductor TVS diodes series 1.5KE

Unipolar (1.5KE_A) or bipolar (1.5KE_CA) TVS diodes in a DO201 housing and with a power dissipation of 1500W. We offer various types of this Taiwan Semiconductor series.

  • power dissipation: 1500W
  • max. solderability: 250°C/10s

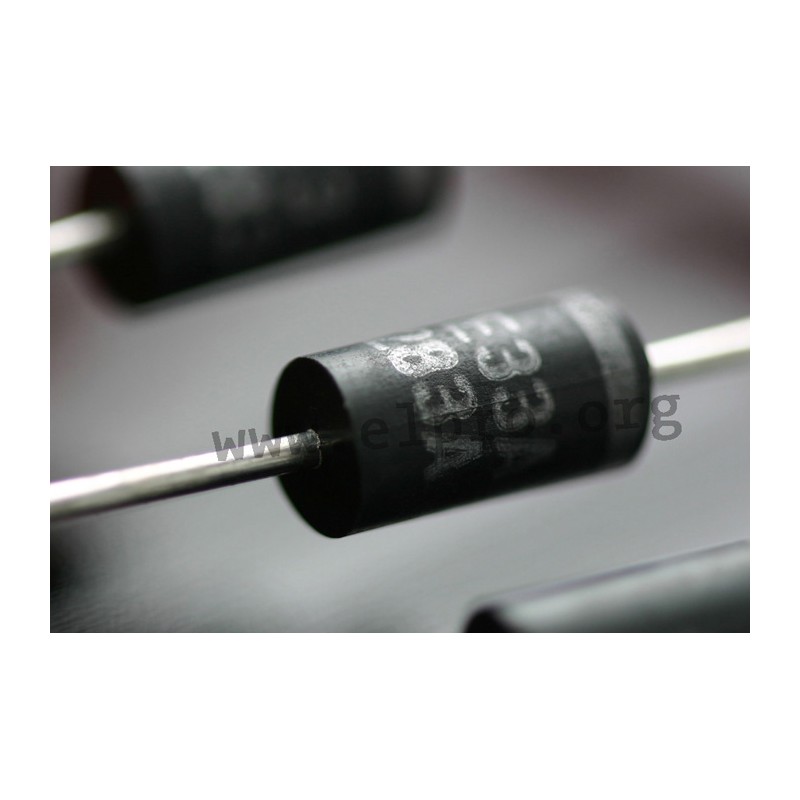

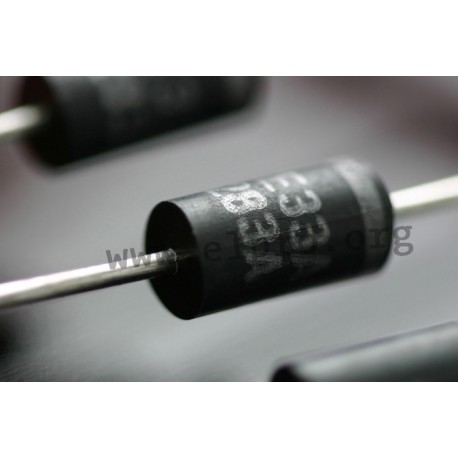

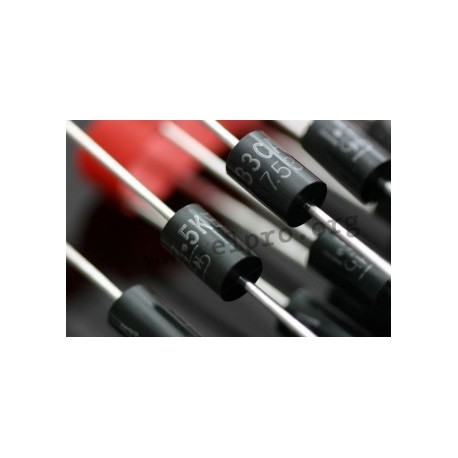

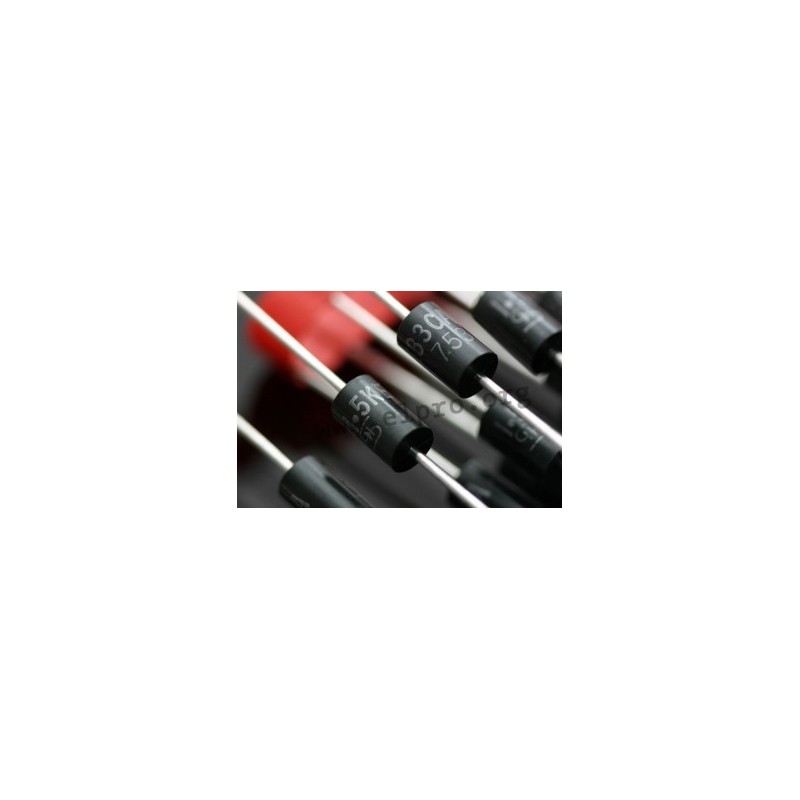

1.5KE36A, Taiwan Semiconductor transient voltage suppression diodes, 1500W, 1.5KE series

1,5 KE A 36 V

55 1,5 KE A 36 V 1.5KE36A 1.5KE36A Taiwan Semiconductor TVS diodes series 1.5KE. Unipolar (1.5KE_A) or bipolar (1.5KE_CA) TVS diodes in a DO201 housing and with a power dissipation of 1500W. We offer various types of this Taiwan Semiconductor series. power dissipation: 1500W max. solderability: 250°C/10s

Specifications

manufacturer
Manufacturer's name 1.5KE36A
Case DO201
Reverse current [µA] 5
Stand-off voltage [V] 30,8
Test current [mA] 1
Breakdown voltage [V] 34,2
Max. clamping voltage [V] 49,9
Reverse peak pulse current [A] 31
Data Sheet

Unit price

0,208 €

Stock: 7660
Further delivery:
CW 04/2027

Minimum order quantity 1 to 10 units or multiples of 25 plus 0 to 10 .
