1,5 KE A 39 V SMD

Taiwan Semiconductor TVS diode series 1.5SMC

  • SMD transient voltage suppression diodes
  • glass passivated
  • in various housings
  • suitable for direct PCB mounting

1,5 KE A 39 V SMD

58 1,5 KE A 39 V SMD 1.5SMC39A 1.5SMC39A Taiwan Semiconductor TVS diode series 1.5SMC. SMD transient voltage suppression diodes glass passivated in various housings suitable for direct PCB mounting

Specifications

manufacturer
Manufacturer's name 1.5SMC39A

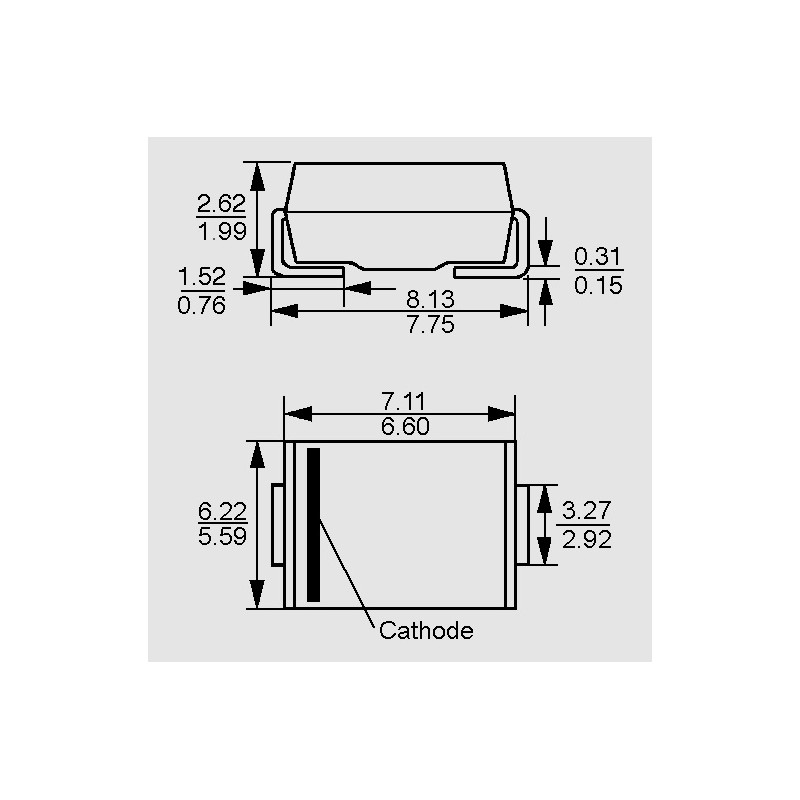

Case DO214AB/SMC
Reverse current [µA] 5
Stand-off voltage [V] 33,3
Test current [mA] 1
Breakdown voltage [V] 37,1
Reverse peak pulse current [A] 29
Max. clamping voltage [V] 53,9
Data Sheet

Unit price

0,237 €

Stock: 7650
Further delivery:
CW 11/2025

Minimum order quantity 1 to 25 units or multiples of 100 plus 0 to 25 .
