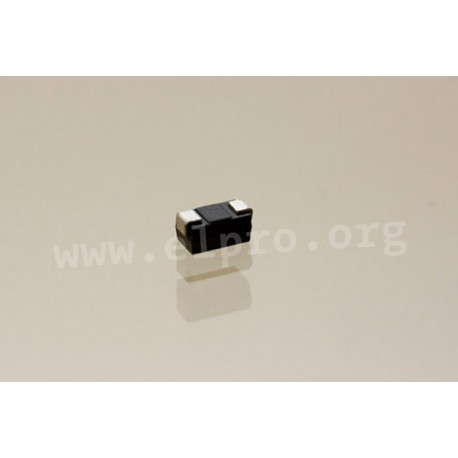

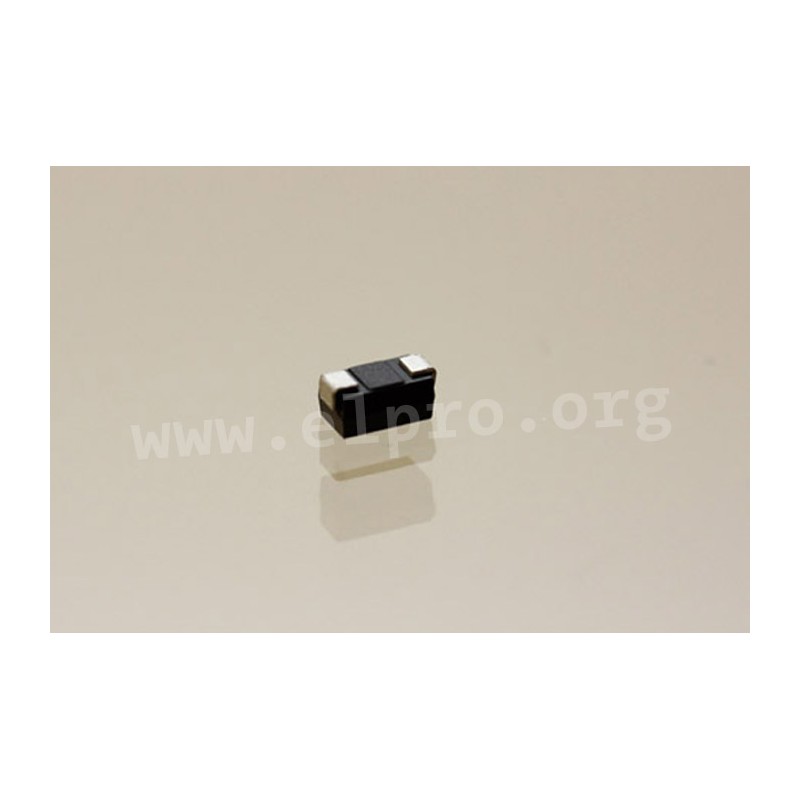

1 SMA 5927

Z diodes 1.5W, SMD

* glass passivated
* housing: DO214AC/SMA
* plastic conforms to UL94V-0
* max. solderability 260°C/10s

1 SMA 5927

1670 1 SMA 5927 1SMA5927 1SMA5927 Z diodes 1.5W, SMD. * glass passivated * housing: DO214AC/SMA * plastic conforms to UL94V-0 * max. solderability 260°C/10s

Specifications

manufacturer
Manufacturer's name 1SMA5927
Case DO214AC/SMA
Reverse current [µA] 0,5
Reverse voltage [V] 9,1
Zener voltage range [V] 11,4...12,6
Max. zener current [A] 125
Max. zener impedance [Ω] 6,5
Test current [mA] 31,2
Power dissipation [W] 1,5
Data Sheet

Unit price

0,074 €

Stock: 6200
Further delivery:
CW 10/2025

Minimum order quantity 100 units or
multiples of 100.
