BZW 06-20 B 24 V

Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE

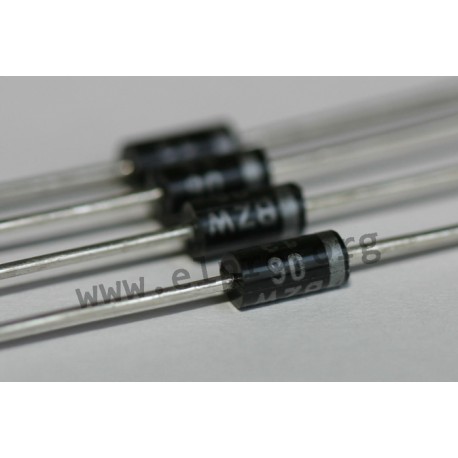

Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

BZW-06

BZW 06-20 B 24 V

295 BZW 06-20 B 24 V BZW06-20B BZW06-20B Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE. Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

Specifications

manufacturer
Manufacturer's name BZW06-20B

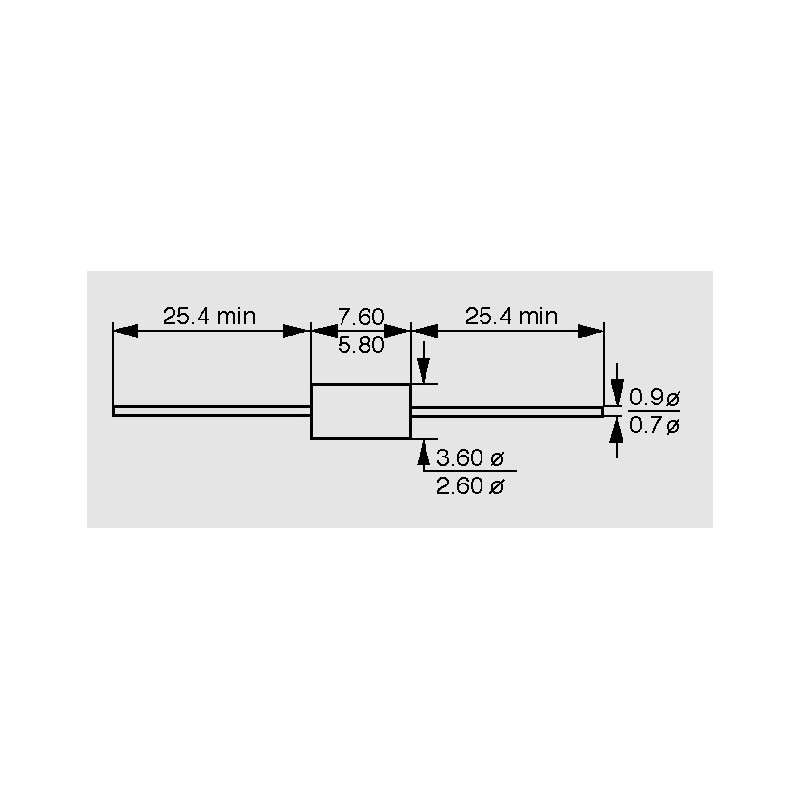

Case DO15
Reverse current [µA] 5
Stand-off voltage [V] 20,5
Breakdown voltage [V] 22,8
Test current [mA] 1
Max. clamping voltage [V] 33,2
Reverse peak pulse current [A] 18
Nominal voltage [V] 24

Unit price

0,14 €

Stock: 2249
Further delivery:
CW 02/2027

Minimum order quantity 1 to 49 units or multiples of 50 plus 0 to 49 .
