BZW 06-48 B

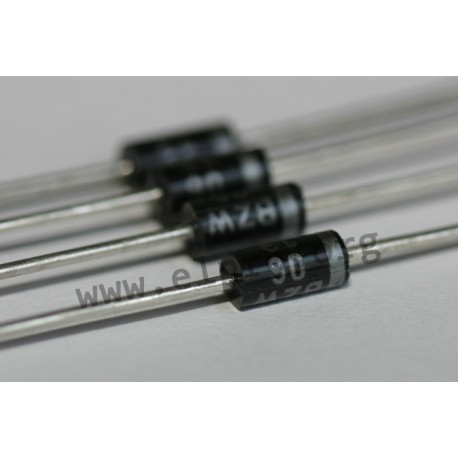

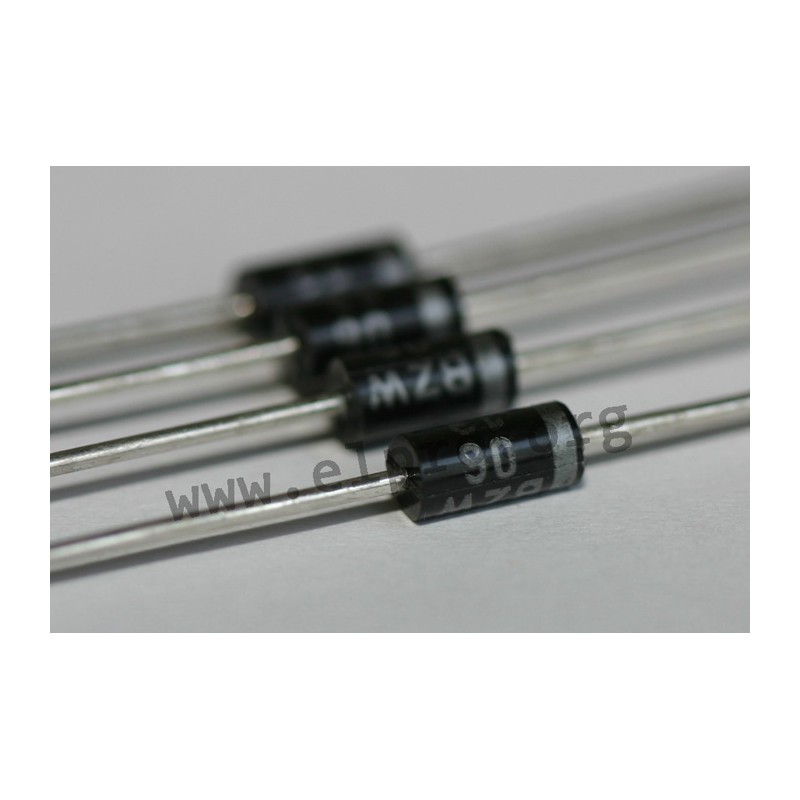

Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE

Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

BZW-06

BZW 06-48 B

34157 BZW 06-48 B BZW06-48B BZW06-48B Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE. Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

Specifications

manufacturer
Manufacturer's name BZW06-48B

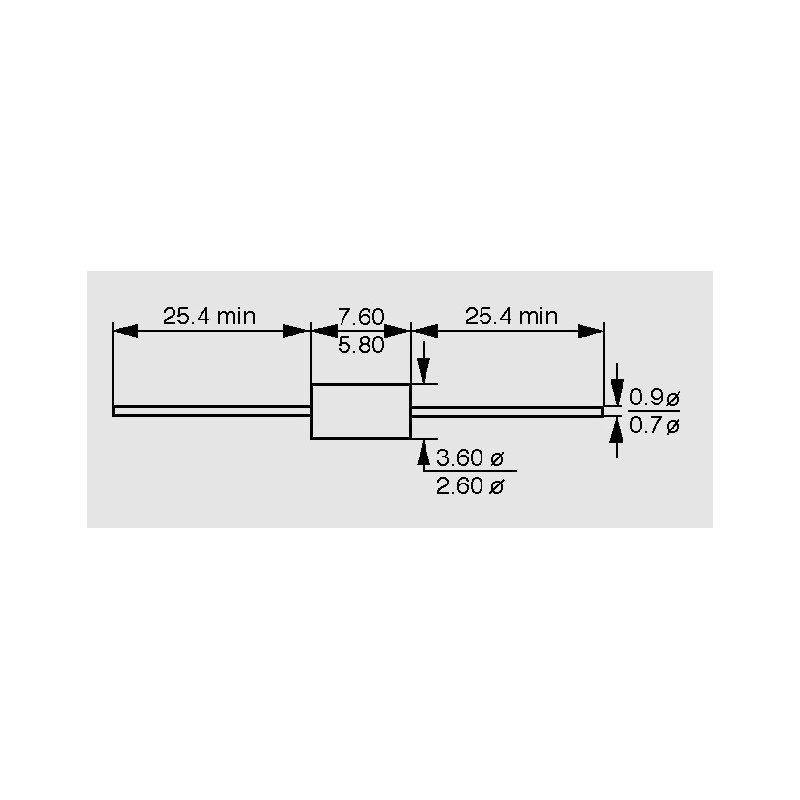

Case DO15
Reverse current [µA] 5
Stand-off voltage [V] 47,8
Test current [mA] 1
Breakdown voltage [V] 53,2
Max. clamping voltage [V] 77
Reverse peak pulse current [A] 7,8

Unit price

0,14 €

Stock: 13100
Further delivery:
CW 02/2027

Minimum order quantity 50 units or
multiples of 50.
