P 6 KE A 16 V

Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE

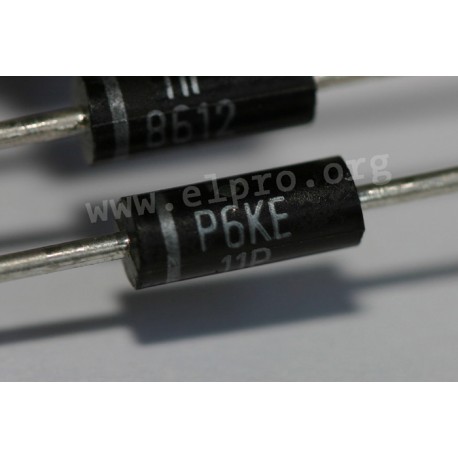

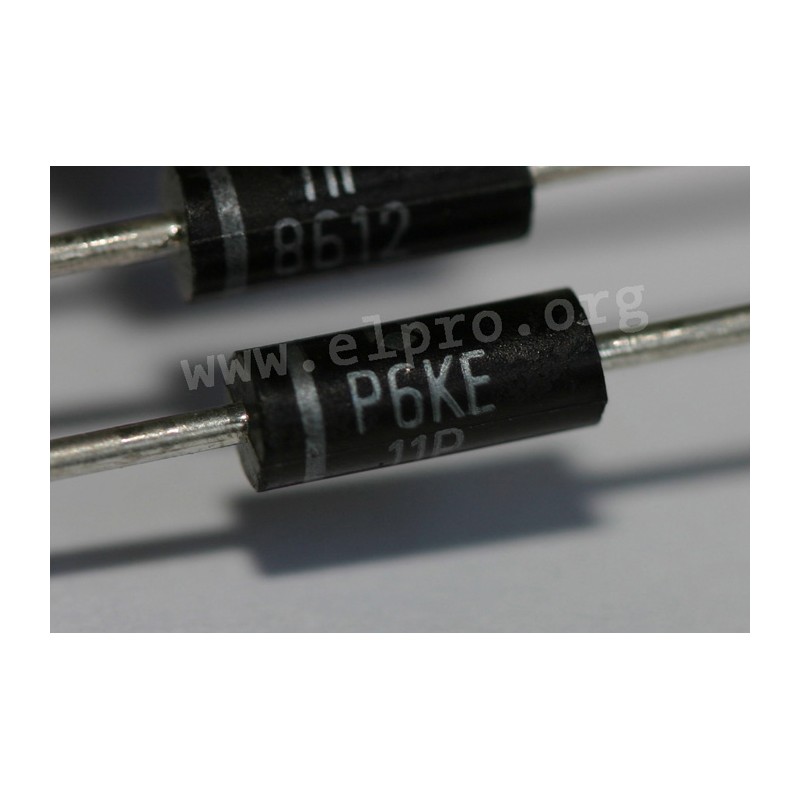

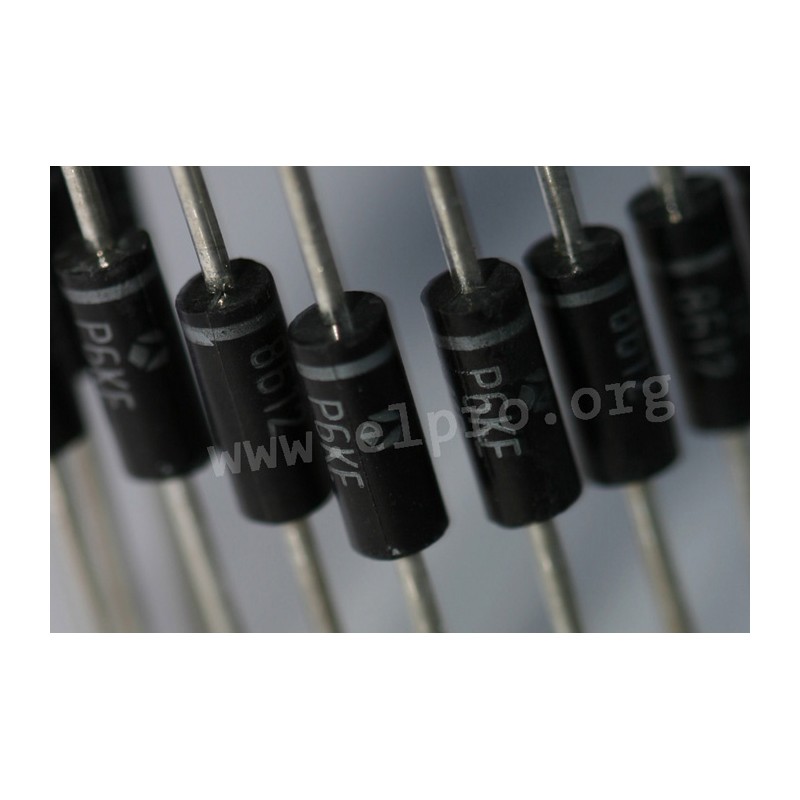

Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

P 6 KE A

P 6 KE A 16 V

466 P 6 KE A 16 V P 6 KE A 16 V Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE. Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

Discontinued items. Only remainder of stock available.

Specifications

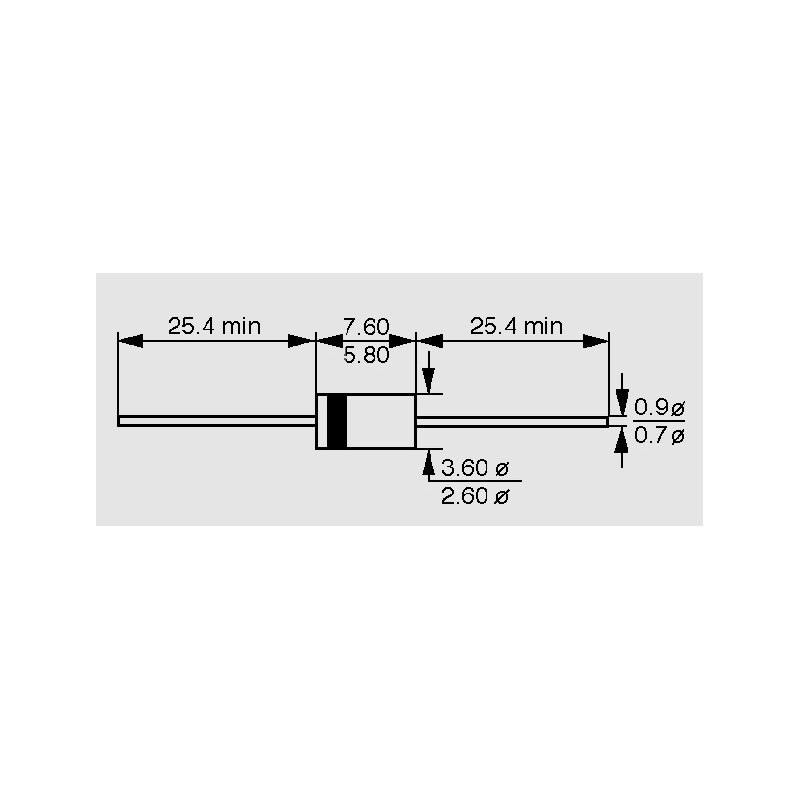

Case DO15
Reverse current [µA] 5
Stand-off voltage [V] 13,6
Breakdown voltage [V] 15,2
Test current [mA] 1
Max. clamping voltage [V] 22,5
Nominal voltage [V] 16
Data Sheet

Unit price

0,13 €

Stock: 13
