P 6 KE A 33 V

• unipolar
• taped

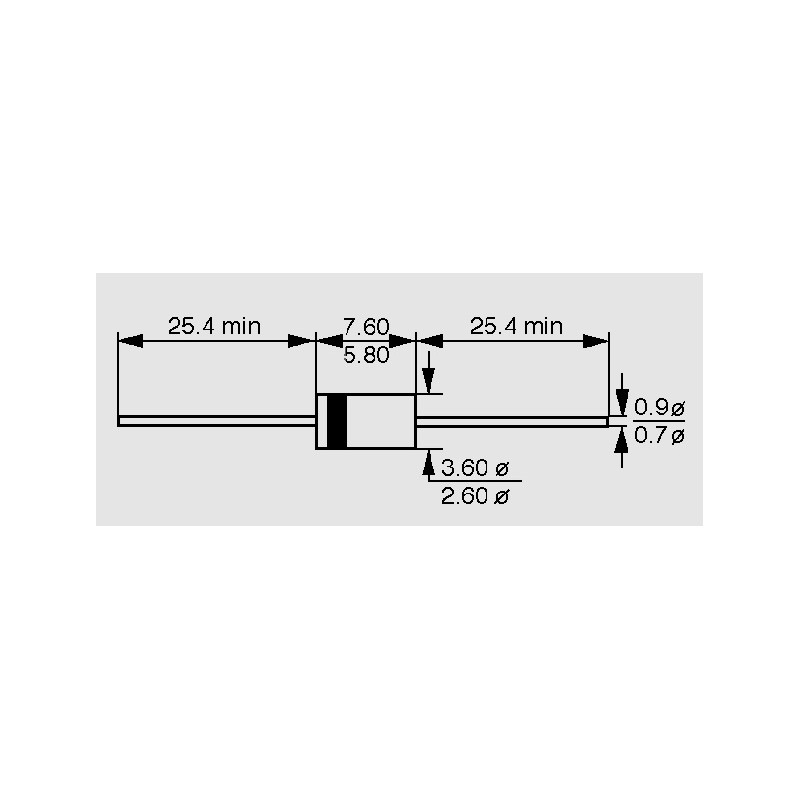

• housing: DO15
• plastic conforms to UL94V-0

P 6 KE A 33 V

485 P 6 KE A 33 V P6KE33A P6KE33A • unipolar• taped• housing: DO15• plastic conforms to UL94V-0

Specifications

manufacturer
Manufacturer's name P6KE33A
Case DO15
Reverse current [µA] 5
Stand-off voltage [V] 28,2
Breakdown voltage [V] 31,4
Test current [mA] 1
Max. clamping voltage [V] 45,7
Reverse peak pulse current [A] 13,8
Data Sheet

Unit price

0,101 €

Stock: 11700
Next incoming goods:
CW 22/2022
6450 units

Minimum order quantity 50 units or
multiples of 50.
