P 6 KE A 350 V

Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE

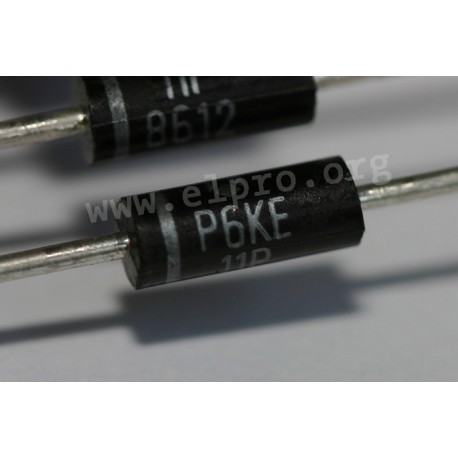

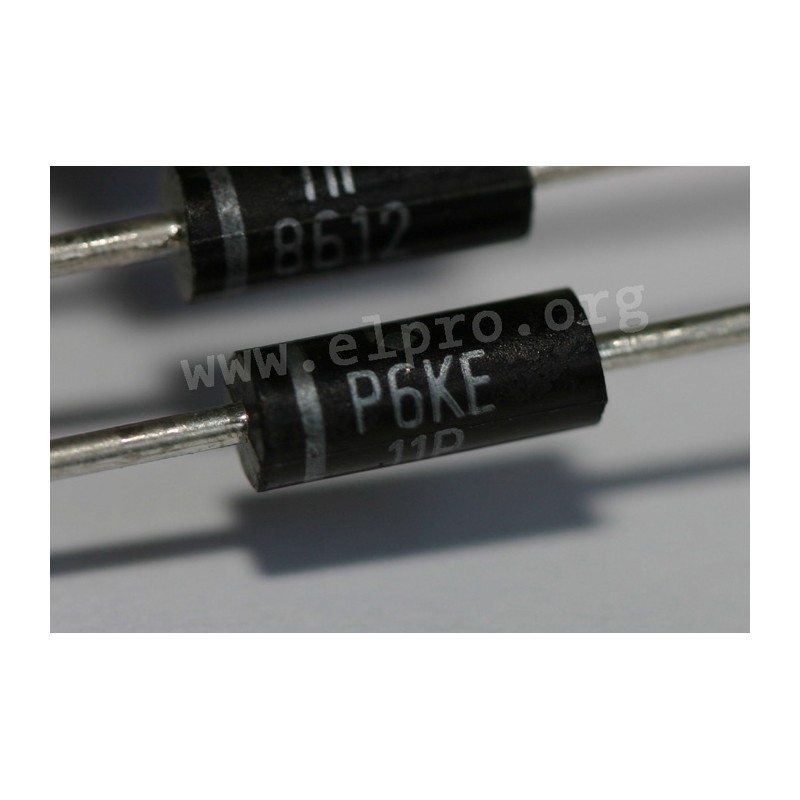

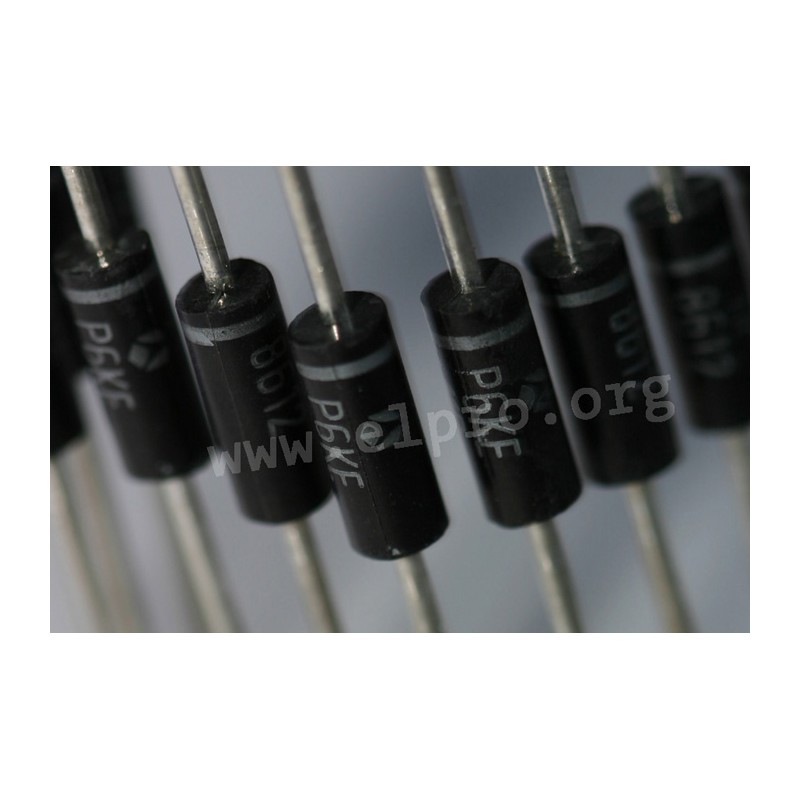

Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

P 6 KE A

P 6 KE A 350 V

487 P 6 KE A 350 V P 6 KE A 350 V Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE. Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

Discontinued items. Only remainder of stock available.

Specifications

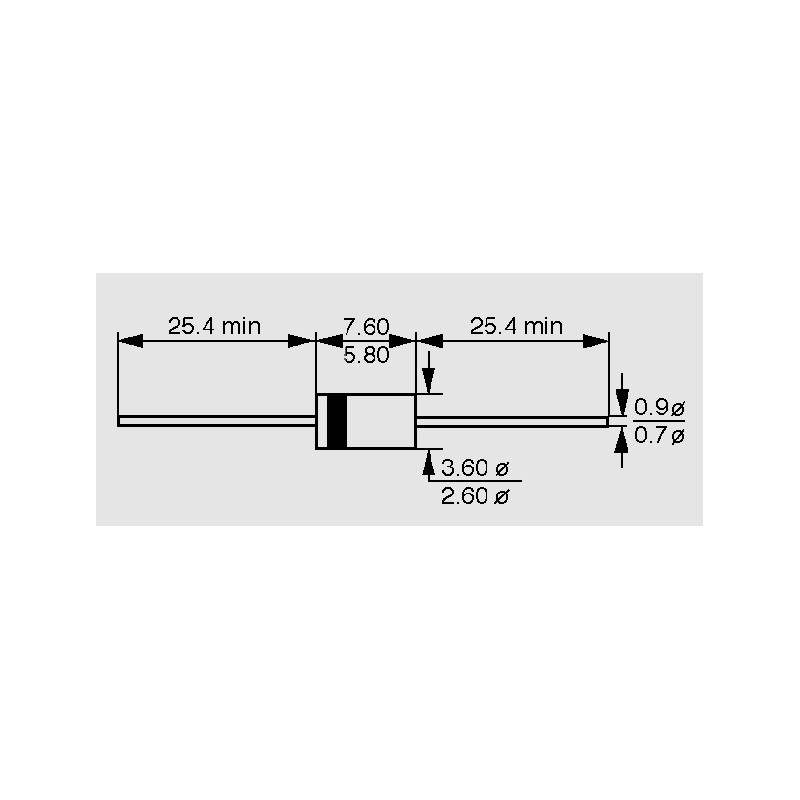

Case DO15
Reverse current [µA] 5
Stand-off voltage [V] 47,8
Breakdown voltage [V] 53,2
Test current [mA] 1
Max. clamping voltage [V] 77
Reverse peak pulse current [A] 8,1
Nominal voltage [V] 350
Data Sheet

Unit price

0,135 €

Stock: 90

Minimum order quantity 1 to 40 units or multiples of 50 plus 0 to 40 .
