P 6 KE A 39 V

Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE

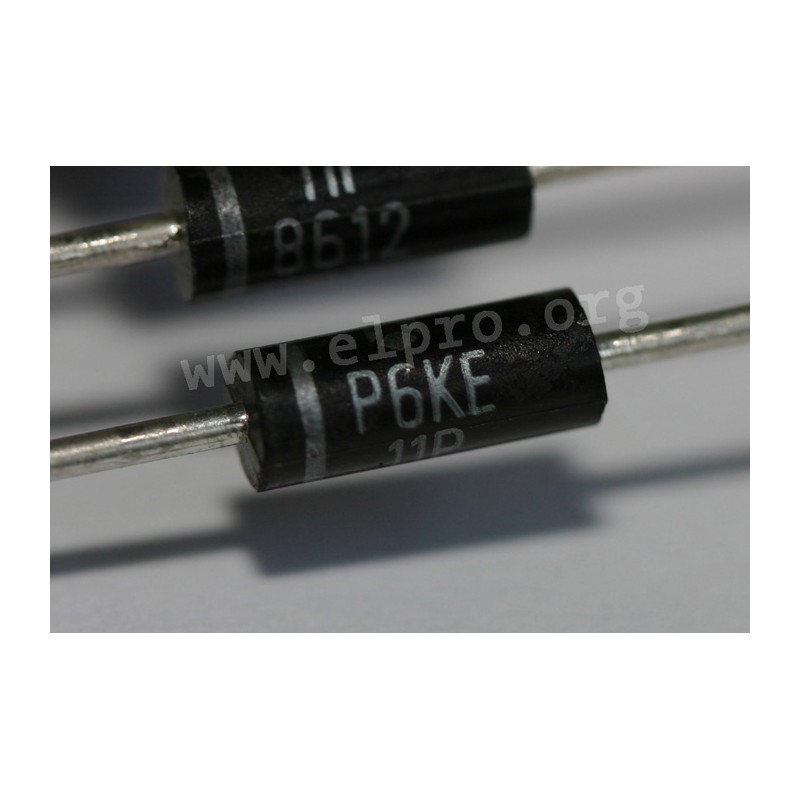

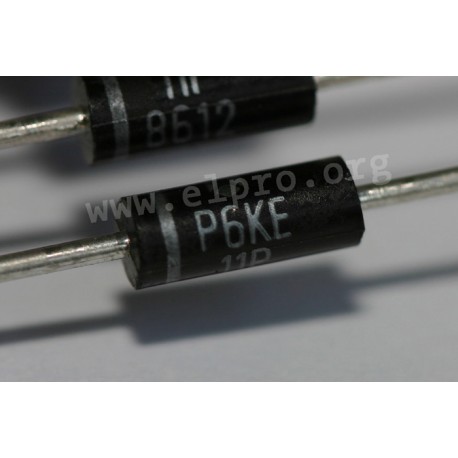

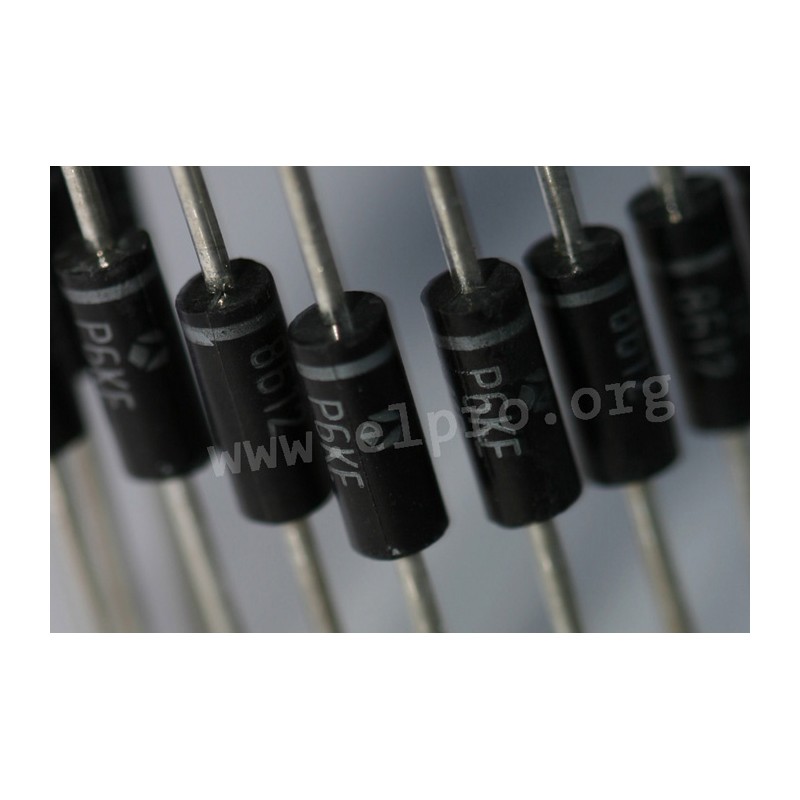

Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

P 6 KE A

P 6 KE A 39 V

490 P 6 KE A 39 V P6KE39A P6KE39A Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE. Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

Specifications

manufacturer
Manufacturer's name P6KE39A

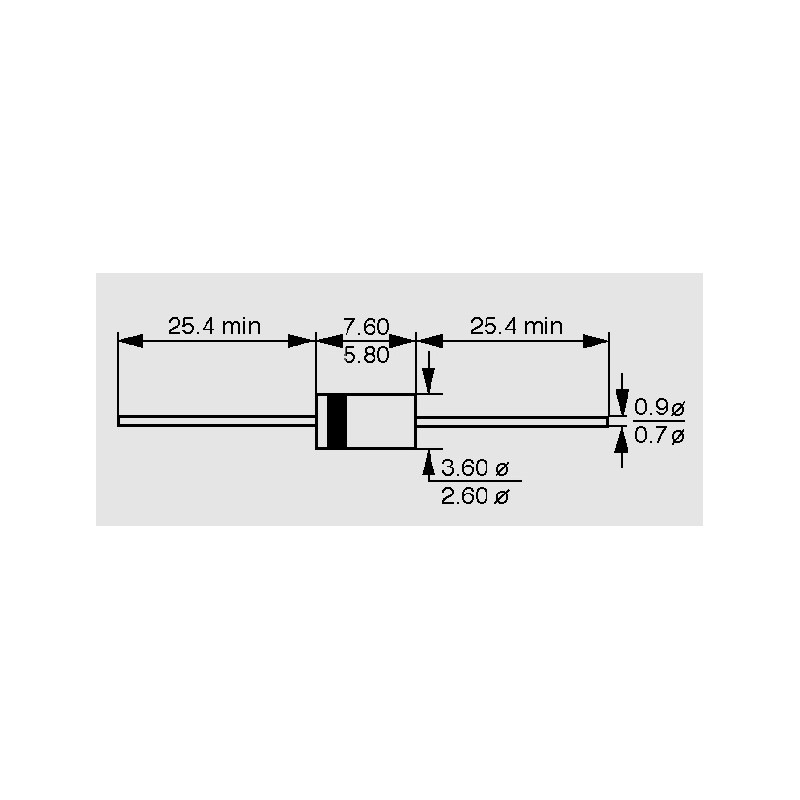

Case DO15
Reverse current [µA] 5
Stand-off voltage [V] 33,3
Breakdown voltage [V] 37,1
Test current [mA] 1
Max. clamping voltage [V] 53,9
Reverse peak pulse current [A] 11,6
Nominal voltage [V] 39
Data Sheet

Unit price

0,121 €

Stock: 3553
Further delivery:
CW 02/2027

Minimum order quantity 1 to 3 units or multiples of 50 plus 0 to 3 .
