P 6 KE A 6,8 V

Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE

Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

P 6 KE A

P 6 KE A 6,8 V

498 P 6 KE A 6,8 V P6KE6.8A P6KE6.8A Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE. Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

Specifications

manufacturer
Manufacturer's name P6KE6.8A

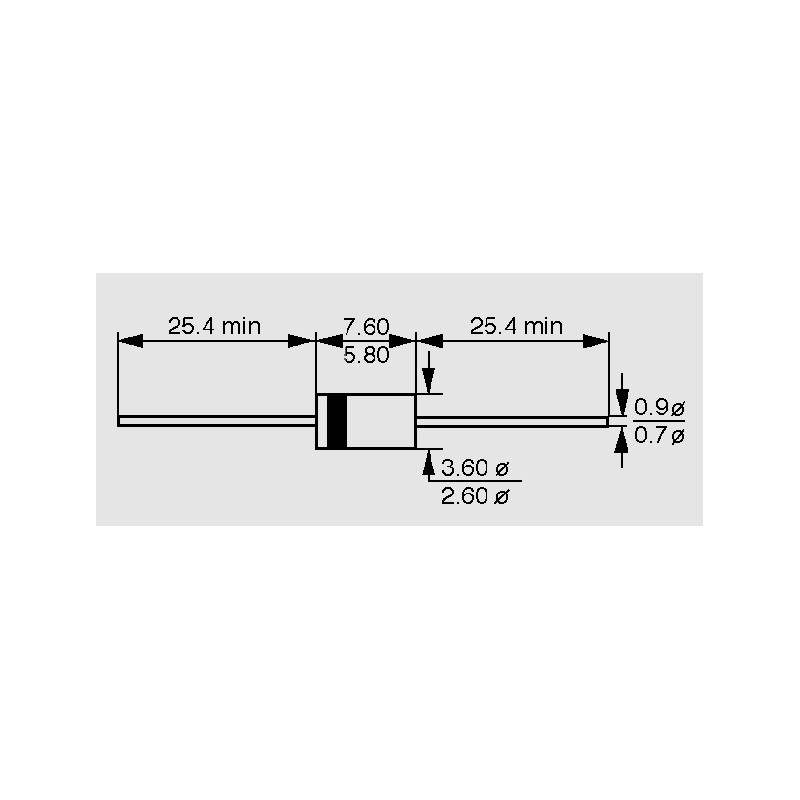

Case DO15
Reverse current [µA] 1000
Stand-off voltage [V] 5,8
Breakdown voltage [V] 6,45
Test current [mA] 10
Max. clamping voltage [V] 10,5
Reverse peak pulse current [A] 60
Nominal voltage [V] 6,8
Data Sheet

Unit price

0,089 €

Stock: 14531
Next incoming goods:
CW 39/2026
28000 units

Further delivery:
CW 02/2027

Minimum order quantity 1 to 31 units or multiples of 50 plus 0 to 31 .
