P 6 KE CA 15 V

Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE

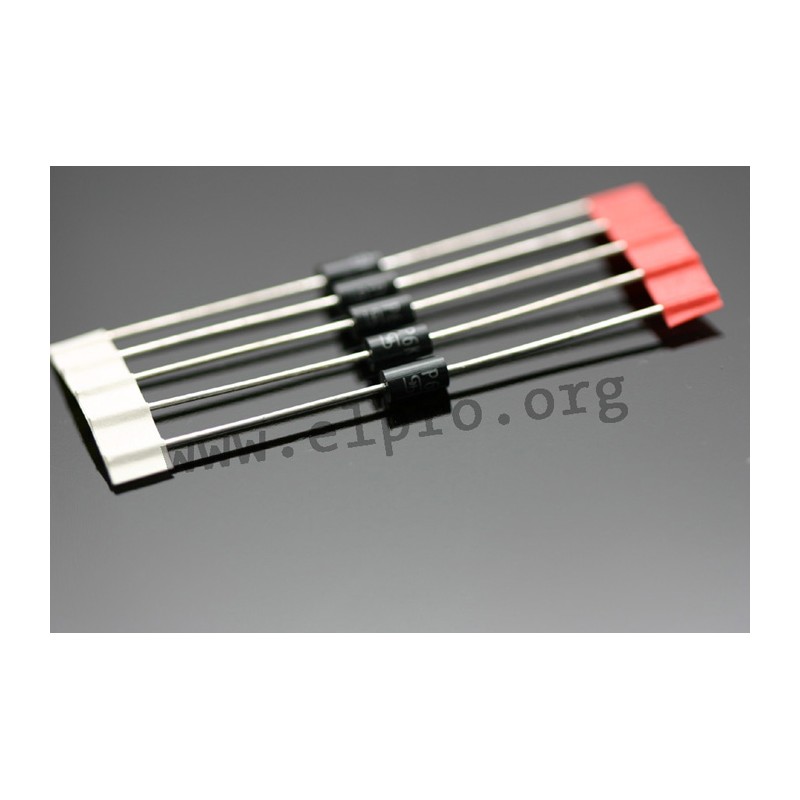

Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

P 6 KE CA

P 6 KE CA 15 V

514 P 6 KE CA 15 V P6KE15CA P6KE15CA Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE. Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

Specifications

manufacturer
Manufacturer's name P6KE15CA

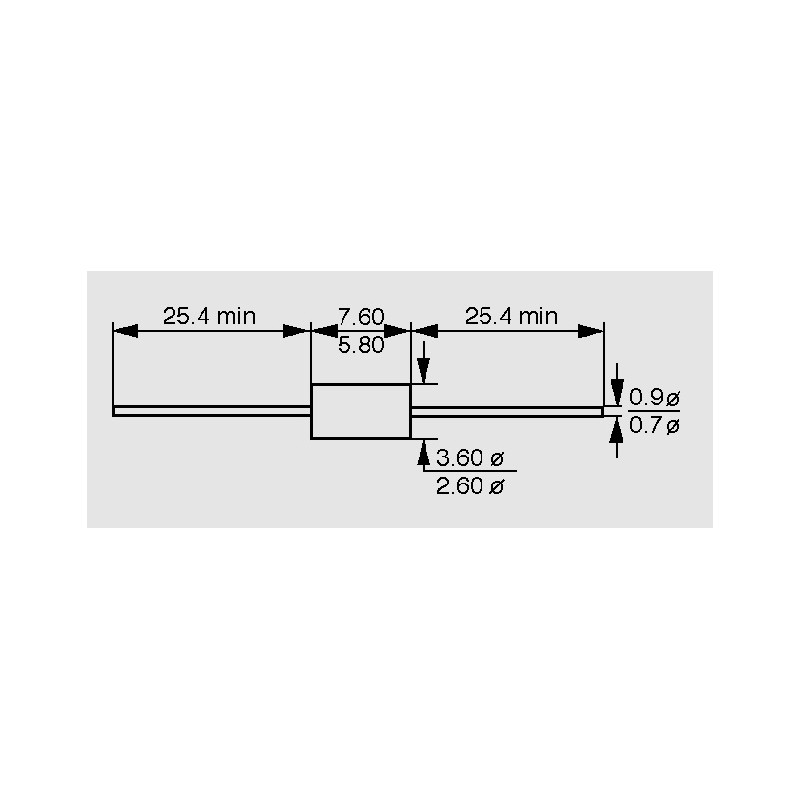

Case DO15
Reverse current [µA] 5
Stand-off voltage [V] 12,8
Test current [mA] 1
Breakdown voltage [V] 14,3
Max. clamping voltage [V] 21,2
Reverse peak pulse current [A] 29
Nominal voltage [V] 15
Data Sheet

Unit price

0,141 €

Stock: 4609
Further delivery:
CW 02/2027

Minimum order quantity 1 to 9 units or multiples of 50 plus 0 to 9 .
