P 6 KE CA 27 V

Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE

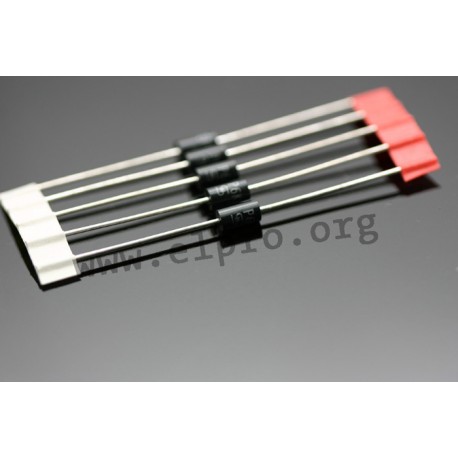

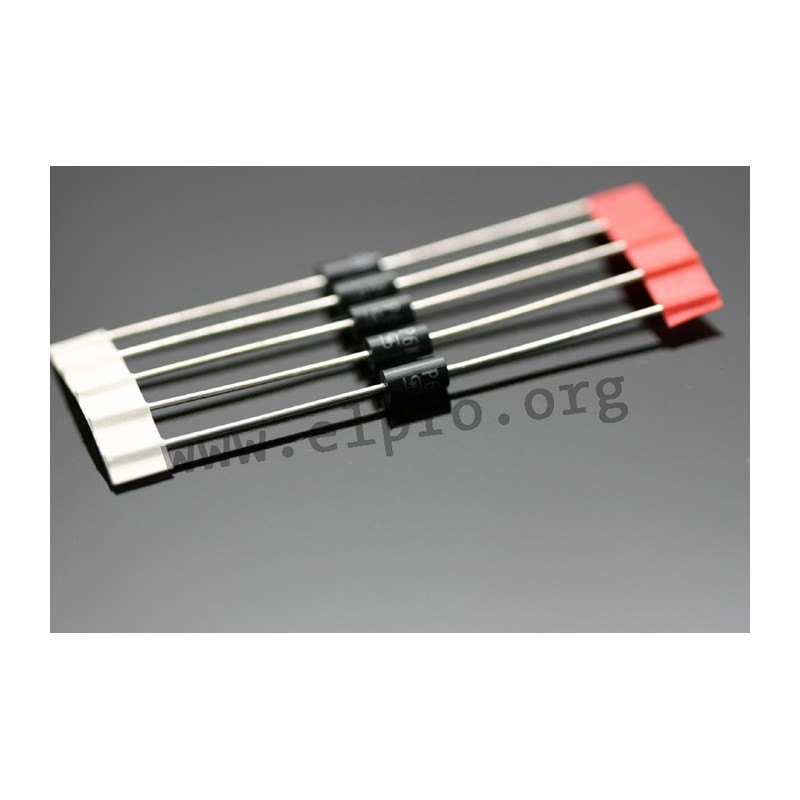

Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

P 6 KE CA

P 6 KE CA 27 V

524 P 6 KE CA 27 V P6KE27CA P6KE27CA Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE. Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

Specifications

manufacturer
Manufacturer's name P6KE27CA

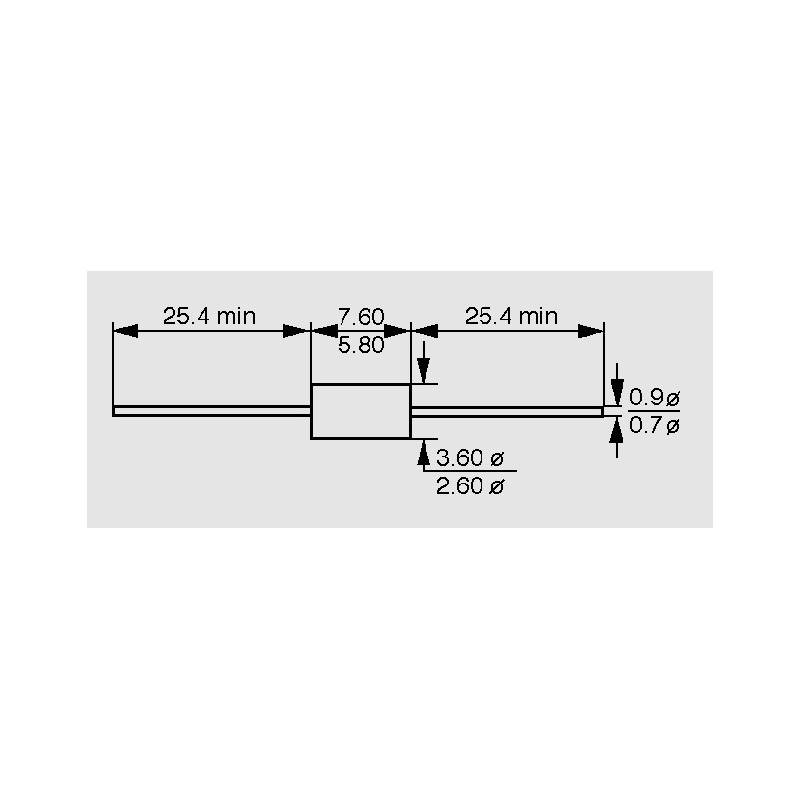

Case DO15
Reverse current [µA] 5
Stand-off voltage [V] 23,1
Breakdown voltage [V] 25,7
Test current [mA] 1
Max. clamping voltage [V] 37,5
Reverse peak pulse current [A] 16,8
Nominal voltage [V] 27
Data Sheet

Unit price

0,141 €

Stock: 4155
Further delivery:
CW 03/2027

Minimum order quantity 1 to 5 units or multiples of 50 plus 0 to 5 .
