P 6 KE CA 30 V

Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE

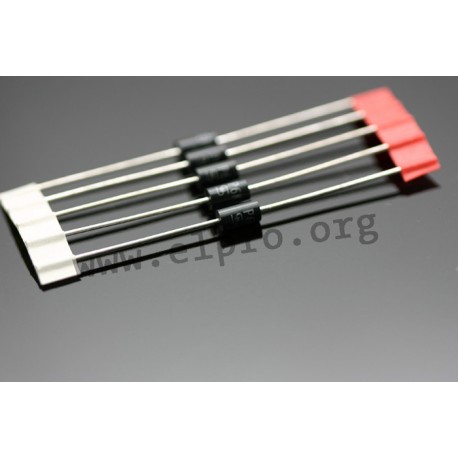

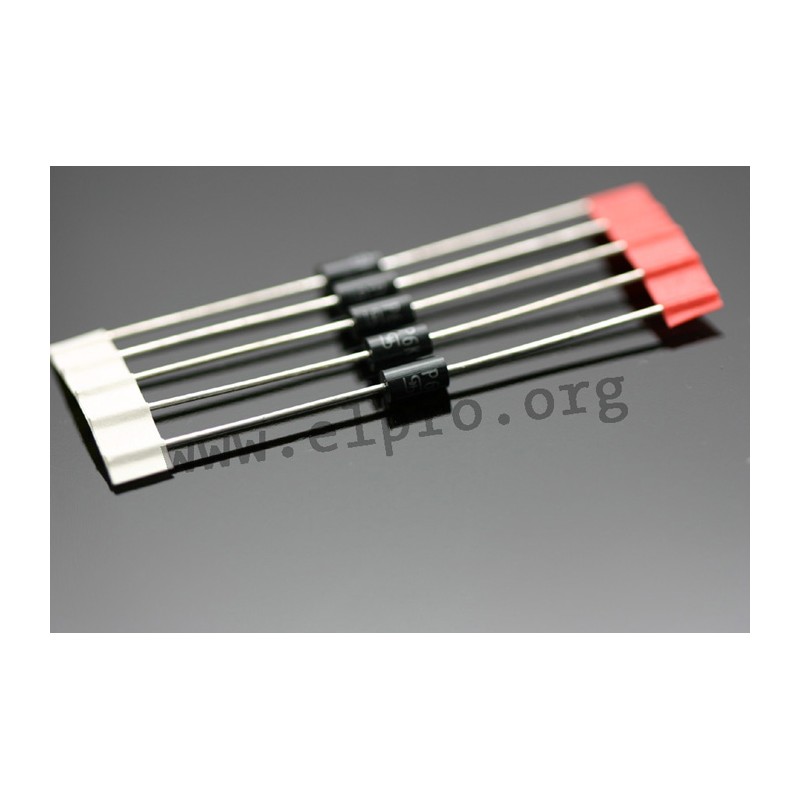

Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

P 6 KE CA

P 6 KE CA 30 V

526 P 6 KE CA 30 V P6KE30CA P6KE30CA Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE. Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

Specifications

manufacturer
Manufacturer's name P6KE30CA

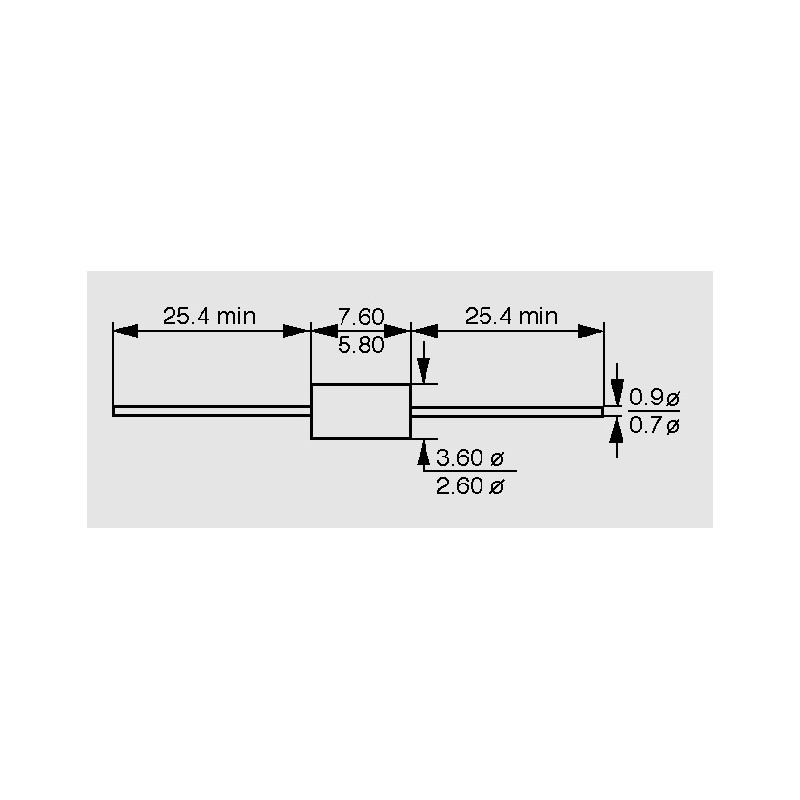

Case DO15
Reverse current [µA] 5
Stand-off voltage [V] 25,6
Test current [mA] 1
Breakdown voltage [V] 28,5
Max. clamping voltage [V] 41,4
Reverse peak pulse current [A] 15
Nominal voltage [V] 30
Data Sheet

Unit price

0,141 €

Stock: 3050
Further delivery:
CW 51/2026

Minimum order quantity 50 units or
multiples of 50.
