> Semiconductors>Diodes>Transient voltage suppressor diodes>Taiwan Semiconductor transient voltage suppression diodes, 600W, BZW06 and P6KE series>P 6 KE CA 33 V

Manufacturers

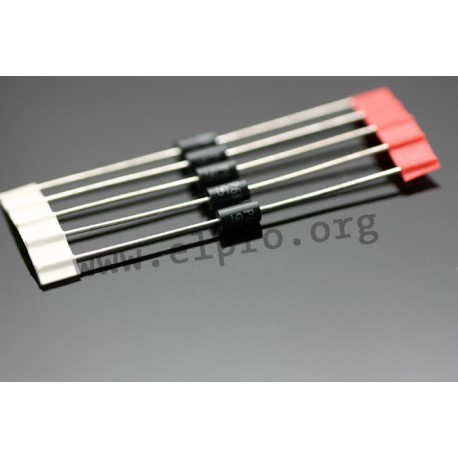

P 6 KE CA 33 V

Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE

Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

P 6 KE CA

P 6 KE CA 33 V

528 P 6 KE CA 33 V P6KE33CA P6KE33CA Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE. Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

Specifications

manufacturer
Manufacturer's name P6KE33CA

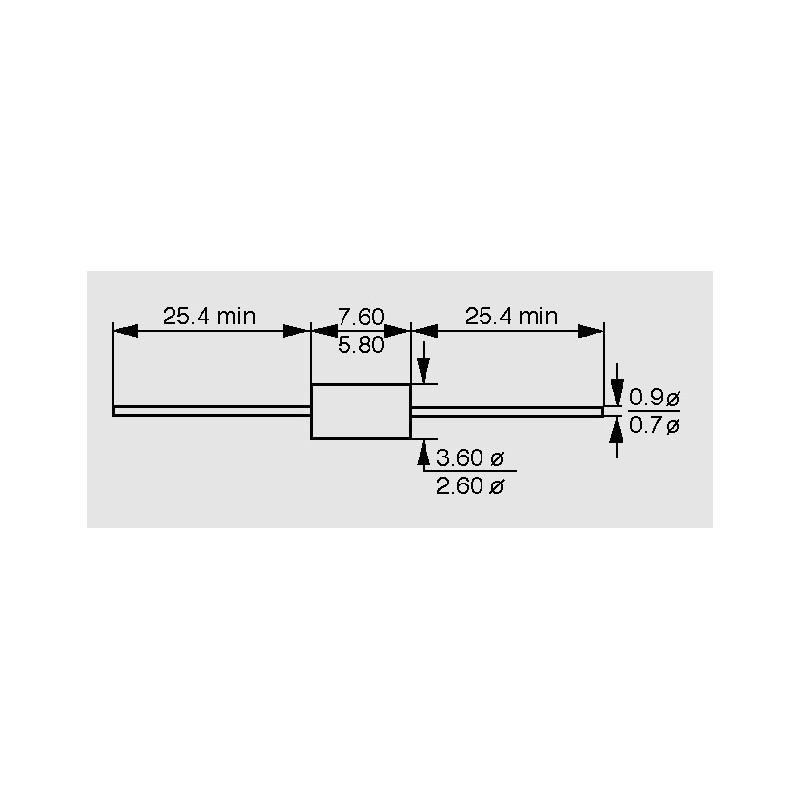

Case DO15
Reverse current [µA] 5
Stand-off voltage [V] 28,2
Test current [mA] 1
Breakdown voltage [V] 31,4
Max. clamping voltage [V] 45,7
Reverse peak pulse current [A] 13,8
Nominal voltage [V] 33
Data Sheet

Unit price

0,107 €

Stock: 23805
Further delivery:
CW 51/2026

Minimum order quantity 1 to 5 units or multiples of 50 plus 0 to 5 .
