P 6 KE CA 400 V

Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE

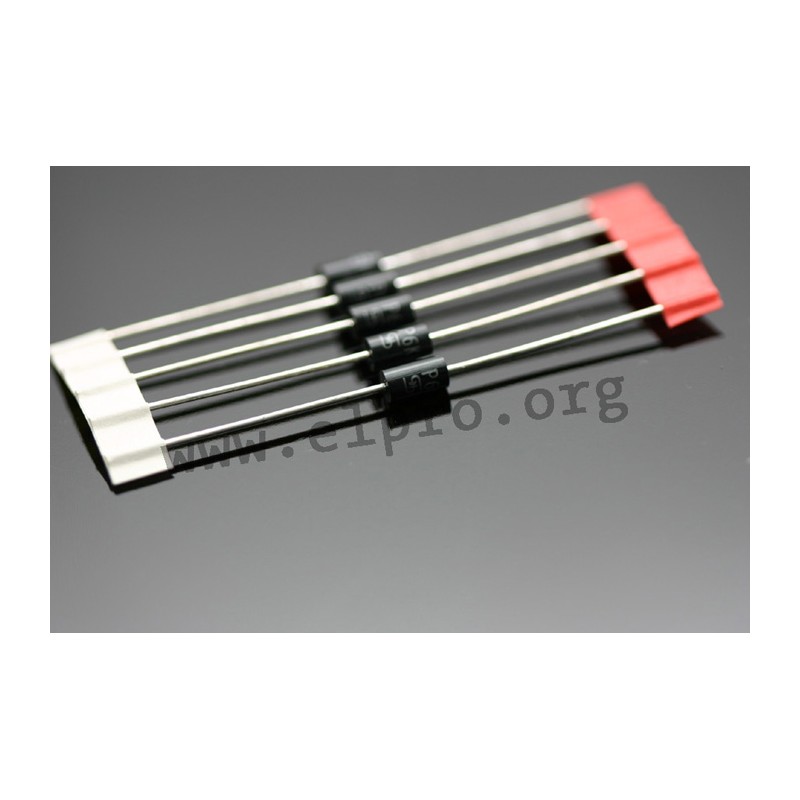

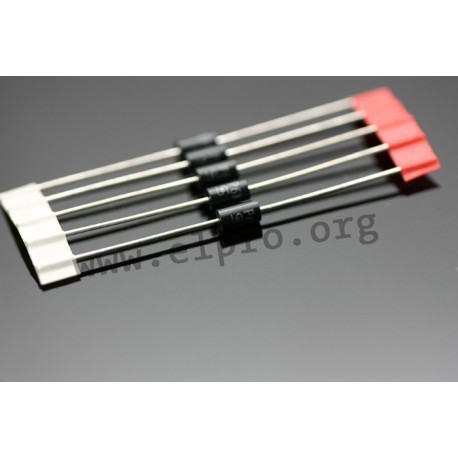

Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

P 6 KE CA

P 6 KE CA 400 V

534 P 6 KE CA 400 V P6KE400CA P6KE400CA Taiwan Semiconductor transient voltage suppression diodes series BZW06 and P6KE. Taped transient voltage suppression diodes in a DO15 housing and with 600W. The plastic conforms with UL94V-0 and are available in a unipolar (BZW 06, P 6 KE A) or bipolar (BZW 06 B, P 6 KE CA) type. We offer various types of this Taiwan Semiconductor series.

Specifications

manufacturer
Manufacturer's name P6KE400CA

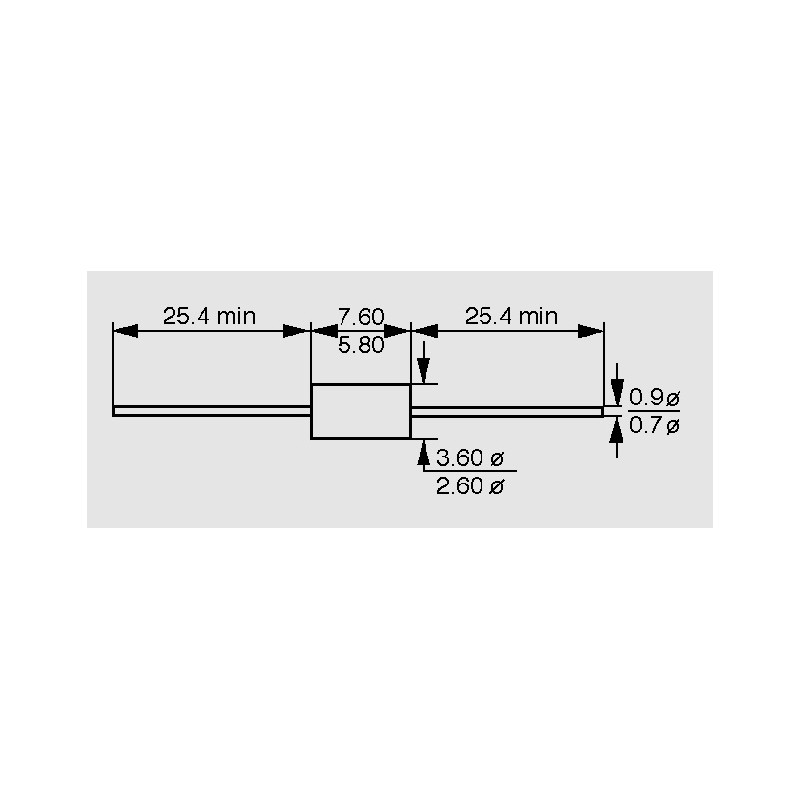

Case DO15
Reverse current [µA] 5
Stand-off voltage [V] 342
Breakdown voltage [V] 380
Test current [mA] 1
Max. clamping voltage [V] 548
Reverse peak pulse current [A] 1,1
Nominal voltage [V] 400
Data Sheet

Unit price

0,182 €

Stock: 22948
Further delivery:
CW 07/2027

Minimum order quantity 1 to 48 units or multiples of 50 plus 0 to 48 .
