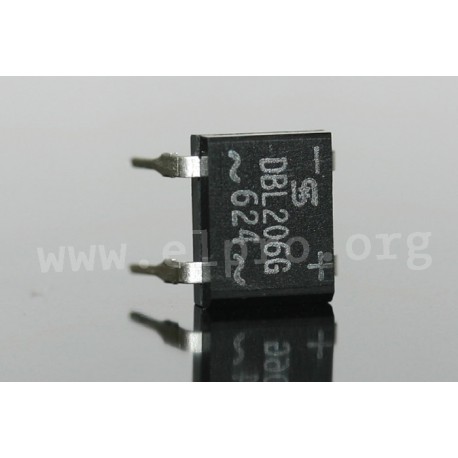

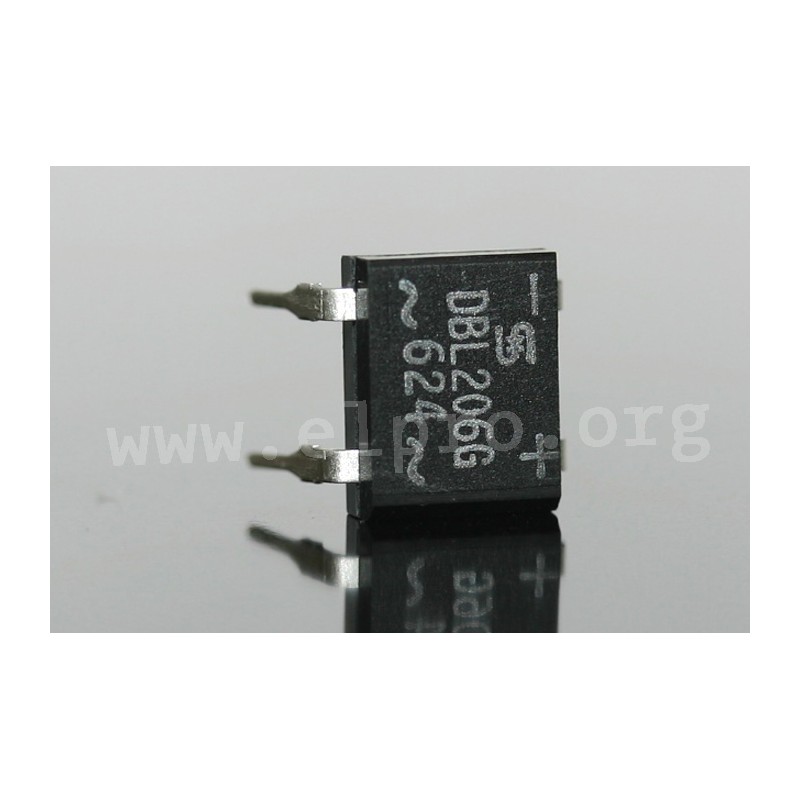

DF 08 M 2A

Taiwan Semiconductor rectifier series DBL

  • bridge rectifiers
  • glass passivated
  • in a DIL housing
  • suitable for PCB mounting
  • comply with AEC-Q101
  • operating temperature: -55 to +150°C
  • maximal solderability: 260°C (10s)
  • forward current: 2A

DF 08 M 2A

1952 DF 08 M 2A DBL206G DBL206G Taiwan Semiconductor rectifier series DBL. bridge rectifiers glass passivated in a DIL housing suitable for PCB mounting comply with AEC-Q101 operating temperature: -55 to +150°C maximal solderability: 260°C (10s) forward current: 2A

Specifications

manufacturer
Manufacturer's name DBL206G

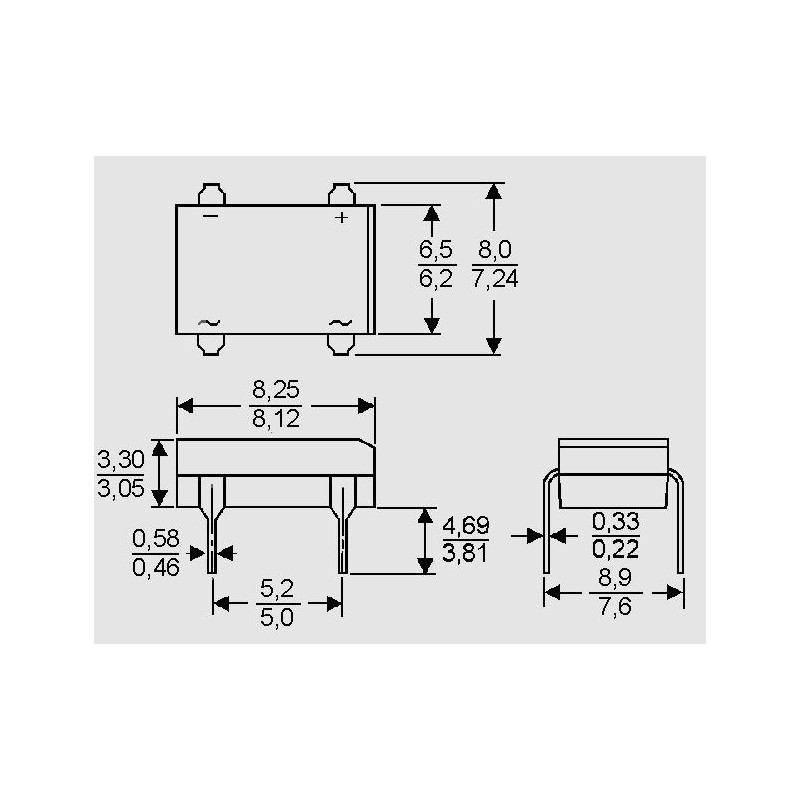

Case Dual-In-Line...
(Max.) peak recurrent reverse voltage [V] 800
Forward voltage [V] 1,15
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 2
(Max.) RMS voltage [V] 560
Data Sheet

Unit price

0,172 €

Stock: 328
Next incoming goods:
CW 51/2024
1000 units


Further delivery:
CW 08/2025

Minimum order quantity 1 to 3 units or multiples of 25 plus 0 to 3 .
