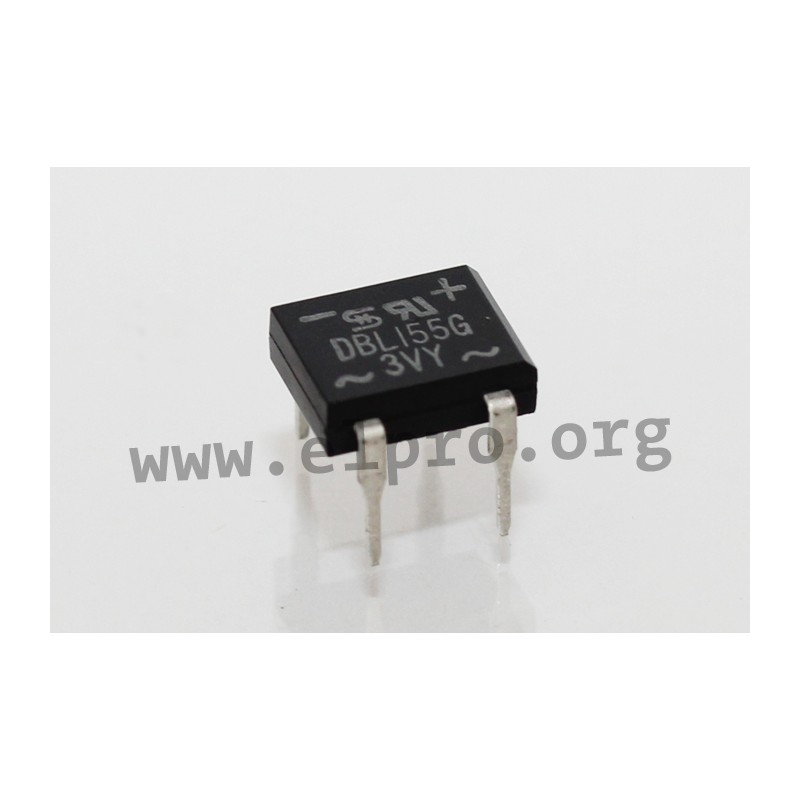

DBL 155 G

Taiwan Semiconductor rectifier series DBL

  • glass passivated bridge rectifiers
  • in a DIL housing
  • suitable for PCB mounting
  • comply with AEC-Q101
  • operating temperature: -55 to +150°C
  • maximal solderability: 260°C (10s)
  • forward current: 1,5A
DBL 155 G

DBL 155 G

45884 DBL 155 G DBL155G DBL155G Taiwan Semiconductor rectifier series DBL. glass passivated bridge rectifiers in a DIL housing suitable for PCB mounting comply with AEC-Q101 operating temperature: -55 to +150°C maximal solderability: 260°C (10s) forward current: 1,5A

Specifications

manufacturer
Manufacturer's name DBL155G

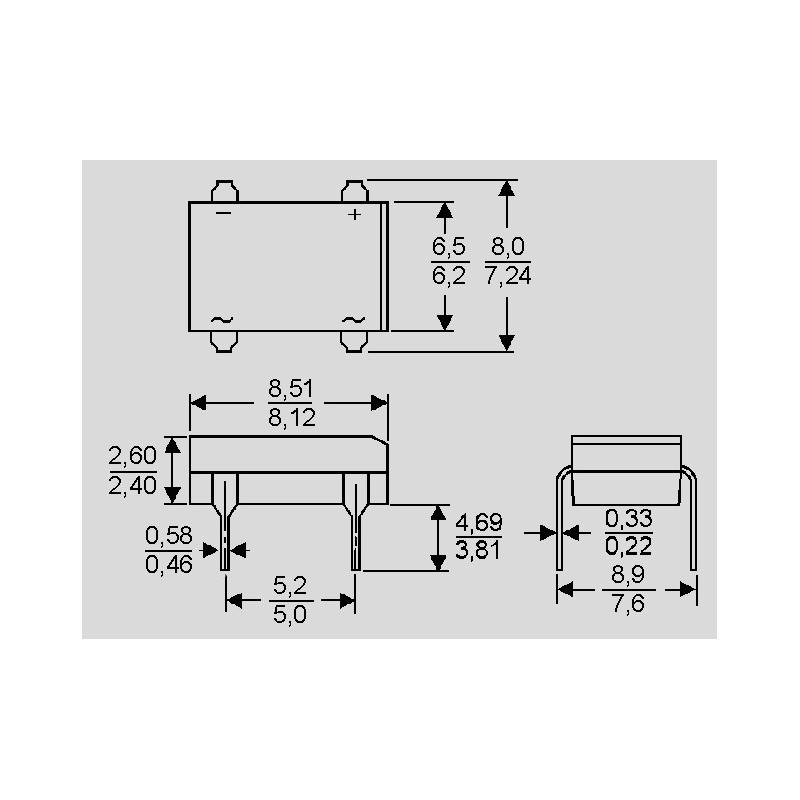

Case DIL
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,1
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 1,5
(Max.) RMS voltage [V] 420
Data Sheet

Unit price

0,271 €

Stock: 1498
Further delivery:
CW 38/2024

Minimum order quantity 1 to 23 units or multiples of 25 plus 0 to 23 .
