B 250 C 35000 DR

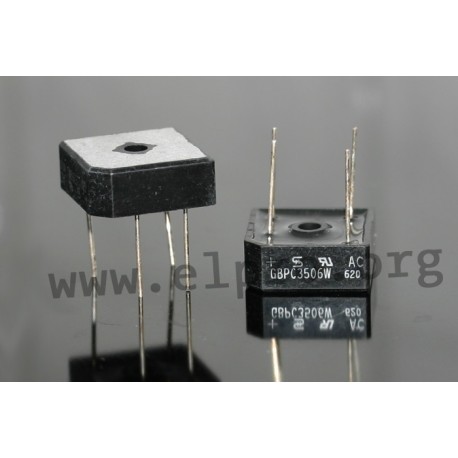

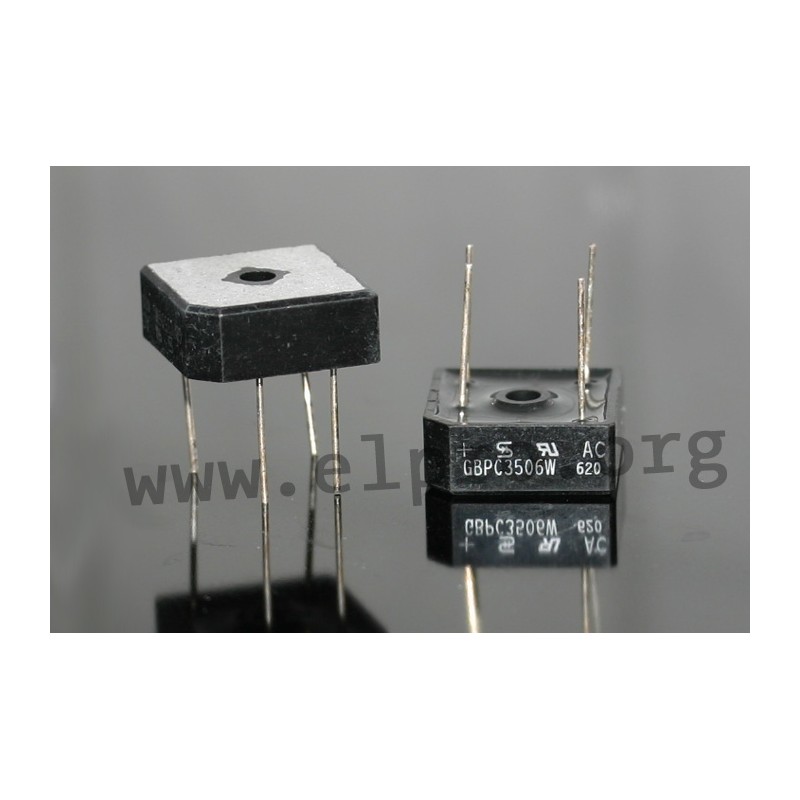

Taiwan Semiconductor bridge rectifier series GBPC35

  • power bridge rectifiers
  • glass passivated
  • comply with UL94V-0
  • with a tab terminal (B_ FS) or a wire bonding (B_ DR)
  • maximal solderability: 260°C (10s)
  • operating temperature: -50 to +150°C
  • forward current: 35A

B 250 C 35000 DR

1974 B 250 C 35000 DR GBPC3506W GBPC3506W Taiwan Semiconductor bridge rectifier series GBPC35. power bridge rectifiers glass passivated comply with UL94V-0 with a tab terminal (B_ FS) or a wire bonding (B_ DR) maximal solderability: 260°C (10s) operating temperature: -50 to +150°C forward current: 35A

Specifications

manufacturer
Manufacturer's name GBPC3506W
Case power bridge...
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,1
(Max.) average forward (rectified) current [A] 35
Reverse current [µA] 5
(Max.) RMS voltage [V] 420
Data Sheet

Unit price

2,09 €

Stock: 625
Further delivery:
CW 08/2025

Minimum order quantity 5 units or
multiples of 5.
