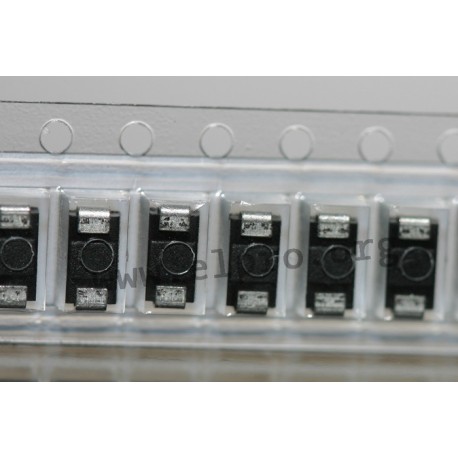

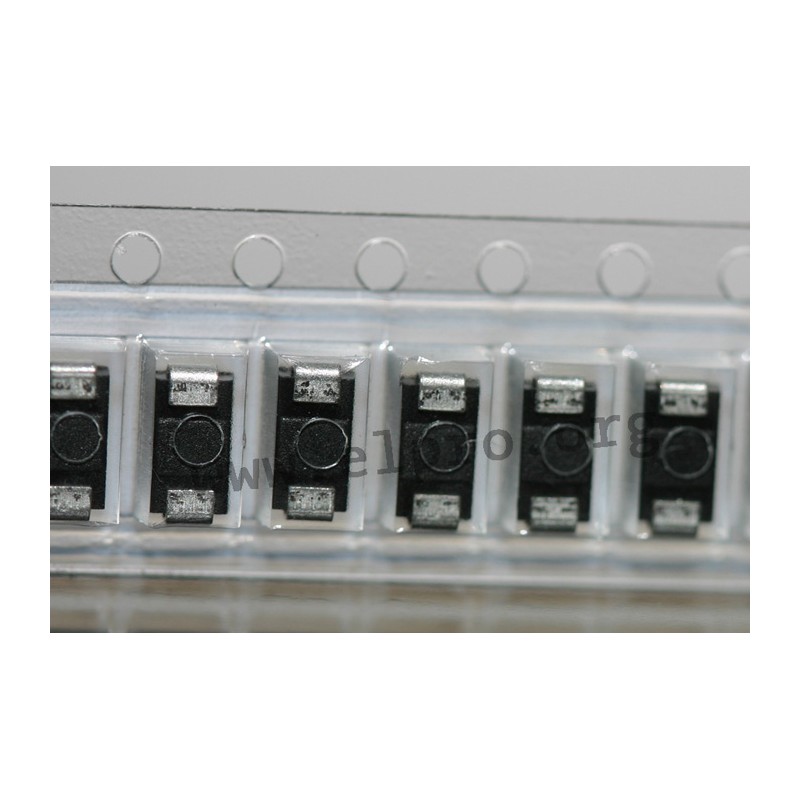

P 4 KE A 15 V SMD

TVS diodes, 400W, SMD

• unipolar
• glass passivated

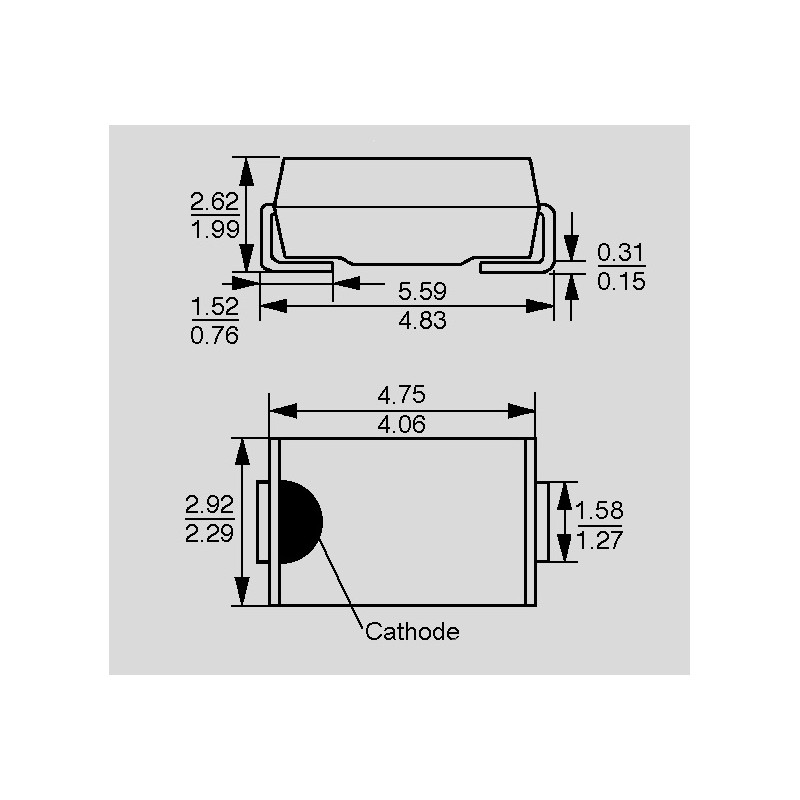

• housing: DO214AC/SMA
• plastic conforms to UL94V-0
• max. solderability 250°C/10s

P 4 KE A 15 V SMD

422 P 4 KE A 15 V SMD P4SMA15A M2G P4SMA15A M2G TVS diodes, 400W, SMD. • unipolar• glass passivated• housing: DO214AC/SMA• plastic conforms to UL94V-0• max. solderability 250°C/10s

Data sheet

manufacturer
manufacturer's name P4SMA15A M2G
case DO214AC/SMA
reverse current [µA] 5
stand-off voltage [V] 12,8
breakdown voltage [V] 14,3
test current [mA] 1
reverse peak pulse current [A] 20
max. clamping voltage [V] 21,2

Download

Data Sheet

1,89 €

Volume discounts

100 pcs. / 0,096 €

stock: 35755
Next incoming:
CW:05/2022
15000 pieces
