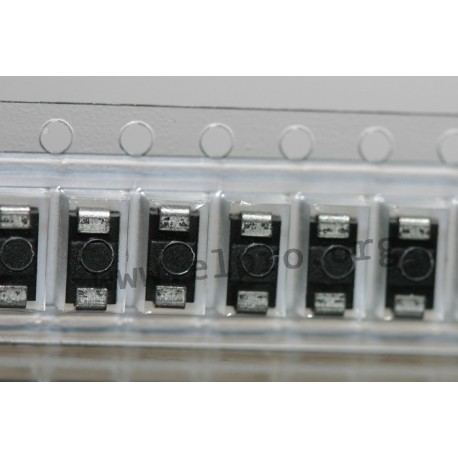

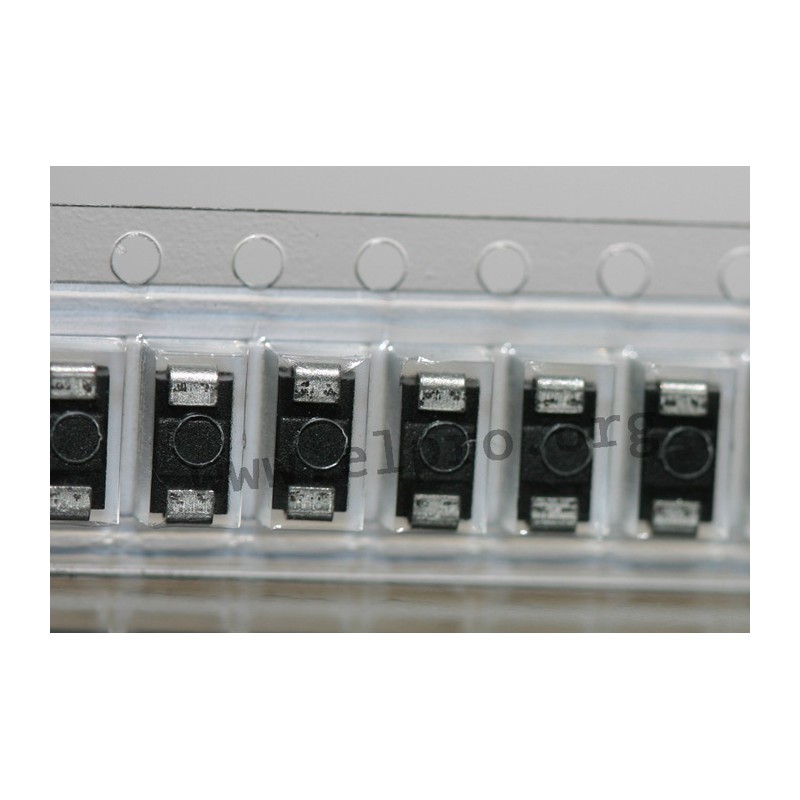

P 4 KE A 18 V SMD

Taiwan Semiconductor TVS diode series P4SMA and SMAJ

  • SMD transient voltage suppression diodes
  • glass passivated
  • in a DO214AC/SMA housing
  • comply with UL94V-0 as well as J-STD-002
  • operating temperature: -55 to +105°C
  • steady state power dissipation: 400W

P 4 KE A 18 V SMD

424 P 4 KE A 18 V SMD P4SMA18A P4SMA18A Taiwan Semiconductor TVS diode series P4SMA and SMAJ. SMD transient voltage suppression diodes glass passivated in a DO214AC/SMA housing comply with UL94V-0 as well as J-STD-002 operating temperature: -55 to +105°C steady state power dissipation: 400W

Specifications

manufacturer
Manufacturer's name P4SMA18A

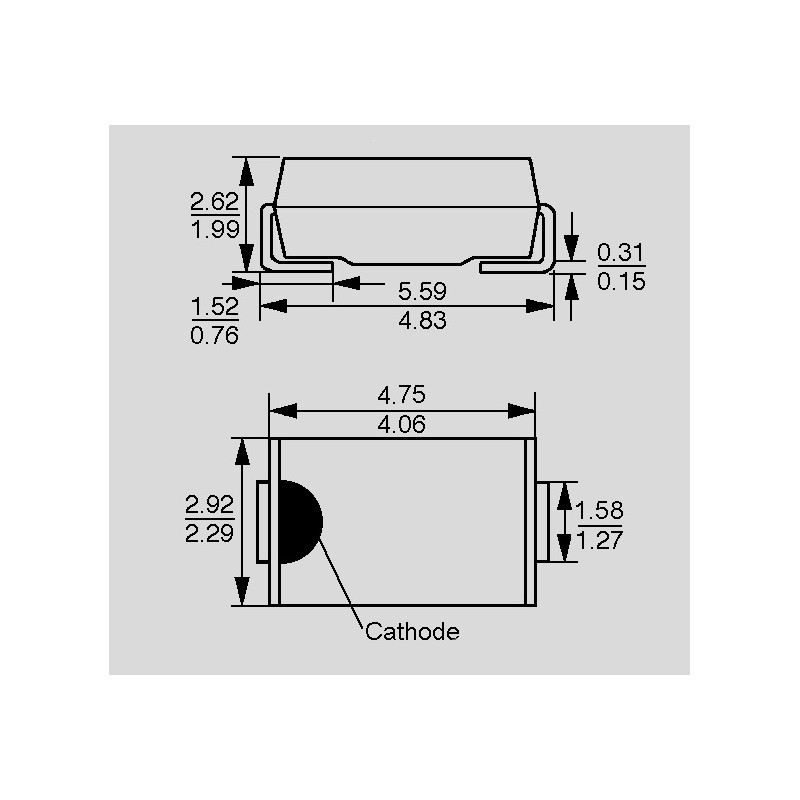

Case DO214AC/SMA
Reverse current [µA] 5
Stand-off voltage [V] 15,3
Breakdown voltage [V] 17,1
Test current [mA] 1
Max. clamping voltage [V] 25,5
Reverse peak pulse current [A] 16,5
Data Sheet

Unit price

0,105 €

Stock: 6100
Next incoming goods:
CW 22/2024
7500 units


Further delivery:
CW 35/2024

Minimum order quantity 100 units or
multiples of 100.
