P 6 KE A 18 V SMD

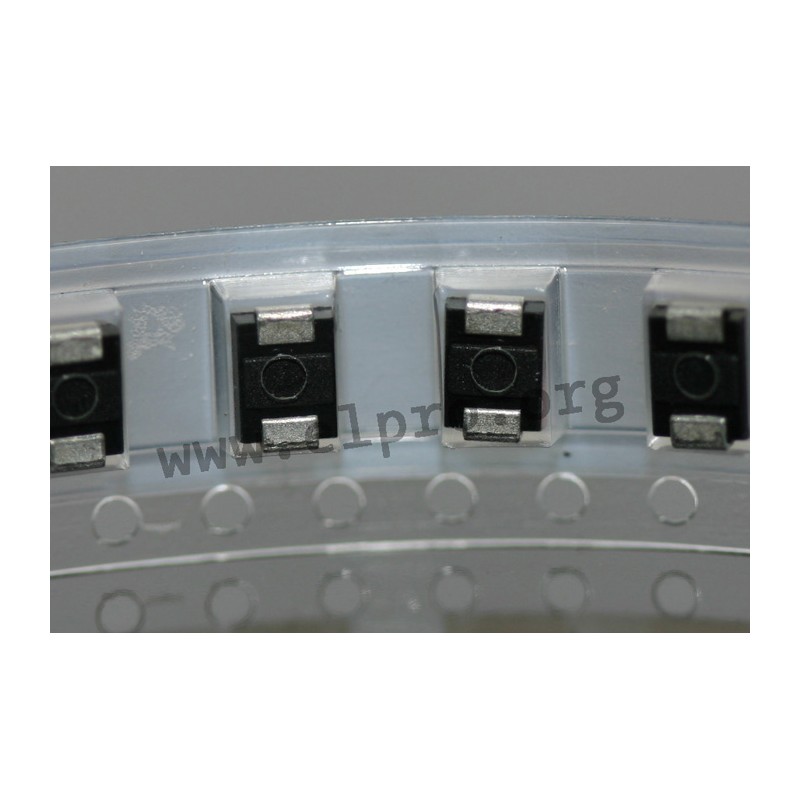

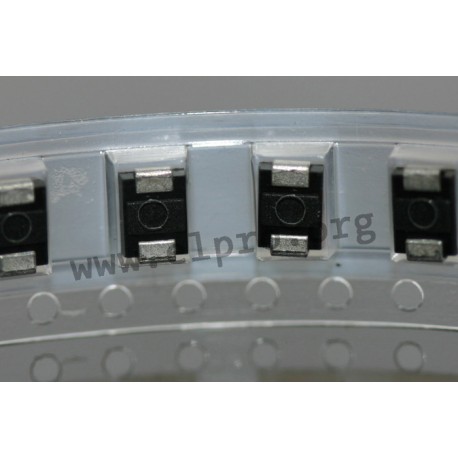

Taiwan Semiconductor transient voltage suppression diode series P6SMB A

  • TVS diodes in a DO-214AA (SMB) housing
  • comply with UL94V-0
  • with a glass passivated junction
  • peak pulse power dissipation: 600W
  • forward voltage P 6 KE_6.8 V to P 6 KE_68 V: 3,5V
  • forward voltage P 6 KE_100  V to P 6 KE_200 V: 5V

P 6 KE A 18 V SMD

470 P 6 KE A 18 V SMD P6SMB18A P6SMB18A Taiwan Semiconductor transient voltage suppression diode series P6SMB A. TVS diodes in a DO-214AA (SMB) housing comply with UL94V-0 with a glass passivated junction peak pulse power dissipation: 600W forward voltage P 6 KE_6.8 V to P 6 KE_68 V: 3,5V forward voltage P 6 KE_100  V to P 6 KE_200 V: 5V

Specifications

manufacturer
Manufacturer's name P6SMB18A
Case DO214AA/SMB
Reverse current [µA] 5
Stand-off voltage [V] 15,3
Test current [mA] 1
Breakdown voltage [V] 17,1
Max. clamping voltage [V] 25,2
Reverse peak pulse current [A] 25
Reverse voltage [V] 15,3
Data Sheet

Unit price

1,51 €

Volume discounts

Quantity Unit price
100 + 0,119 €

Stock: 65524
