P 6 KE A 200 V SMD

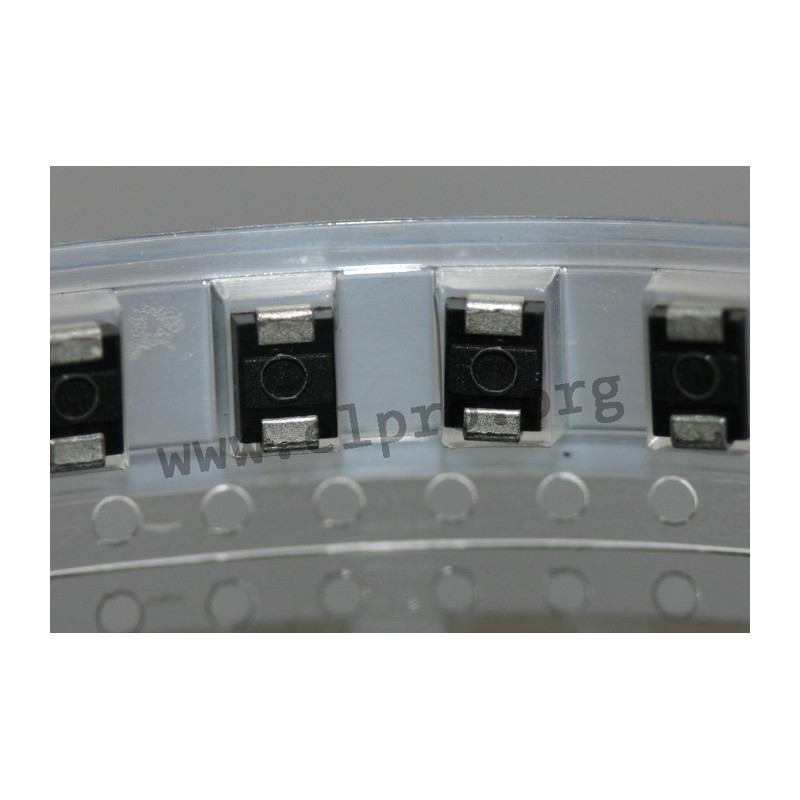

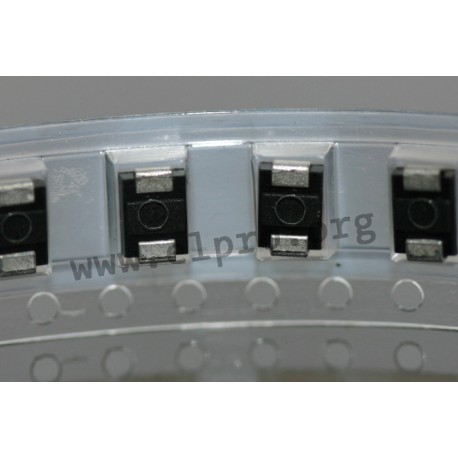

Taiwan Semiconductor transient voltage suppression diode series P6SMB A

  • TVS diodes in a DO-214AA (SMB) housing
  • comply with UL94V-0
  • with a glass passivated junction
  • peak pulse power dissipation: 600W
  • forward voltage P 6 KE_6.8 V to P 6 KE_68 V: 3,5V
  • forward voltage P 6 KE_100  V to P 6 KE_200 V: 5V

P 6 KE A 200 V SMD

474 P 6 KE A 200 V SMD P6SMB200A P6SMB200A Taiwan Semiconductor transient voltage suppression diode series P6SMB A. TVS diodes in a DO-214AA (SMB) housing comply with UL94V-0 with a glass passivated junction peak pulse power dissipation: 600W forward voltage P 6 KE_6.8 V to P 6 KE_68 V: 3,5V forward voltage P 6 KE_100  V to P 6 KE_200 V: 5V

Specifications

manufacturer
Manufacturer's name P6SMB200A
Case DO214AA/SMB
Reverse current [µA] 5
Stand-off voltage [V] 171
Breakdown voltage [V] 190
Test current [mA] 1
Max. clamping voltage [V] 274
Reverse peak pulse current [A] 2,2
Reverse voltage [V] 171
Data Sheet Data Sheet

Unit price

0,121 €

Stock: 2400
Further delivery:
CW 11/2025

Minimum order quantity 100 units or
multiples of 100.
