P 6 KE CA 30 V SMD

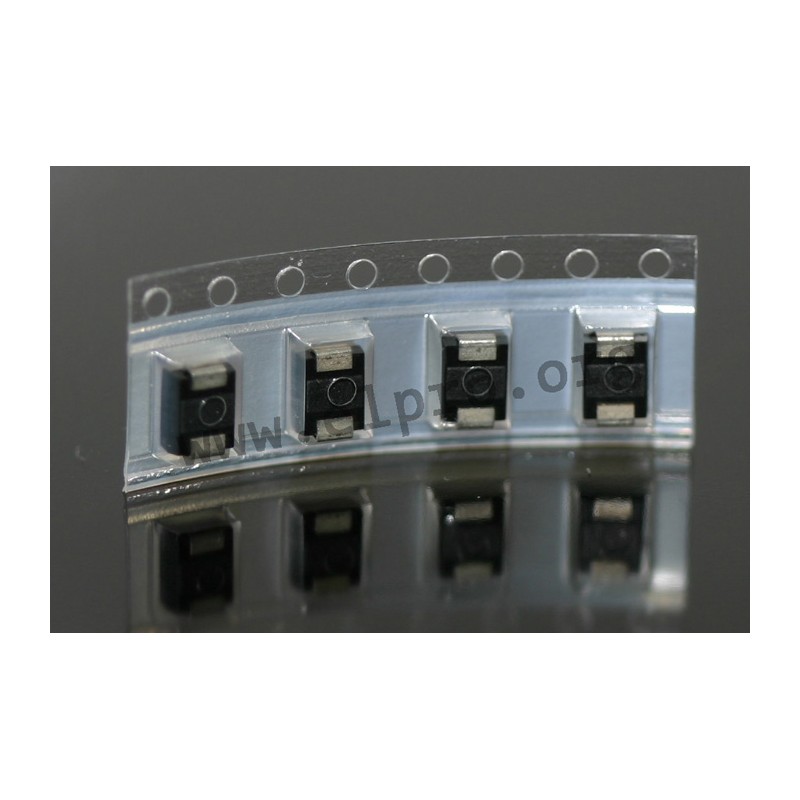

Taiwan Semiconductor transient voltage suppression diode series P6SMB A

  • TVS diodes in a DO-214AA (SMB) housing
  • comply with UL94V-0
  • with a glass passivated junction
  • peak pulse power dissipation: 600W
  • forward voltage P 6 KE_6.8 V to P 6 KE_68 V: 3,5V
  • forward voltage P 6 KE_100  V to P 6 KE_200 V: 5V

P 6 KE CA 30 V SMD

527 P 6 KE CA 30 V SMD P6SMB30CA P6SMB30CA Taiwan Semiconductor transient voltage suppression diode series P6SMB A. TVS diodes in a DO-214AA (SMB) housing comply with UL94V-0 with a glass passivated junction peak pulse power dissipation: 600W forward voltage P 6 KE_6.8 V to P 6 KE_68 V: 3,5V forward voltage P 6 KE_100  V to P 6 KE_200 V: 5V

Specifications

manufacturer
Manufacturer's name P6SMB30CA
Case DO214AA/SMB
Reverse current [µA] 5
Stand-off voltage [V] 25,6
Breakdown voltage [V] 28,5
Test current [mA] 1
Max. clamping voltage [V] 41,4
Reverse peak pulse current [A] 15
Reverse voltage [V] 25,6
Data Sheet Data Sheet

Unit price

0,097 €

Stock: 18400
Next incoming goods:
CW 50/2024
30000 units


Further delivery:
CW 02/2025

Minimum order quantity 100 units or
multiples of 100.
