> Semiconductors>Diodes>Rectifier diodes>Taiwan Semiconductor rectifier diodes, 0,8A, SMD, fast, RS 1 series>RS 1 GL

Manufacturers

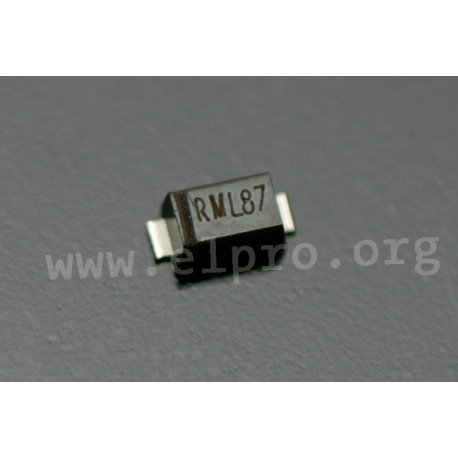

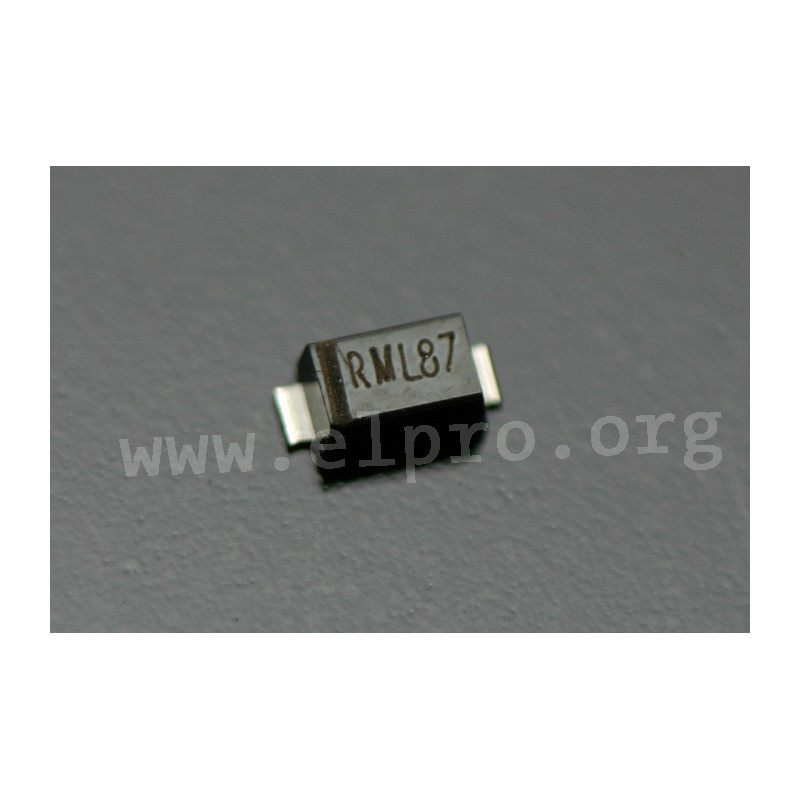

RS 1 GL

SMD fast rectifier diodes 0.8A

* glass-passivated

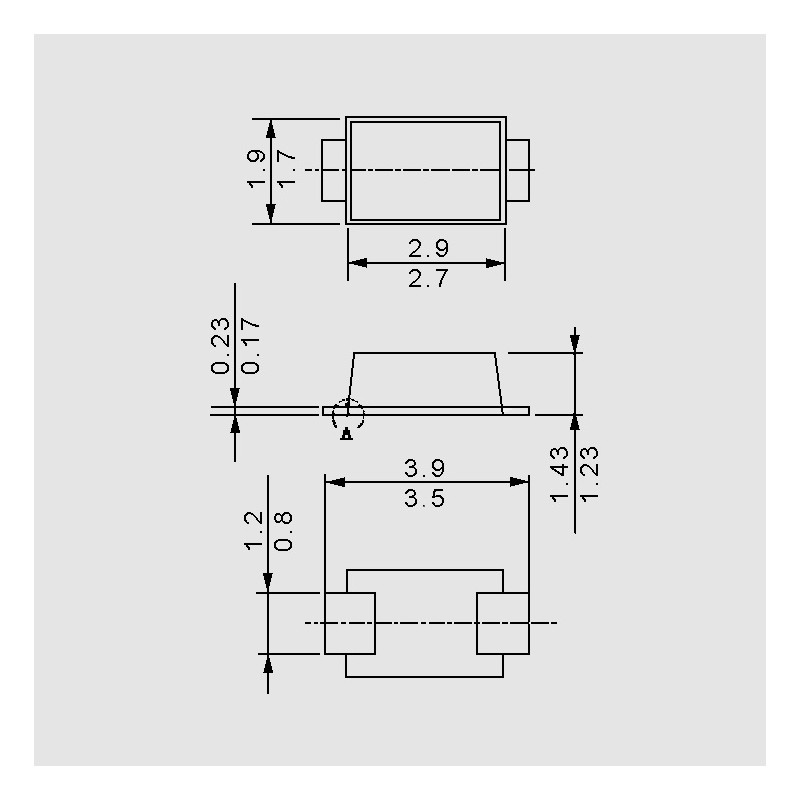

* case: DO219AB/Sub-SMA
* low-profile package
* plastic conforms to UL94V-0
* max. solderability: 260°C/10s

RS 1

RS 1 GL

25255 RS 1 GL RS1GL RS1GL SMD fast rectifier diodes 0.8A. * glass-passivated* case: DO219AB/Sub-SMA* low-profile package* plastic conforms to UL94V-0* max. solderability: 260°C/10s

Specifications

manufacturer
Manufacturer's name RS1GL
Case DO219AB/Sub-SMA
Peak forward surge current [A] 30
Max. reverse recovery time [ns] 150
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 1,3
(Max.) average forward (rectified) current [A] 0,8
Reverse current [µA] 5
Data Sheet

Unit price

0,066 €

Stock: 22500
Further delivery:
CW 48/2027

Minimum order quantity 200 units or
multiples of 200.
