S 8 GC SMD

Taiwan Semiconductor rectifier diode series S8 and S15

  • SMD Si rectifier diodes
  • comply with UL94V-0
  • in a DO214AB/SMC housing
  • solderable according to JESD22-B102
  • glasspassivated
  • forward current: 8 to 15A

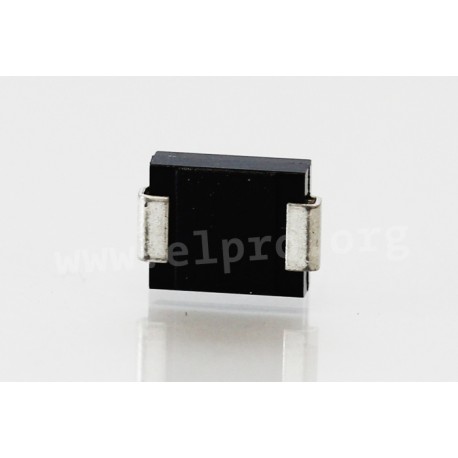

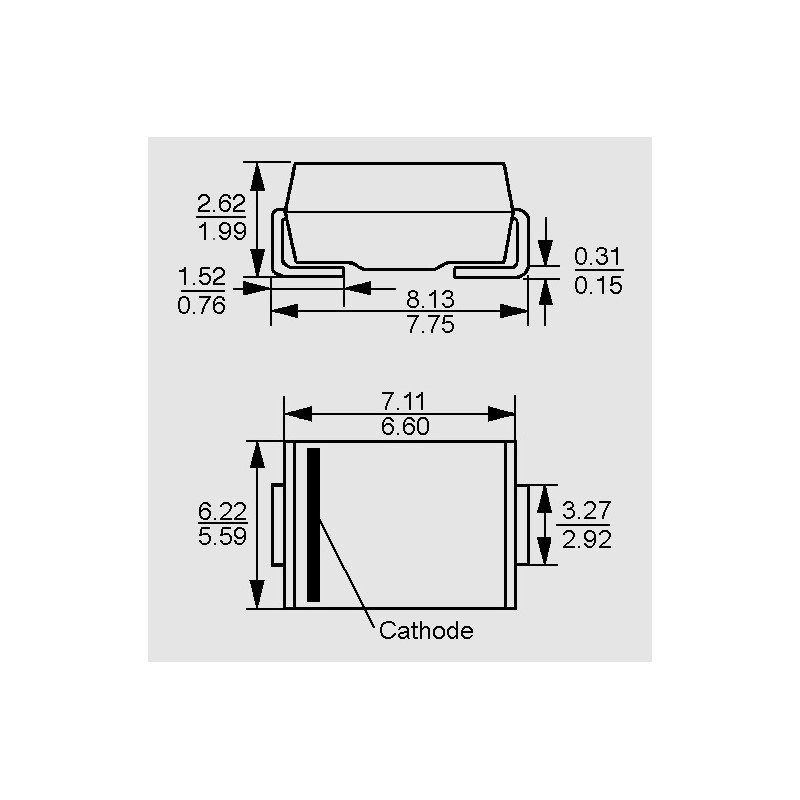

DO214AB/SMC

S 8 GC SMD

44906 S 8 GC SMD S8GC S8GC Taiwan Semiconductor rectifier diode series S8 and S15. SMD Si rectifier diodes comply with UL94V-0 in a DO214AB/SMC housing solderable according to JESD22-B102 glasspassivated  forward current: 8 to 15A

Specifications

manufacturer
Manufacturer's name S8GC
Case DO214AB/SMC
Operating temperature range [°C] -55...+150
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 0,985
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 8
Data Sheet

Unit price

0,146 €

Stock: 5000
Further delivery:
CW 06/2026

Minimum order quantity 100 units or
multiples of 100.
