S 8 MC SMD

Taiwan Semiconductor rectifier diode series S8 and S15

  • SMD Si rectifier diodes
  • comply with UL94V-0
  • in a DO214AB/SMC housing
  • solderable according to JESD22-B102
  • glasspassivated
  • forward current: 8 to 15A

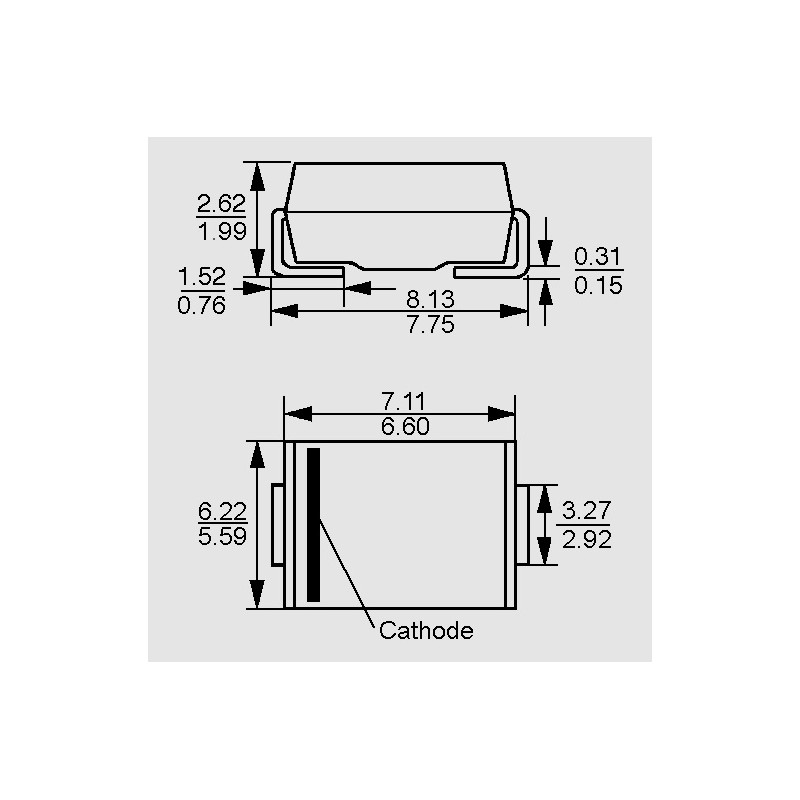

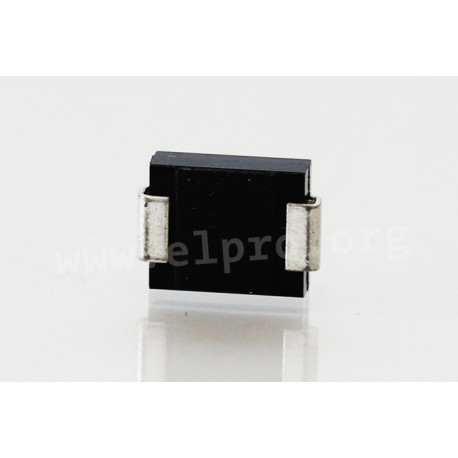

DO214AB/SMC

S 8 MC SMD

44908 S 8 MC SMD S8MC S8MC Taiwan Semiconductor rectifier diode series S8 and S15. SMD Si rectifier diodes comply with UL94V-0 in a DO214AB/SMC housing solderable according to JESD22-B102 glasspassivated  forward current: 8 to 15A

Specifications

manufacturer
Manufacturer's name S8MC
Case DO214AB/SMC
Operating temperature range [°C] -55...+150
(Max.) peak recurrent reverse voltage [V] 1000
Forward voltage [V] 0,985
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 8
Data Sheet

Unit price

0,16 €

Stock: 4800
Further delivery:
CW 28/2024

Minimum order quantity 100 units or
multiples of 100.
