SF 34

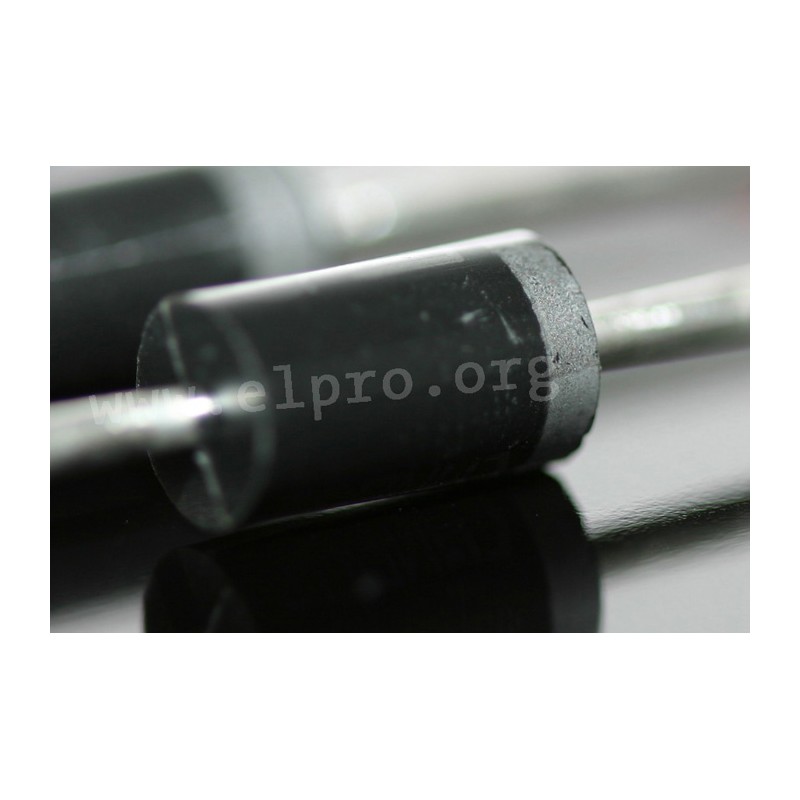

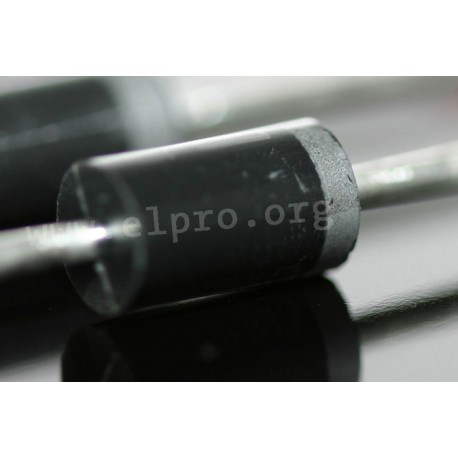

Taiwan Semiconductor rectifier diode series SF

  • super fast rectifier diodes
  • in a DO201AD housing
  • comply with UL94V-0
  • glass passivated
  • solderability: 250°C/10s
  • forward current: 3A
  • taped

SF 34

595 SF 34 SF34G-A SF34G-A Taiwan Semiconductor rectifier diode series SF. super fast rectifier diodes in a DO201AD housing comply with UL94V-0 glass passivated solderability: 250°C/10s forward current: 3A taped

Specifications

manufacturer
Manufacturer's name SF34G-A

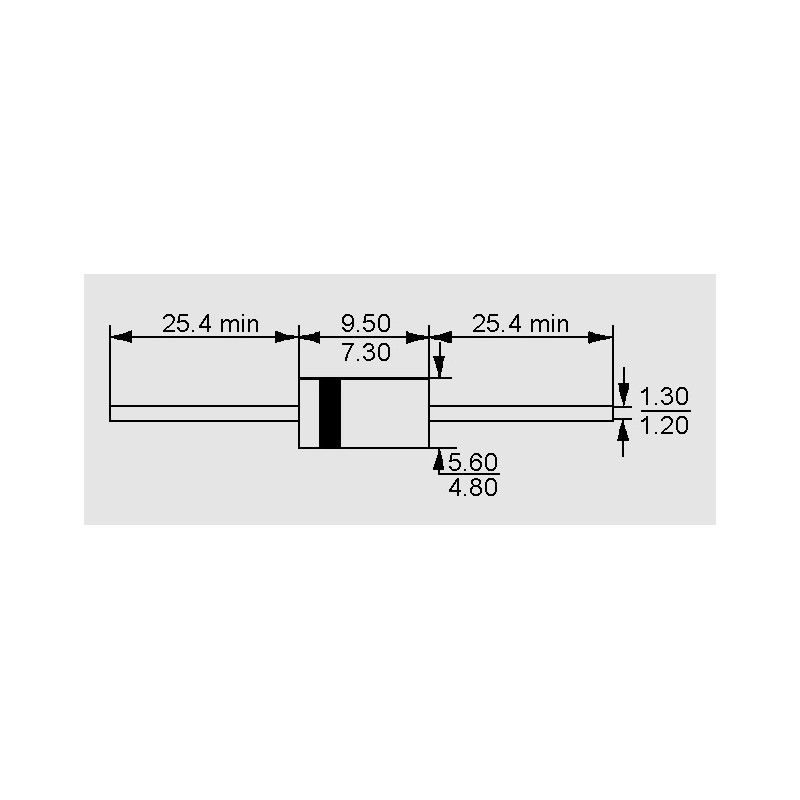

Case DO201AD
Peak forward surge current [A] 125
Max. reverse recovery time [ns] 35
(Max.) peak recurrent reverse voltage [V] 200
Forward voltage [V] 0,95
Reverse current [µA] 5
(Max.) average forward (rectified) current [A] 3
Data Sheet

Unit price

0,168 €

Stock: 5915
Further delivery:
CW 17/2025

Minimum order quantity 1 to 15 units or multiples of 25 plus 0 to 15 .
