SF 36

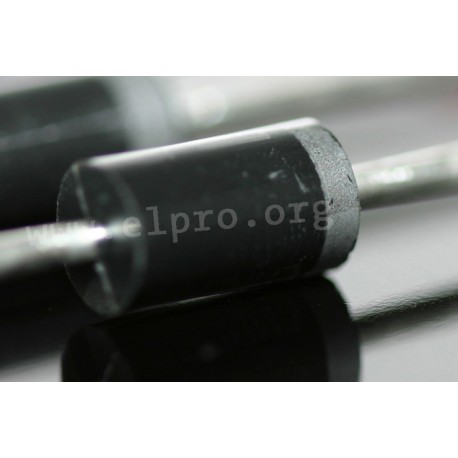

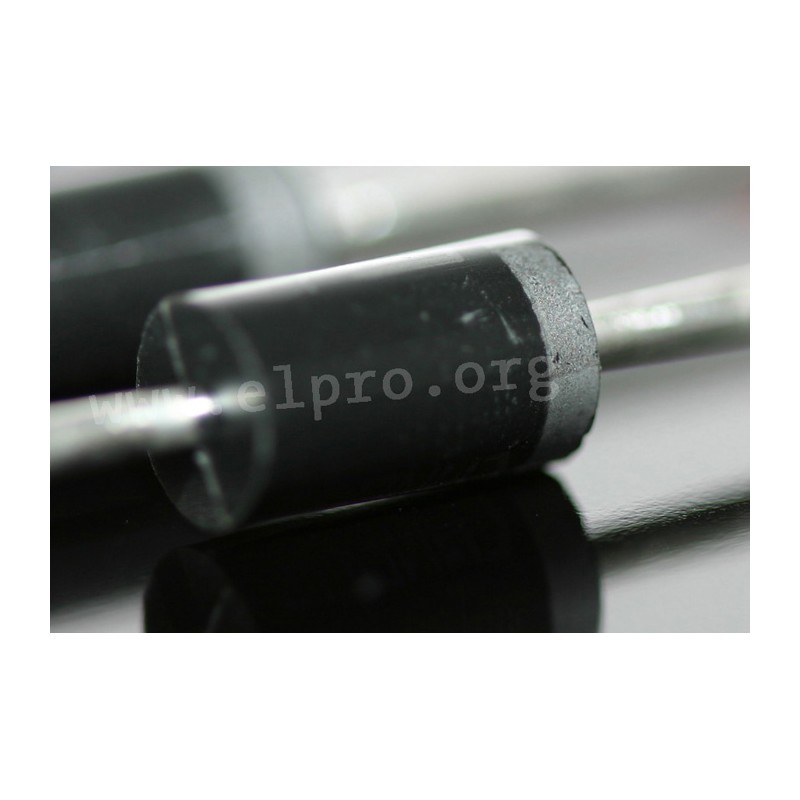

Taiwan Semiconductor rectifier diode series SF

  • super fast rectifier diodes
  • in a DO201AD housing
  • comply with UL94V-0
  • glass passivated
  • solderability: 250°C/10s
  • forward current: 3A
  • taped

SF 36

596 SF 36 SF36G R0 SF36G R0 Taiwan Semiconductor rectifier diode series SF. super fast rectifier diodes in a DO201AD housing comply with UL94V-0 glass passivated solderability: 250°C/10s forward current: 3A taped

Data sheet

manufacturer
manufacturer's name SF36G R0

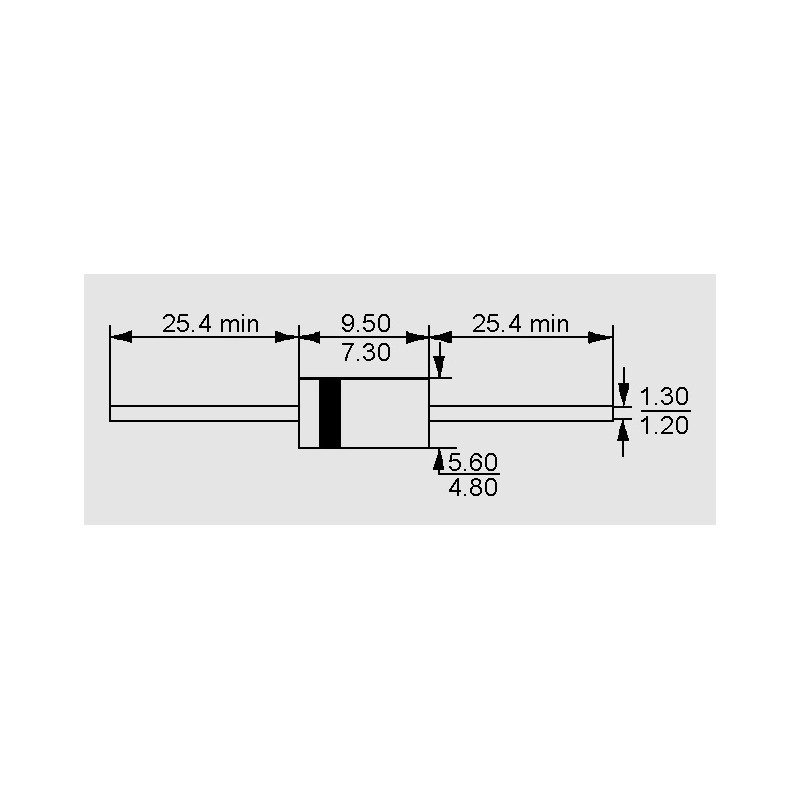

case DO201AD
peak forward surge current [A] 125
max. reverse recovery time [ns] 35
(max.) peak recurrent reverse voltage [V] 400
forward voltage [V] 1,3
reverse current [µA] 5
(max.) average forward (rectified) current [A] 3

Download

Data Sheet

1,37 €

Volume discounts

25 pcs. / 0,204 €

stock: 234
Next incoming:
CW:50/2021
1250 pieces
