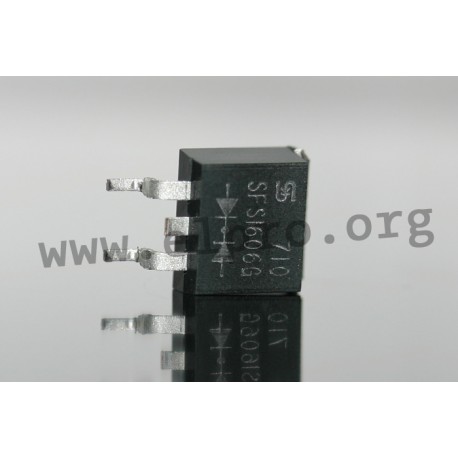

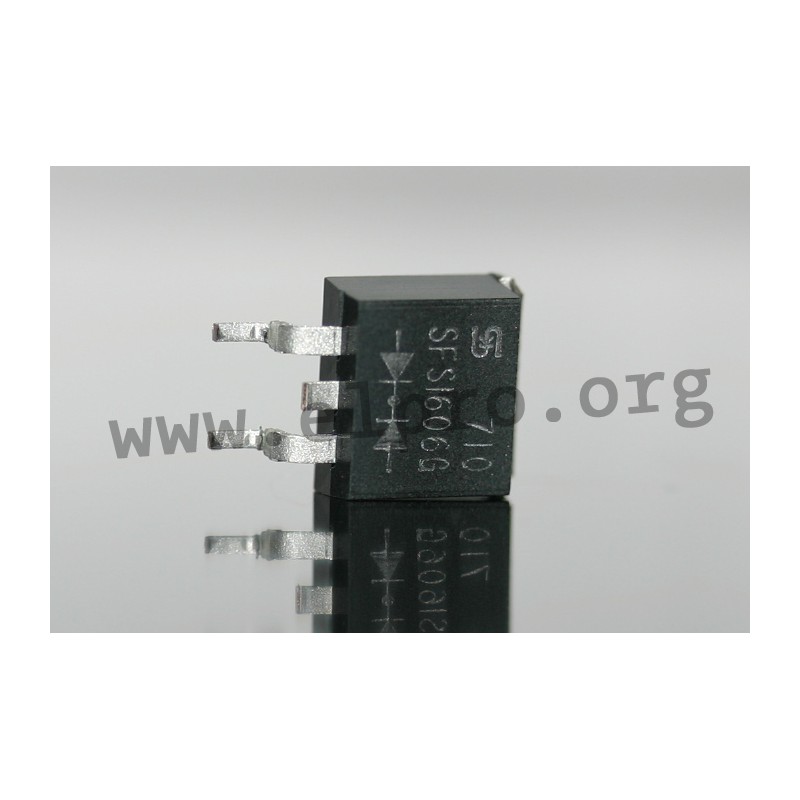

SFS 1606 G

Taiwan Semiconductor rectifier diode series SFS

Super fast SMD rectifier diodes in a D²Pak housing, glass passivated, and complying with UL94V-0. We offer various types of this Taiwan Semiconductor series.

  • forward current: 10A (SFS10_) or 16A (SFS16_)
SFS 1606 G

SFS 1606 G

25287 SFS 1606 G SFS1606G SFS1606G Taiwan Semiconductor rectifier diode series SFS. Super fast SMD rectifier diodes in a D²Pak housing, glass passivated, and complying with UL94V-0. We offer various types of this Taiwan Semiconductor series. forward current: 10A (SFS10_) or 16A (SFS16_)

Specifications

manufacturer
Manufacturer's name SFS1606G

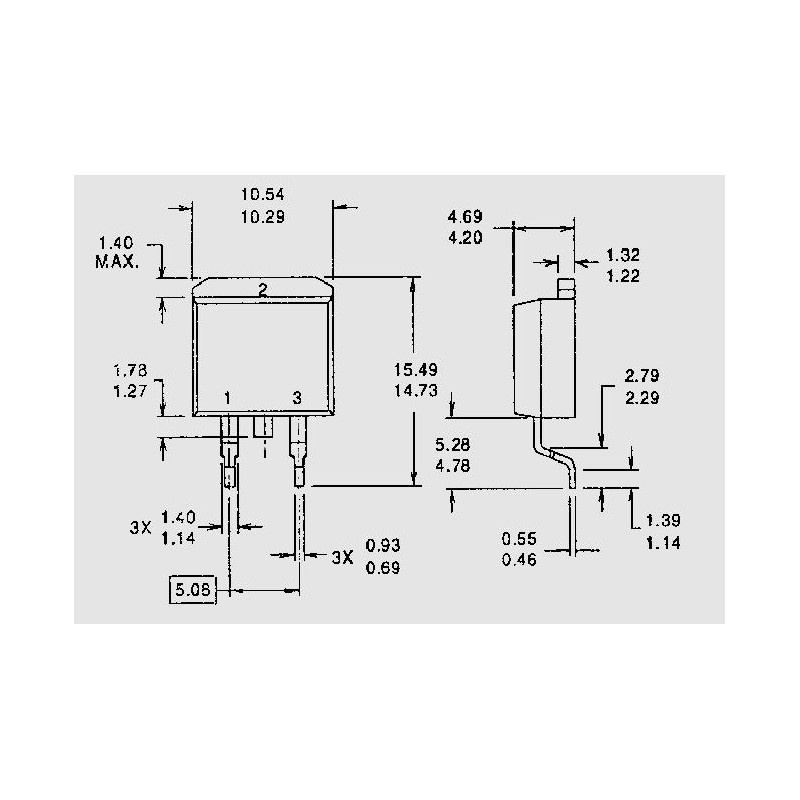

Case D²Pak
Peak forward surge current [A] 125
Max. reverse recovery time [ns] 35
(Max.) peak recurrent reverse voltage [V] 400
Forward voltage [V] 1,3
Reverse current [µA] 10
(Max.) average forward (rectified) current [A] 16
Data Sheet

Unit price

0,686 €

Stock: 742
Further delivery:
CW 12/2027

Minimum order quantity 1 to 17 units or multiples of 25 plus 0 to 17 .
