SFS 1608 G

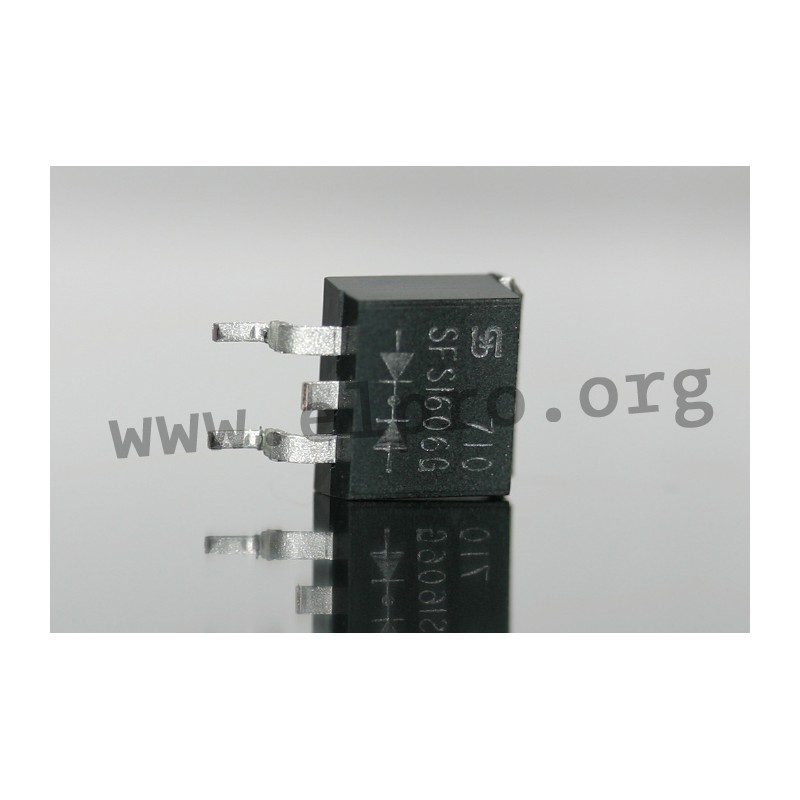

Taiwan Semiconductor rectifier diode series SFS

Super fast SMD rectifier diodes in a D²Pak housing, glass passivated, and complying with UL94V-0. We offer various types of this Taiwan Semiconductor series.

  • forward current: 10A (SFS10_) or 16A (SFS16_)

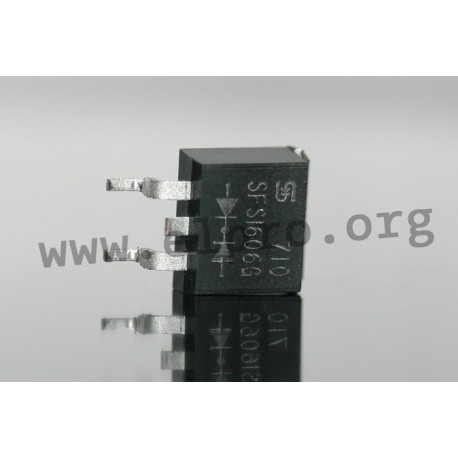

D²Pak

SFS 1608 G

25290 SFS 1608 G SFS1608G SFS1608G Taiwan Semiconductor rectifier diode series SFS. Super fast SMD rectifier diodes in a D²Pak housing, glass passivated, and complying with UL94V-0. We offer various types of this Taiwan Semiconductor series. forward current: 10A (SFS10_) or 16A (SFS16_)

Specifications

manufacturer
Manufacturer's name SFS1608G

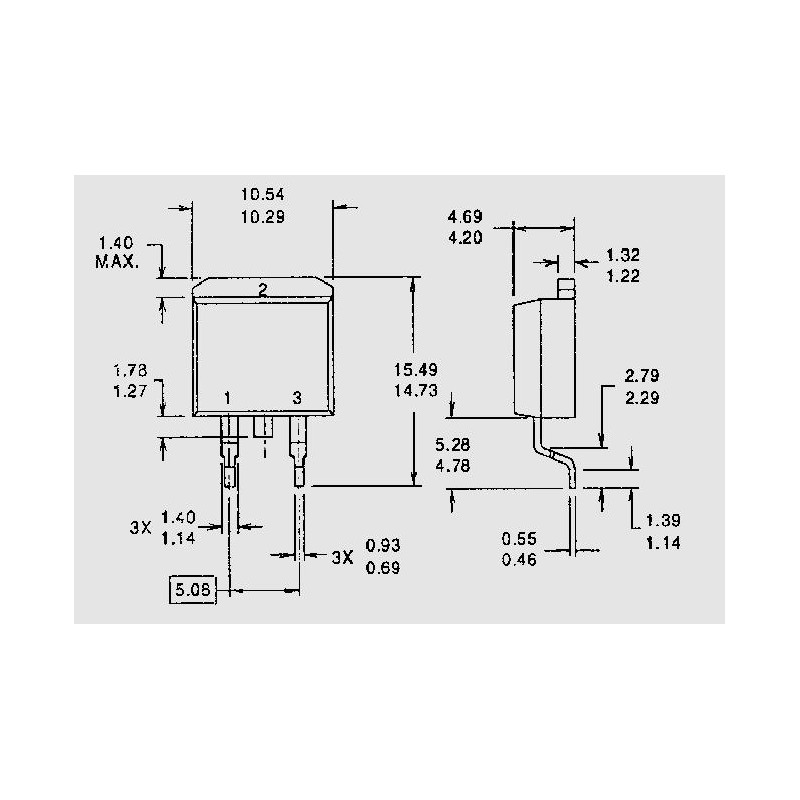

Case D²Pak
Peak forward surge current [A] 125
Max. reverse recovery time [ns] 35
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 1,7
(Max.) average forward (rectified) current [A] 16
Reverse current [µA] 10
Data Sheet

Unit price

0,701 €

Stock: 1310
Further delivery:
CW 12/2027

Minimum order quantity 1 to 10 units or multiples of 25 plus 0 to 10 .
