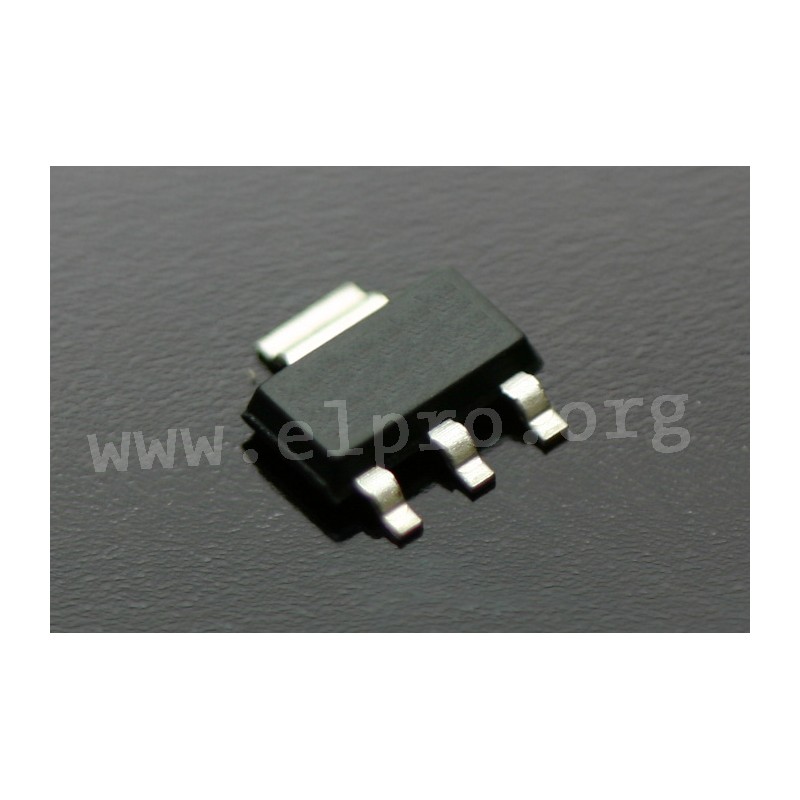

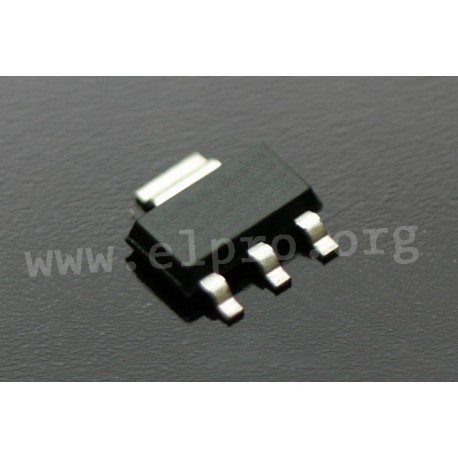

TSM 900 N 06 CW

Taiwan Semiconductor SMD MOSFET series TSM

  • TSC SMD power MOSFETs
  • in an SOT223 housing
  • N-Channel
  • taped

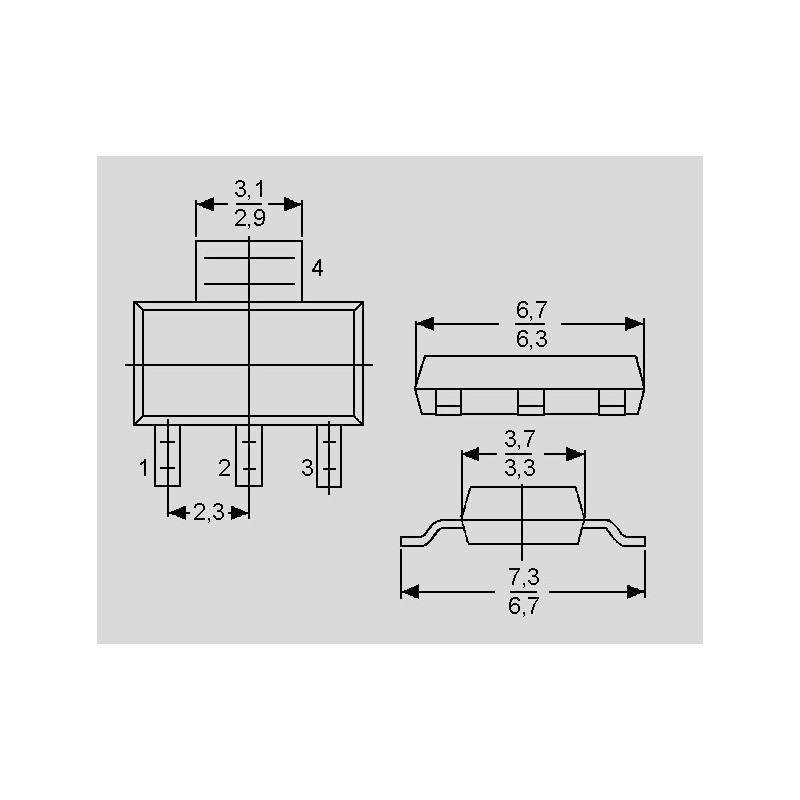

SOT223

TSM 900 N 06 CW

107462 TSM 900 N 06 CW TSM900N06CW RPG TSM900N06CW RPG Taiwan Semiconductor SMD MOSFET series TSM. TSC SMD power MOSFETs in an SOT223 housing N-Channel taped

Specifications

manufacturer
Manufacturer's name TSM900N06CW RPG
Case SOT223
Design taped
Max. drain-source voltage [V] 60
Max. drain-source on-resistance [Ω] 0,09
Turn-on delay time [ns] 2,9
Max. continuous drain current TC = 25°C [A] 11
Min. gate threshold voltage [V] 1,2
Turn-off delay time [ns] 18,4
Data Sheet

Unit price

0,168 €

Stock: 1175
Further delivery:
CW 43/2024

Minimum order quantity 25 units or
multiples of 25.
