UGS 5 J

SMD ultra fast rectifiere diodes 5A

* case: D²Pak
* low power loss
* leads solderable per MIL-STD-750, method 2026
* operating temperature range -55...+150°C
* series UGS5_ by Taiwan Semiconductor

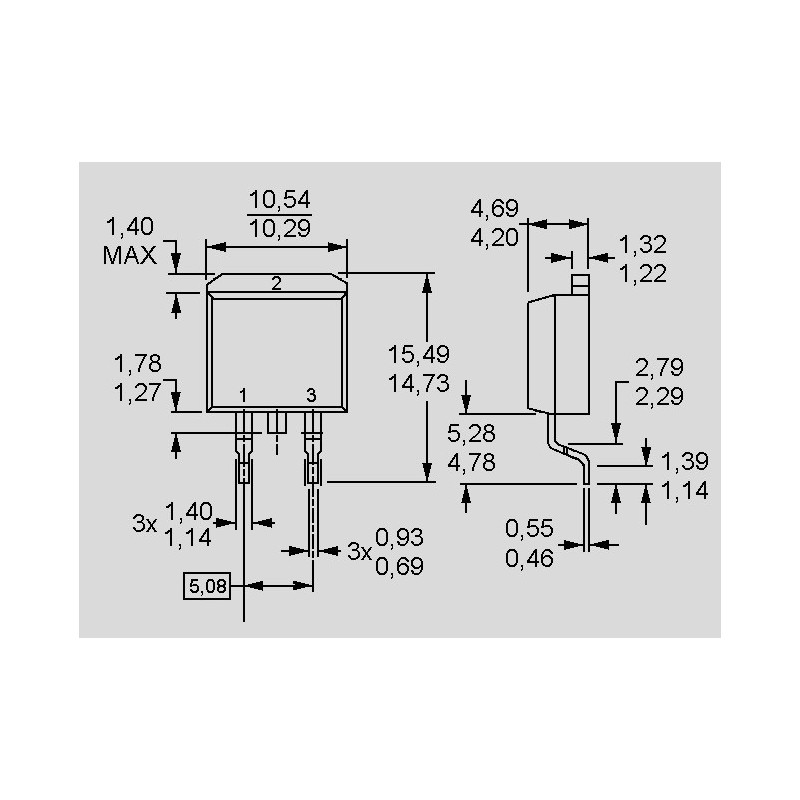

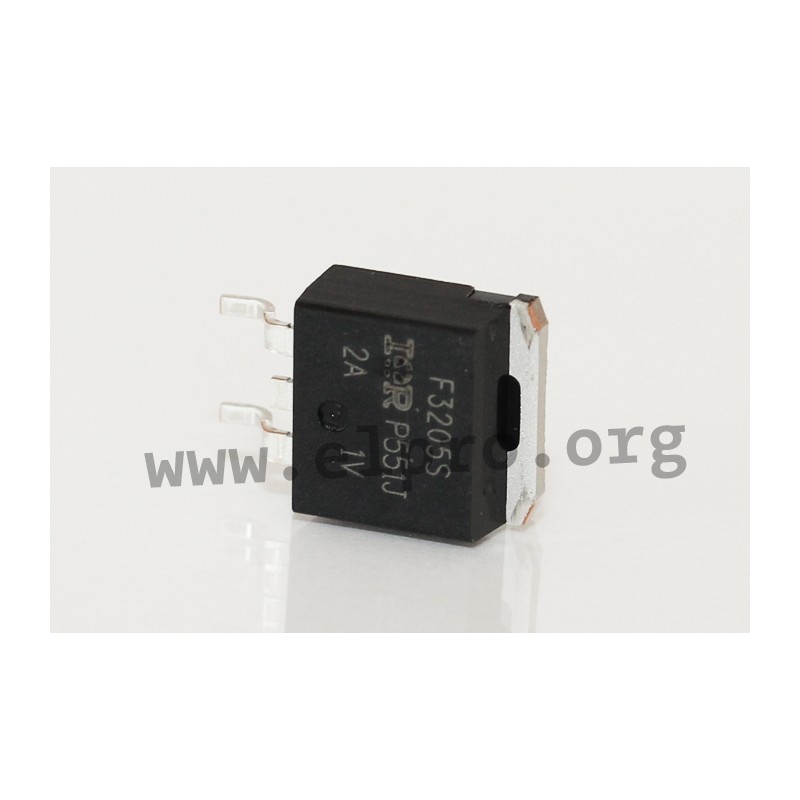

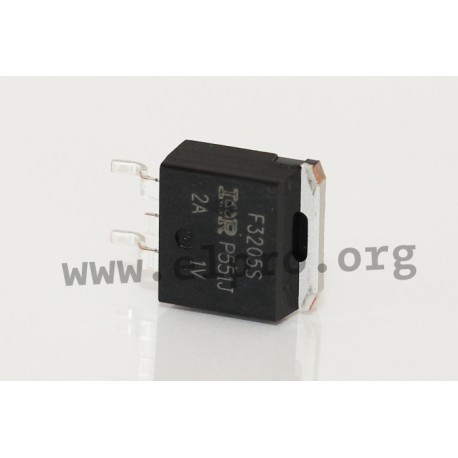

D²Pak

UGS 5 J

45644 UGS 5 J UGS5J UGS5J SMD ultra fast rectifiere diodes 5A. * case: D²Pak* low power loss* leads solderable per MIL-STD-750, method 2026* operating temperature range -55...+150°C* series UGS5_ by Taiwan Semiconductor

Specifications

manufacturer
Manufacturer's name UGS5J
Case D²Pak
Peak forward surge current [A] 65
Max. reverse recovery time [ns] 20
(Max.) peak recurrent reverse voltage [V] 600
Forward voltage [V] 2
Reverse current [µA] 20
(Max.) average forward (rectified) current [A] 5
Data Sheet

Unit price

0,363 €

Stock: 0
Further delivery:
CW 24/2026

Minimum order quantity 800 units or
multiples of 800.
