AS-100

current transformers for 20 to 200Hz

* for optimal PC board mounting
* fully potted
* centerhole for current-carrying line
* material flame-retardent according to UL94-V0
* manufactured in an ISO-9001 approved factory
* isolation voltage (prim./sec.): 2500V AC
* mains frequency: 20kHZ...200kHz
* temperature range: -40...+120°C

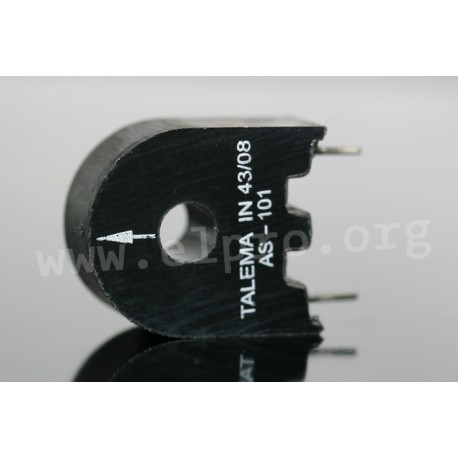

AS-10_

AS-100

33905 AS-100 AS-100 current transformers for 20 to 200Hz. * for optimal PC board mounting* fully potted* centerhole for current-carrying line* material flame-retardent according to UL94-V0* manufactured in an ISO-9001 approved factory* isolation voltage (prim./sec.): 2500V AC* mains frequency: 20kHZ...200kHz* temperature range: -40...+120°C

Specifications

manufacturer
Manufacturer's name AS-100
Winding inductance at 10kHz and 10mV [mH] 6
Turns ratio [A] 1 50
Terminating resistance [Ω] 50
RL [Ω] x Isek [mA] 1/2F [Hz] [V] 175
RL [Ω] x Isek [mA] 1/2F [Hz] 175
Winding resistance [Ω] 0,6
Secondary current [A] 300
Data Sheet

Unit price

1,50 €

Stock: 445
Next incoming goods:
CW 05/2026
500 units

Further delivery:
CW 28/2026

Minimum order quantity 5 units or
multiples of 5.
